In this guide you will learn how to maintain the blood pressure monitor.
2 min task
What
Nobi integrates with the blood pressure monitor to simplify health tracking. When a resident takes a measurement, the data is sent directly via Bluetooth to the Nobi Smart Light. The light reads the values aloud and displays them on the dashboard. The monitor is compact, easy to use, and designed for everyday care routines.
Why
Regular maintenance of the blood pressure monitor is important to ensure accurate readings, reliable data transfer to the Nobi system, and continued safety for residents using the device.
Detailed steps

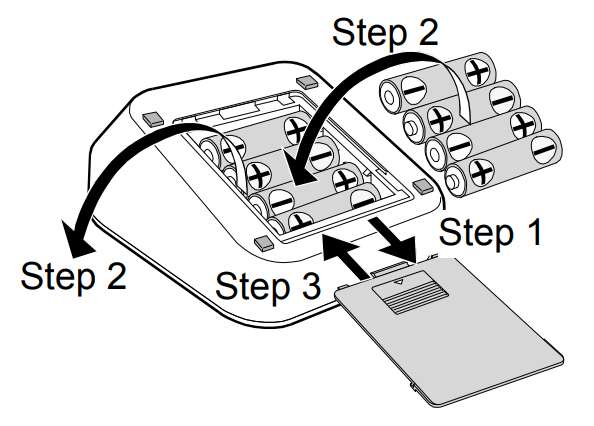

Changing the batteries in the blood pressure monitor.
Remove the battery cover.
Remove the used batteries and insert new batteries into the battery compartment as shown, taking care that the polarities (+) and (-) are correct.
Replace the battery cover. Use only LR6, R6P or AA batteries.
Further tips for maintenance:
When (LOW BATTERY mark) blinks in the display, replace all batteries with new ones.
Do not mix old and new batteries. It may shorten the battery life, or cause the device to malfunction. Replace the batteries two seconds or more after the device turns off.
If (LOW BATTERY mark) appears even after the batteries are replaced, make a blood pressure measurement. The device may then recognize the new batteries. (LOW BATTERY mark) does not appear when the batteries are drained. The battery life varies with the ambient temperature and may be shorter at low temperatures. Generally, four new LR6 batteries will last approximately for one year when used twice for measurement each day.
Use the specified batteries only. The batteries provided with the device are for testing monitor performance and may have a limited life.
Remove the batteries if the device is not to be used for a long time. The batteries may leak and cause a malfunction.
Do not open the device. It uses delicate electrical components and an intricate air unit that could be damaged.
The blood pressure monitor was designed and manufactured for a long service life. However it is generally recommended to have the device inspected every 2 years, to ensure proper functioning and accuracy.
If you would like more information of the blood pressure monitor and how it works with Nobi, visit our discover page here.
To learn how to pair the blood pressure monitor, visit our guide here.
