In this article, we'll walk you through how to pair the wired switch interface relay for the Control Light function, to the Nobi Smart Light.
4 min task
What
A wired switch interface relay is a smart module that connects to a physical light switch. It allows a traditional switch to control the Nobi Smart Light while still providing constant electricity to Nobi. The wired switch interface relay lets you control additional devices in combination with the Nobi Smart Light. For example, it can switch a second light on and off at the same time as the Nobi light or activate together with Nobi’s night lighting.
For a detailed description of other peripherals, go to our Types of peripherals page.
Why
Pairing the wired switch interface relay ensures that the physical switch is correctly linked to the Nobi light. Once connected, residents or care staff can continue using the wall switch to turn the light on or off — no need to change daily habits.
A wired switch interface relay acts as a smart bridge between traditional switches and smart lighting systems. It must be paired to the correct light via the Nobi mobile app before it can function properly.
Pair via the Nobi mobile app
Pairing the wired switch interface is done through the Nobi mobile app. Pairing is easy. Just follow the wizard to complete the connection. The button should be physically near the light during the process.
Adding a peripheral to a Jack & Jill Housing unit? Please refer to our Jack & Jill page.
Pairing the wired switch interface (mains) instead? Consult the guide for pairing it here.
Detailed steps
Follow the steps below to pair the Control Light Button - Nobi Button (self-powered) with the Nobi Smart Light.

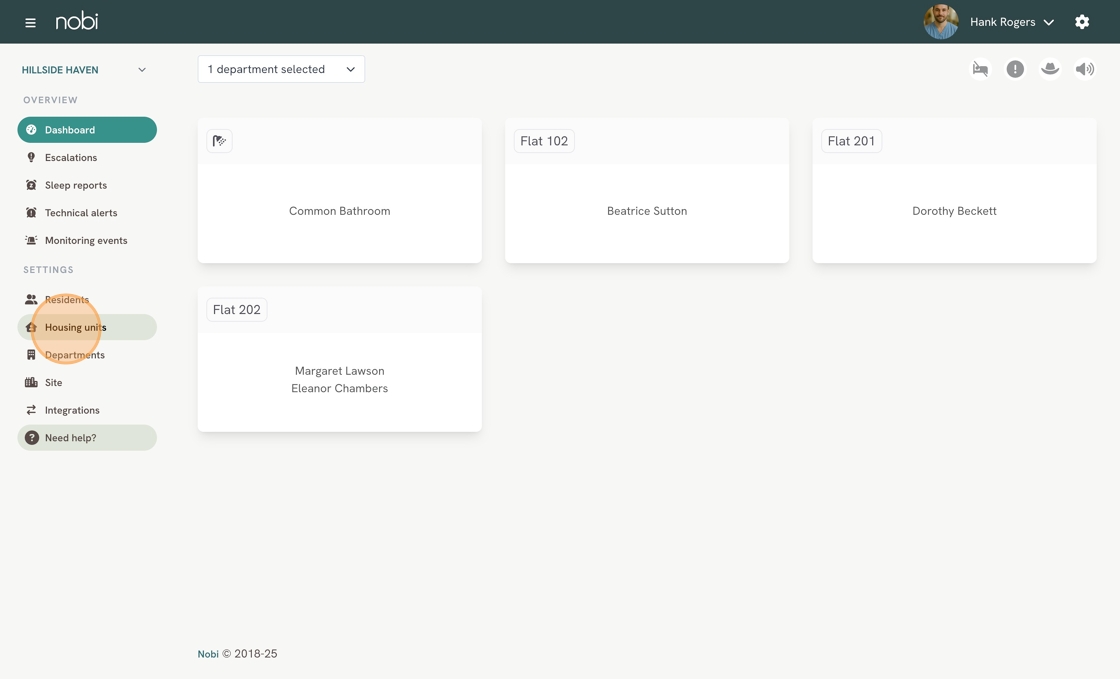

- Go to Housing units in the left menu.

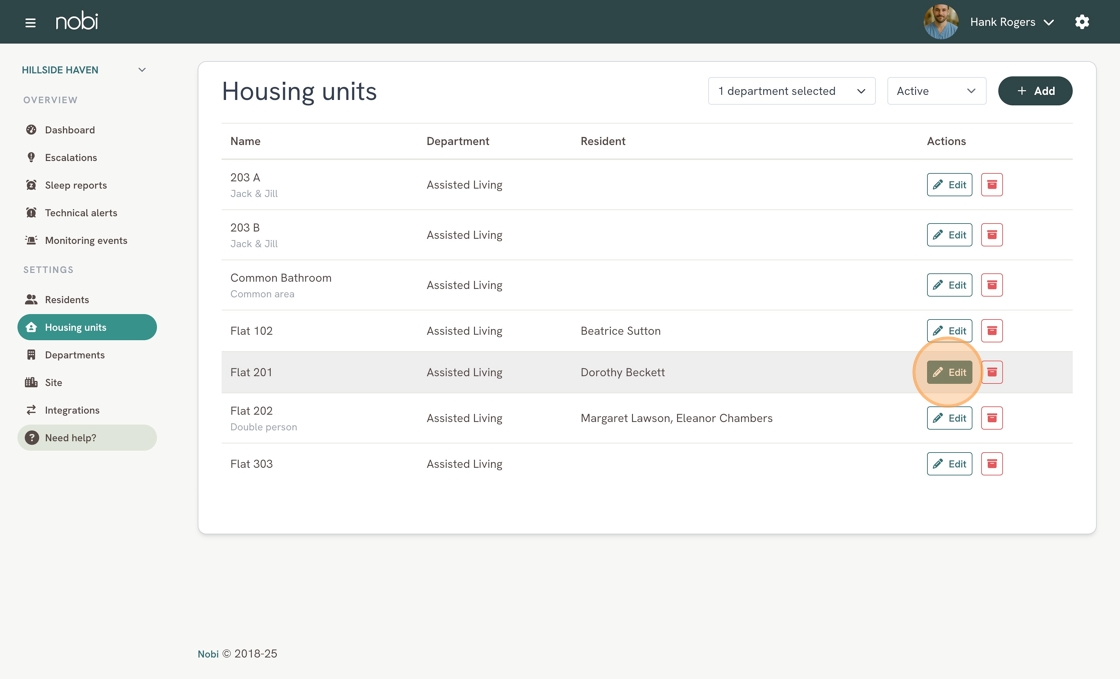

- Navigate to the housing unit where you want to add a peripheral and click edit.

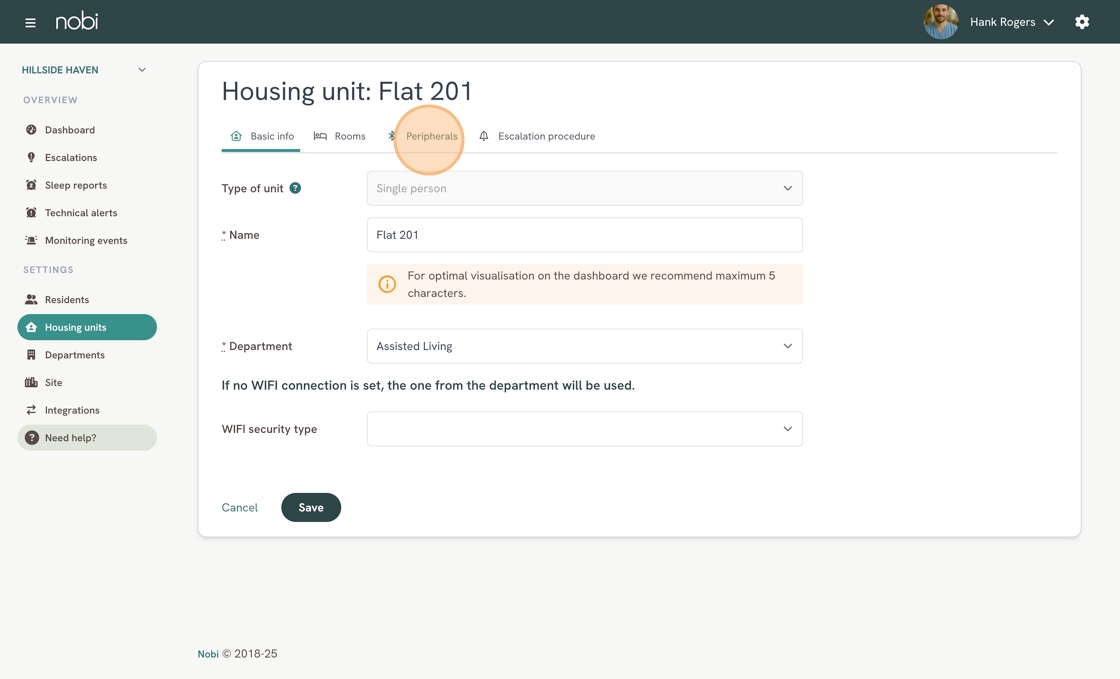

- Go to the tab Peripherals.

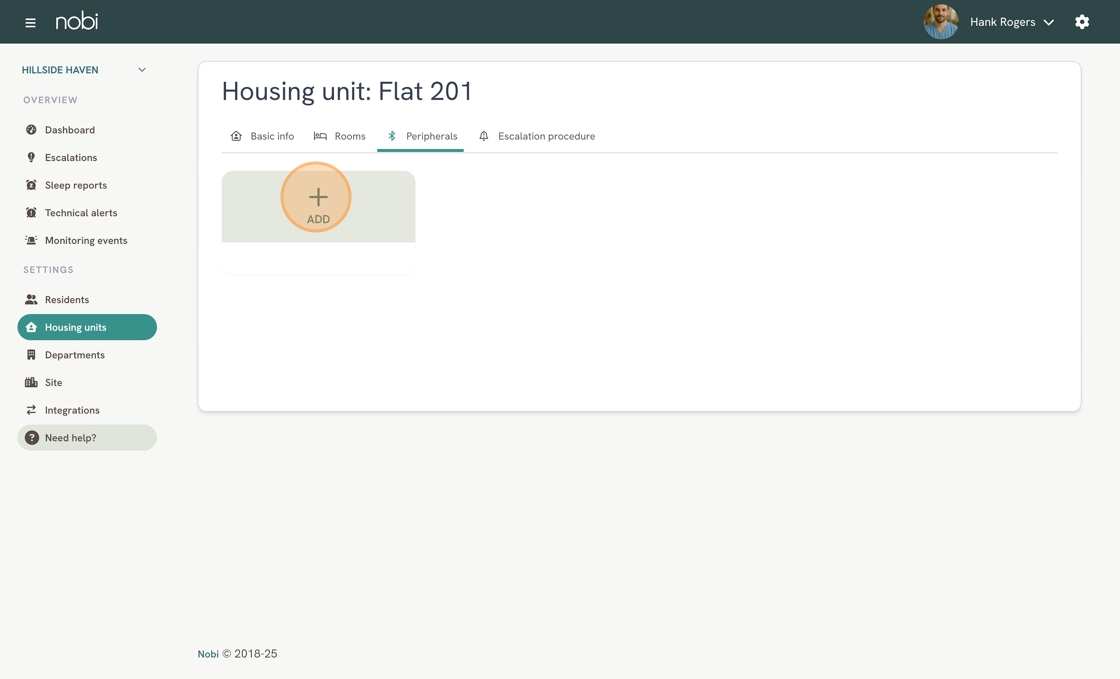

- Click on the + add.
- A wizard will open which takes you through following steps.

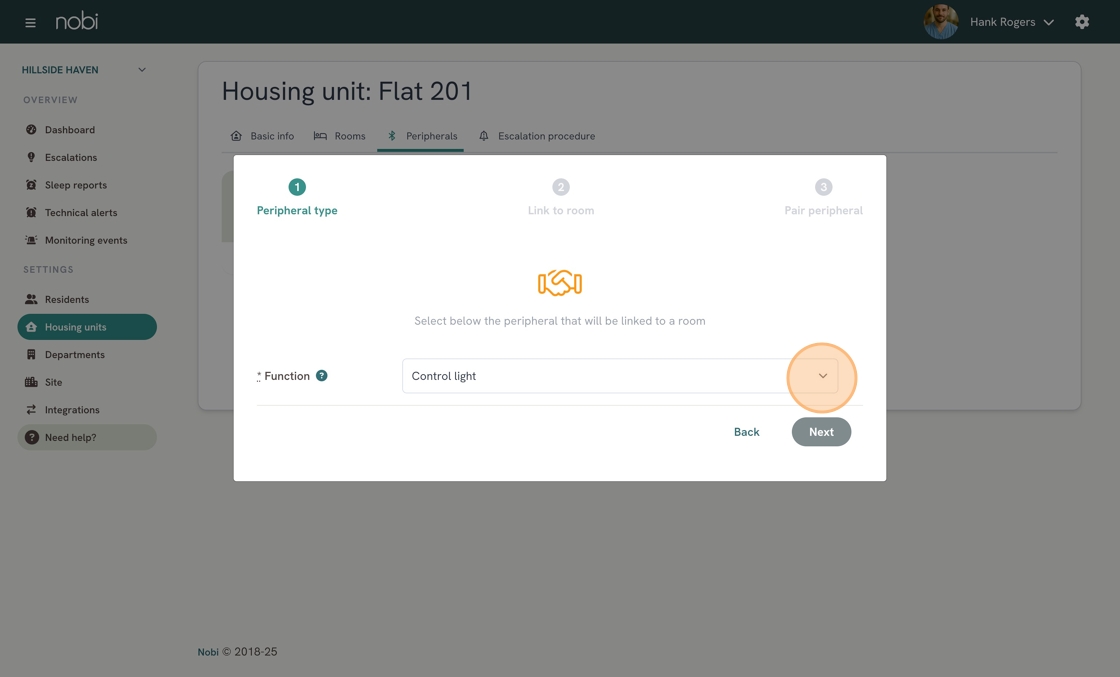

- Choose the function you want the peripheral to have. To pair the wired switch interface relay, choose Control light

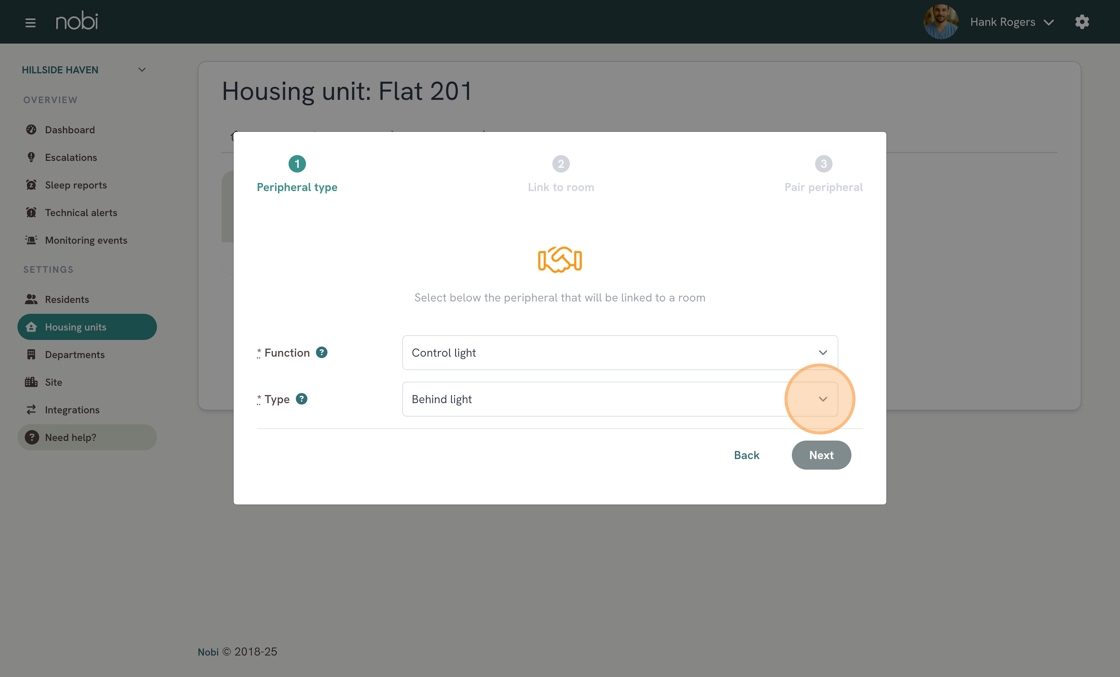

- Choose the type. For the Nobi Button (self-powered) choose Behind light.

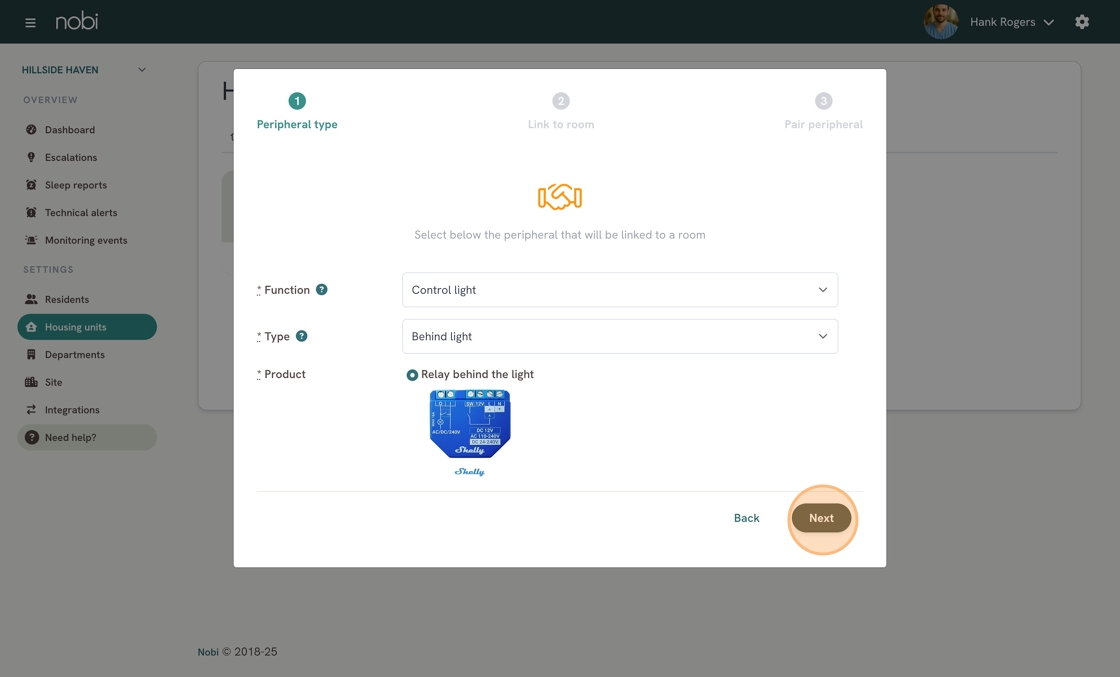

- You will now have the option to choose the product you want. In this case there is only one option and so it’s already selected: Relay behind the light. Click next to go to the next step in the wizard.

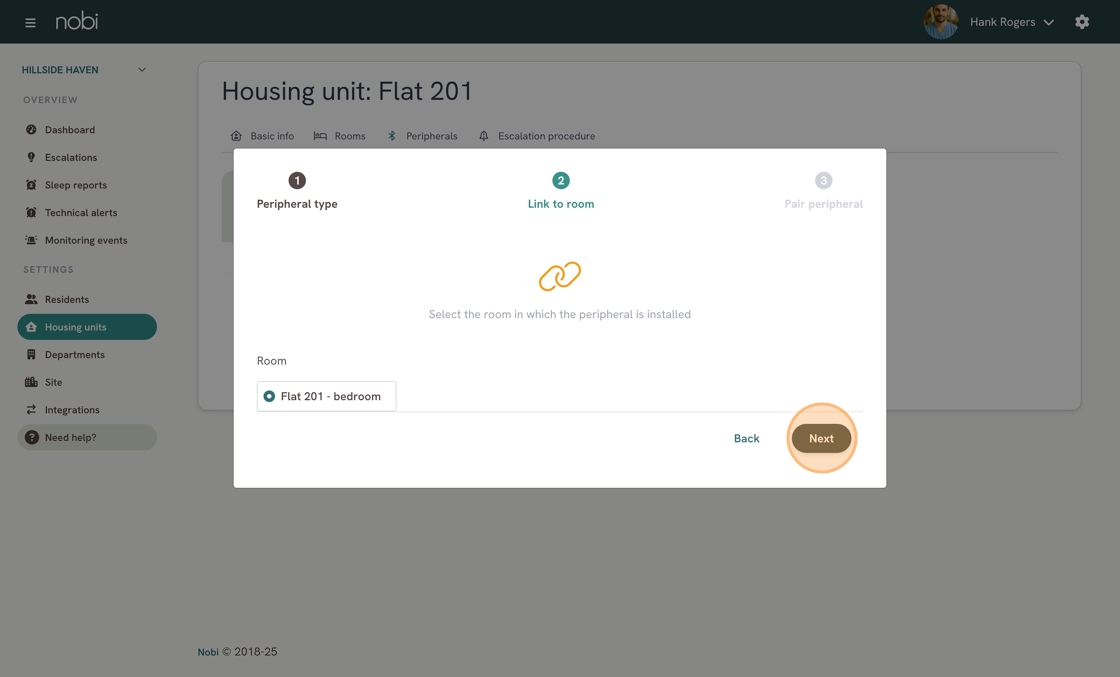

- Link to a room: Choose the room within the housing unit which is the closest to the peripheral you want to add. The light will flash when you click on the room in the app. Click next to go to the last step.

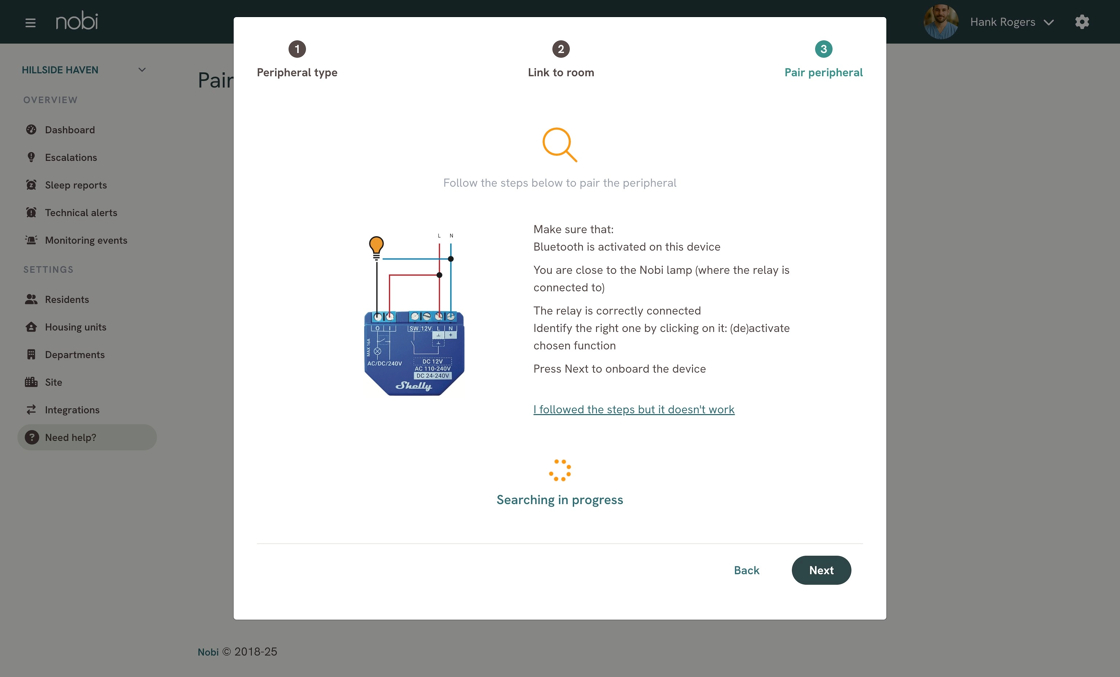

- Nobi will now provide the instructions to pair the peripheral. Follow the instructions on the screen.
- When pairing (and calibrating) is successful, you will return to the peripherals tab with the new peripheral added to the view. At the top of the screen, Nobi will display that the pairing is successfully completed.
You have now successfully paired the wired switch interface relay to Nobi.
