In this article, we'll walk you through how to pair the Control Light Button - Wireless Push Button (battery) to the Nobi Smart Light.
4 min task
What
This battery-powered Nobi button lets residents or care staff control the Nobi light just like a traditional light switch. Just press once to turn the light on or off.
For a detailed description of other peripherals, go to our Types of peripherals page.
Why
Pairing the battery-powered button to the right light ensures that, once paired, residents then have a simple way to turn that light on or off. A peripheral, in this case the Control Light Button - Wireless Push Button (battery), must first be paired via the Nobi light in order to function properly.
Pair via the Nobi mobile app
Pairing the Wireless Push Button (battery) is done through the Nobi mobile app. Pairing is easy. Just follow the wizard to complete the connection. The button should be physically near the light during the process.
Adding a peripheral to a Jack & Jill Housing unit? Please refer to our Jack & Jill page.
Pairing the Nobi Button (self-powered) instead? Visit our guide on how to pair the Control Light Button - Nobi Button (self-powered) here.
Detailed steps
Follow the steps below to pair the Control Light Button - Wireless Push Button (battery) with Nobi Smart Light.

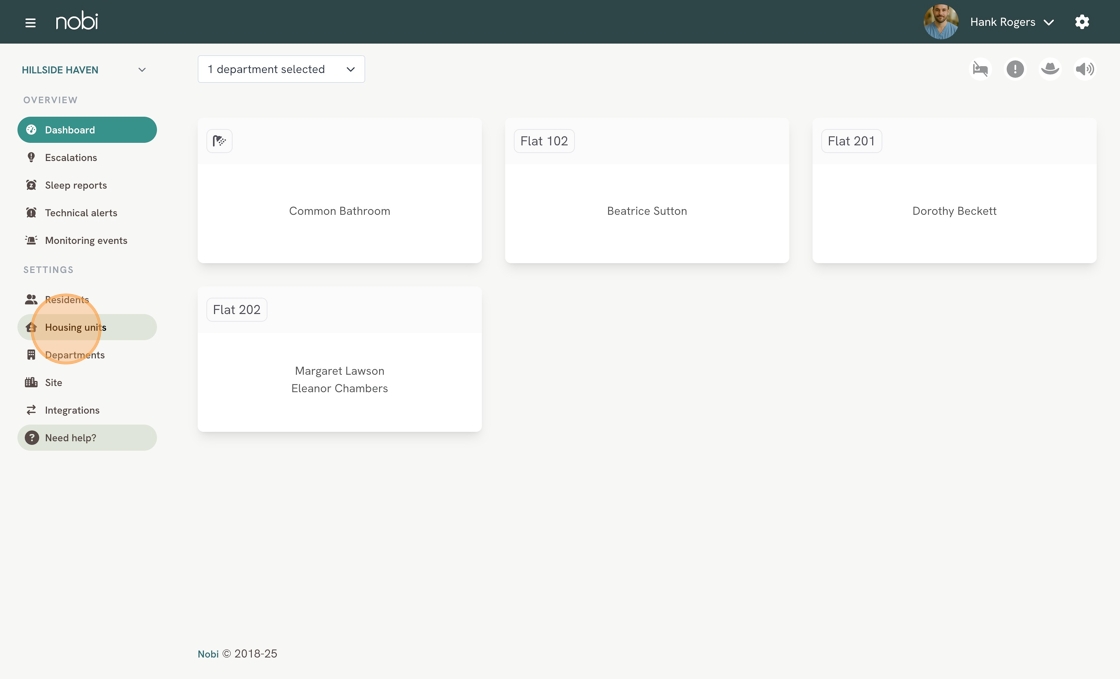

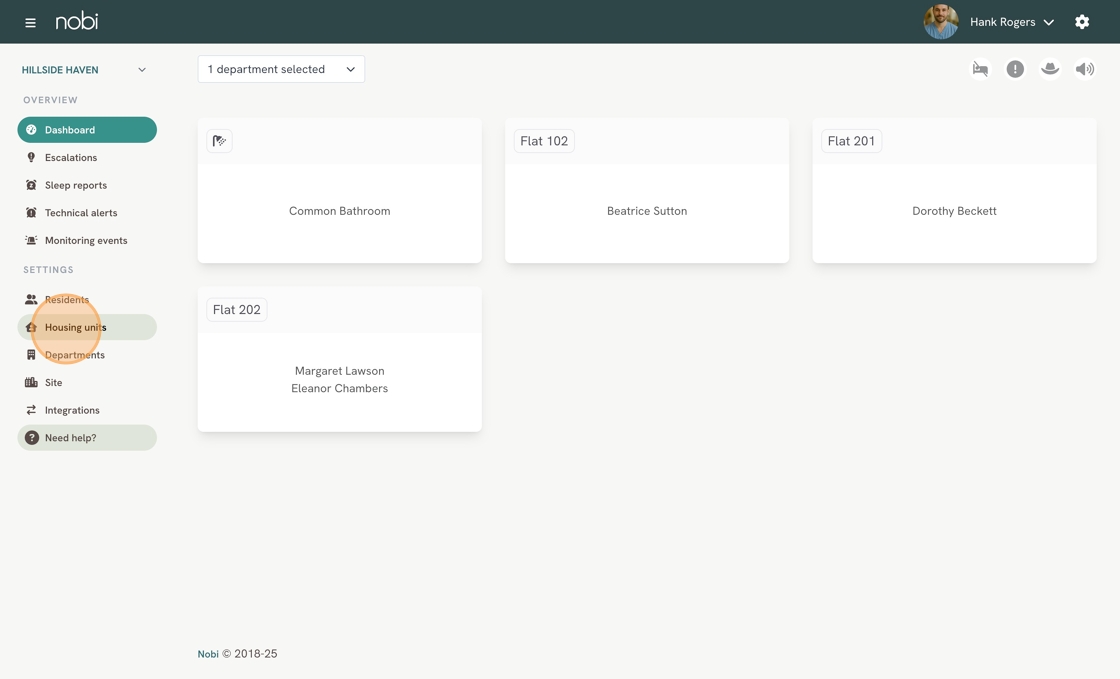

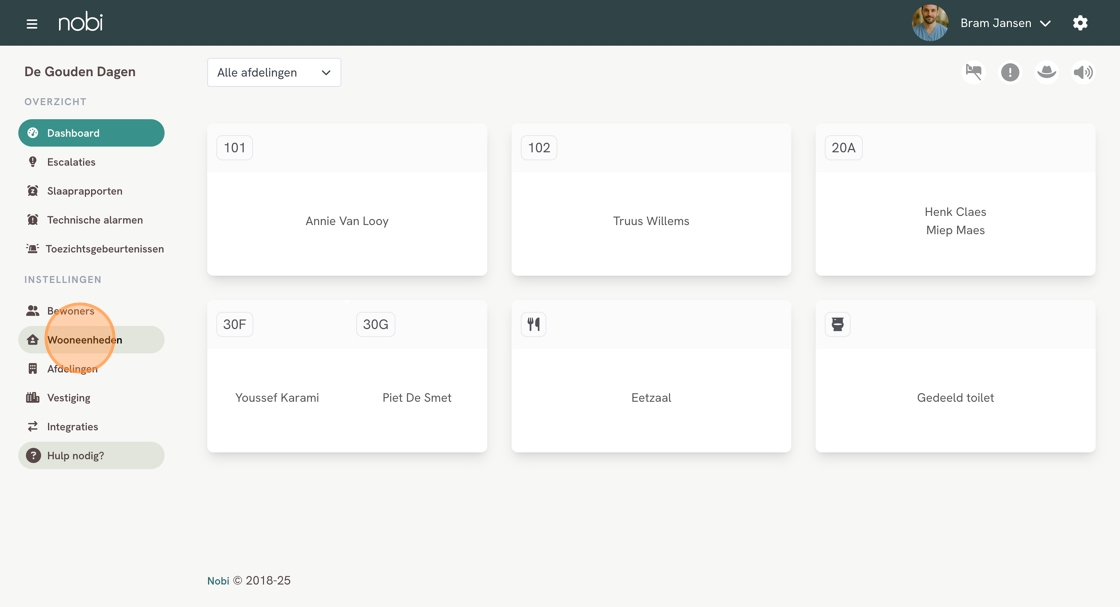

- Go to Housing units in the left menu.

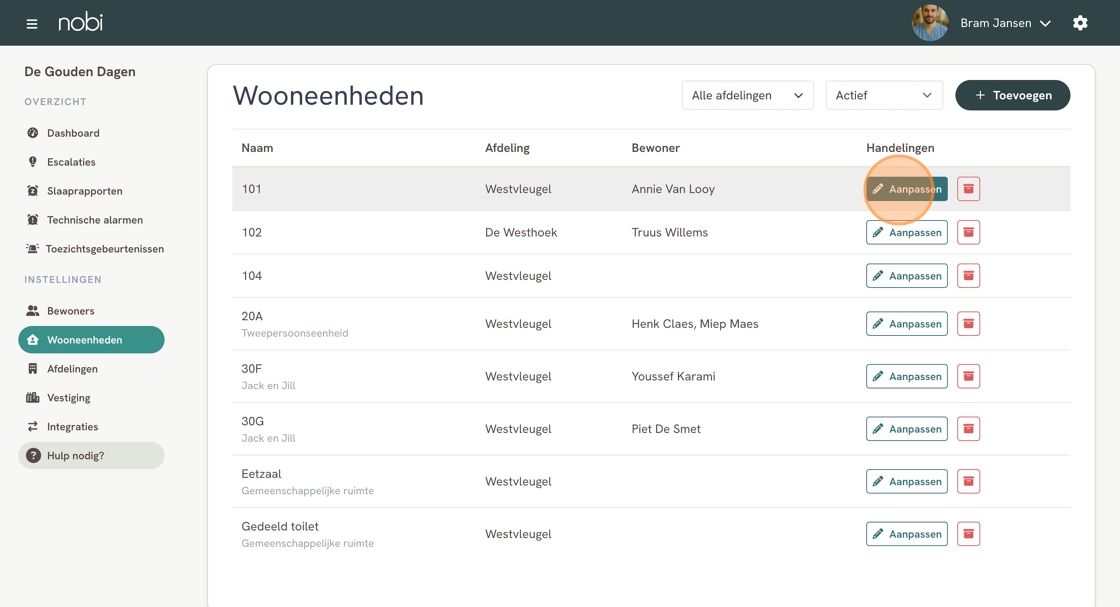

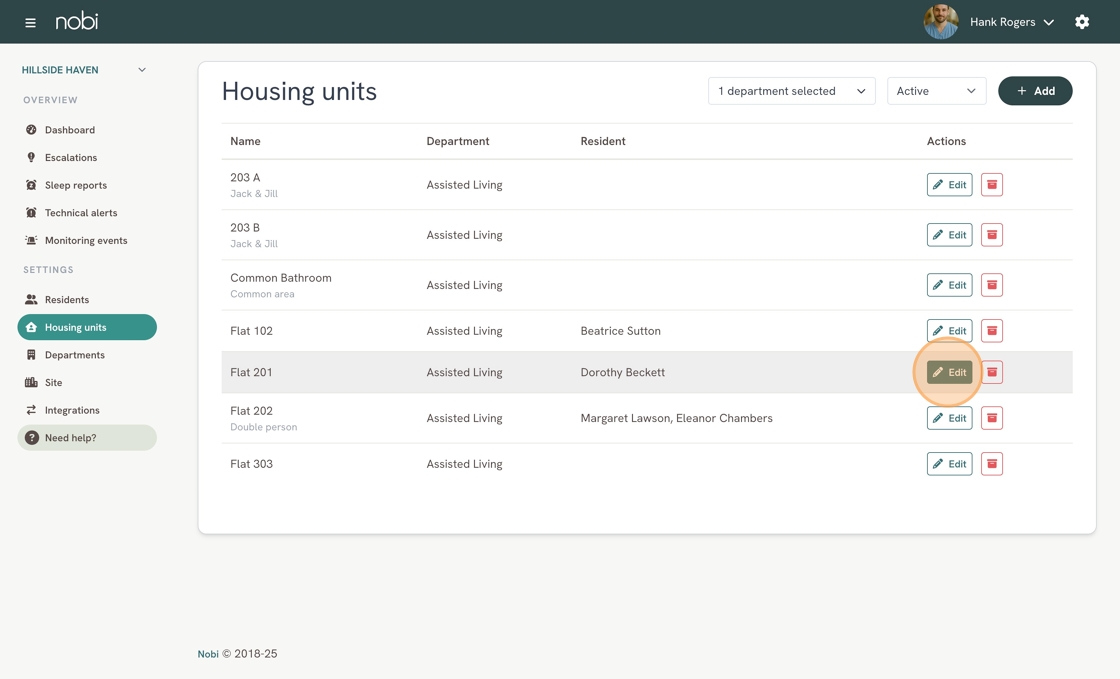

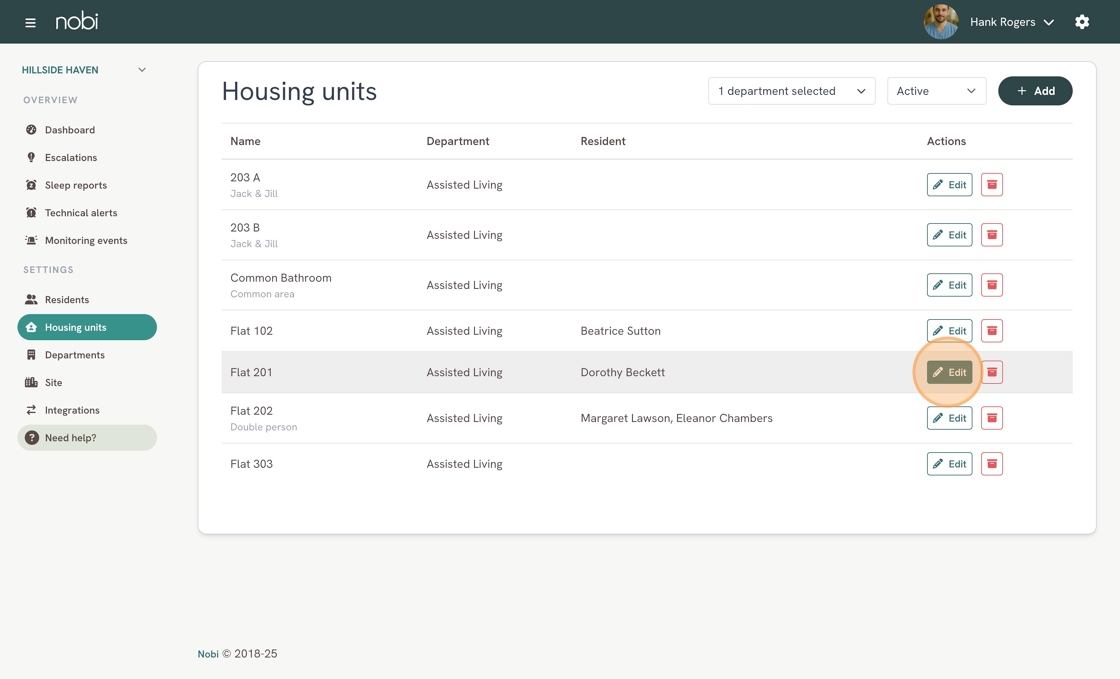

- Navigate to the housing unit where you want to add a peripheral and click edit.

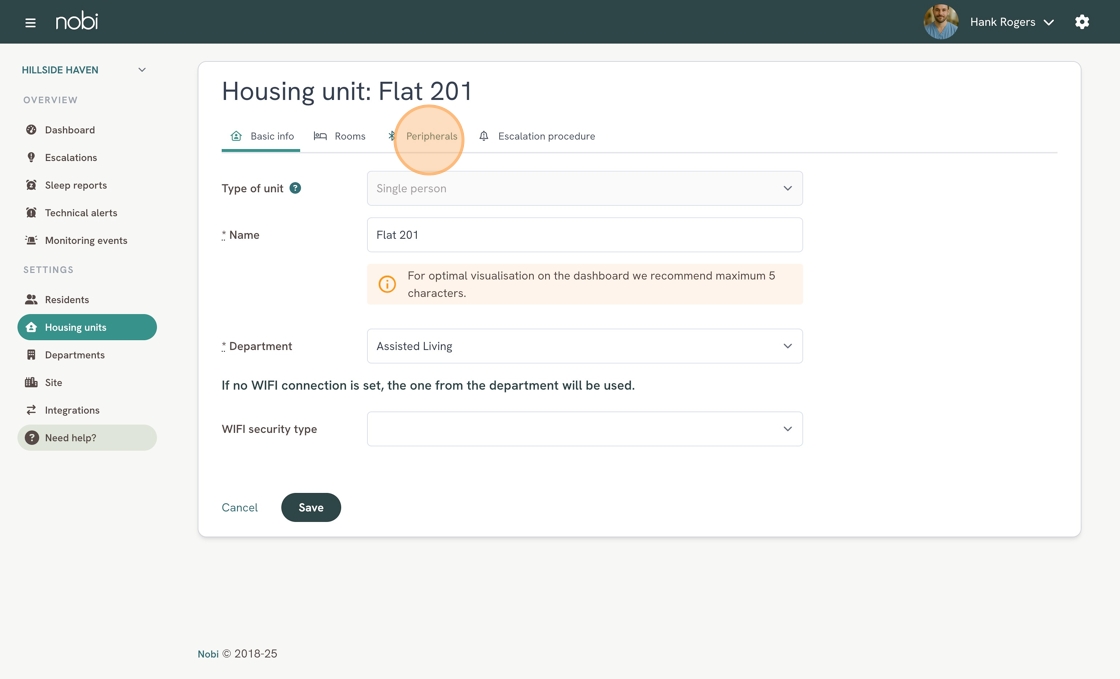

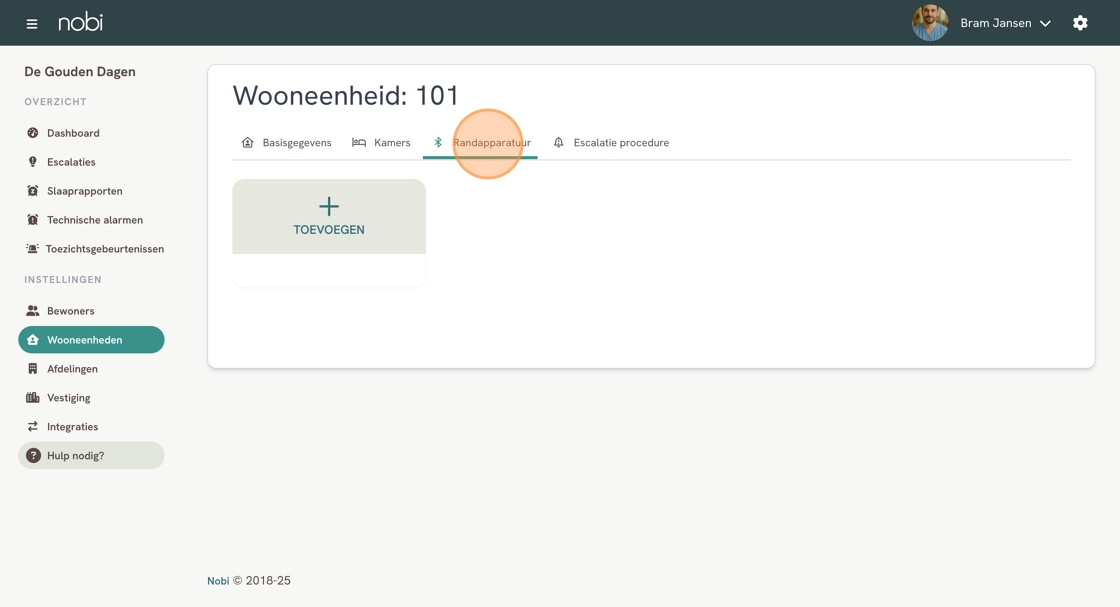

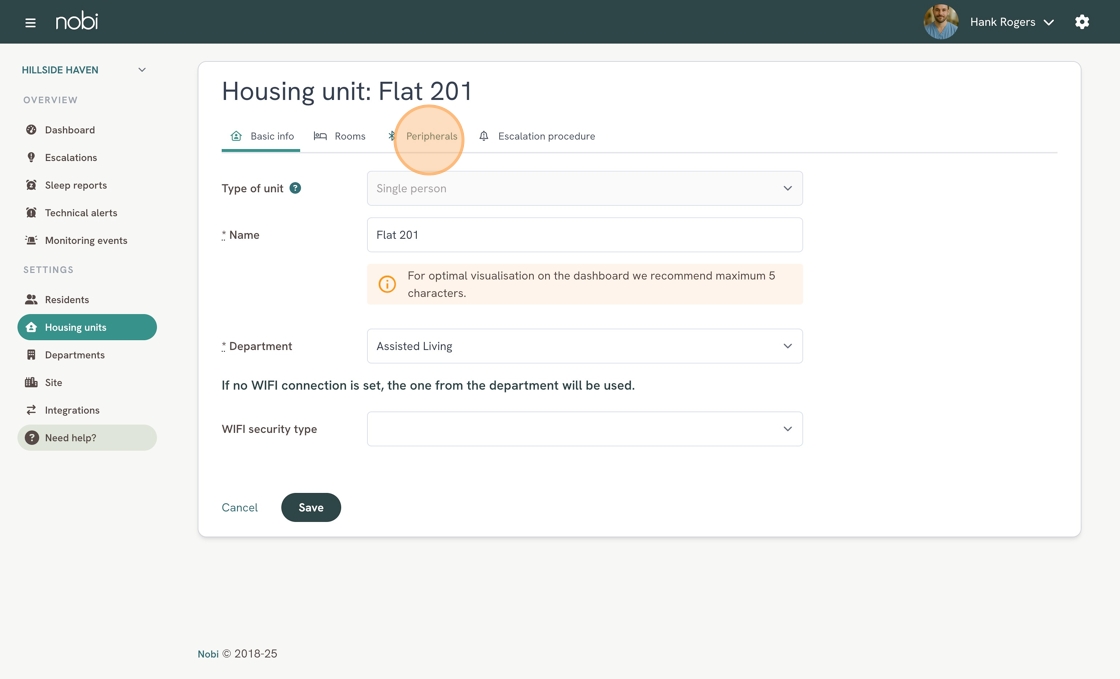

- Go to the tab Peripherals.

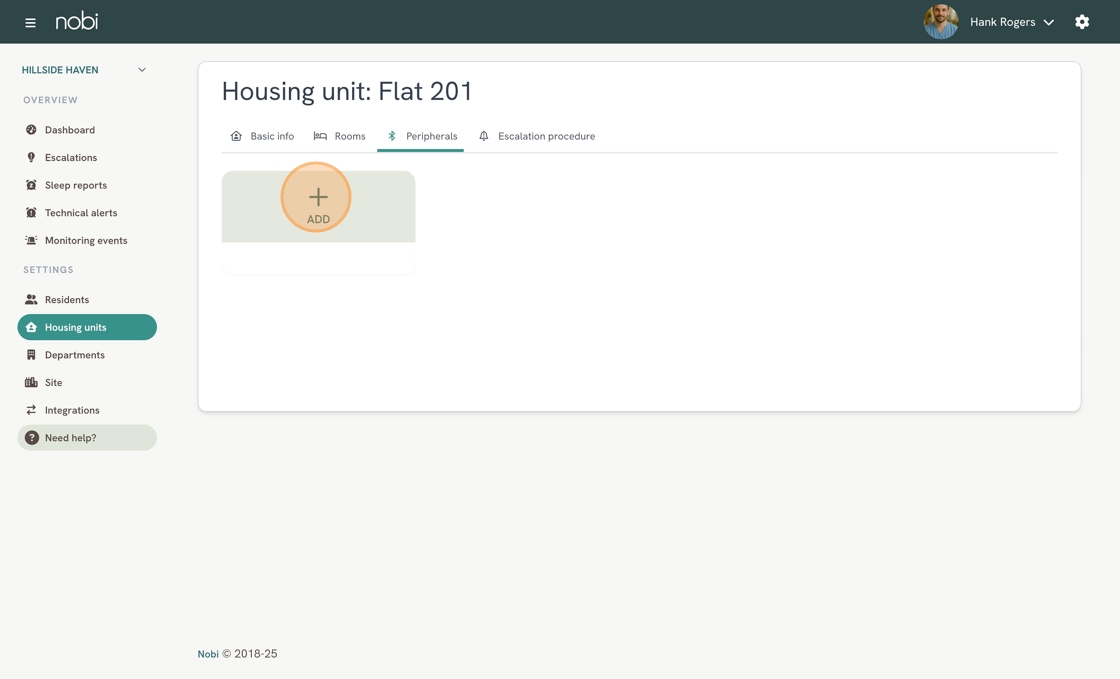

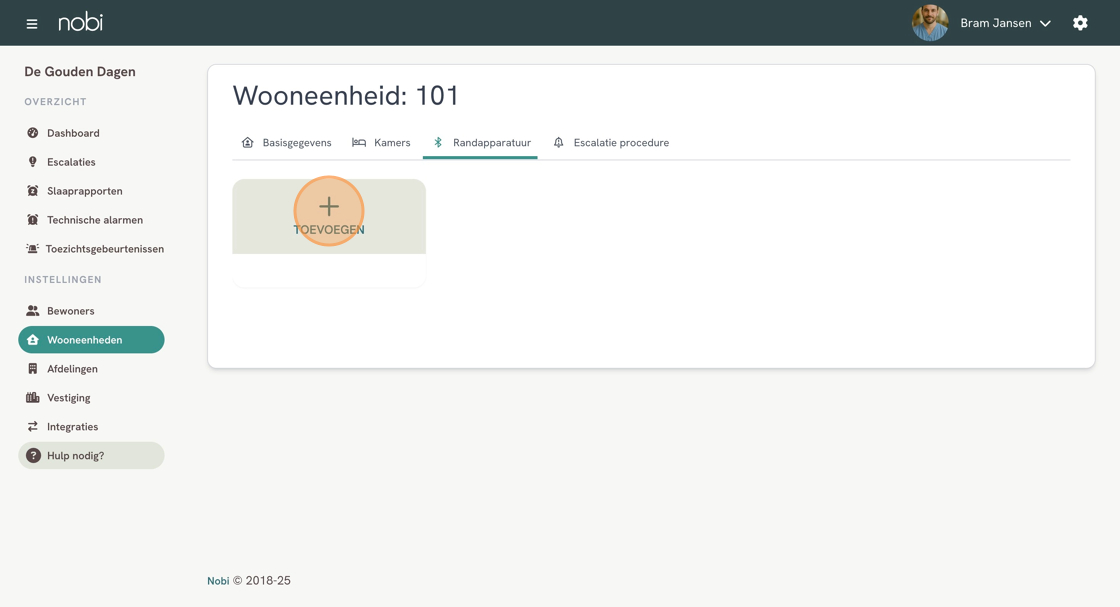

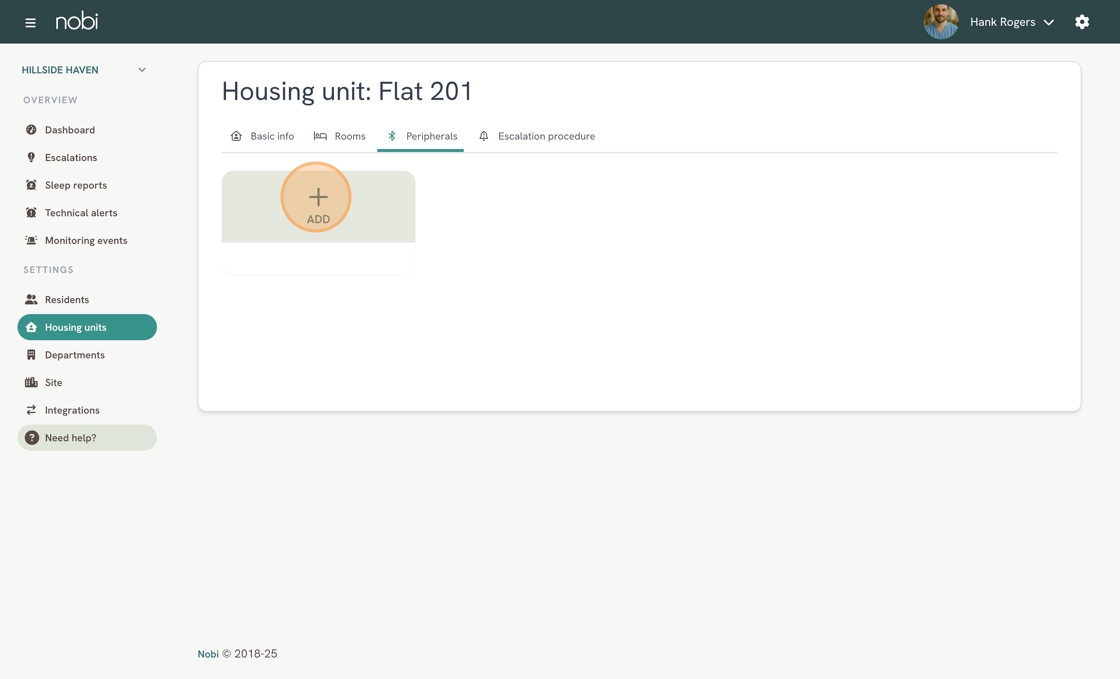

- Click on the + add.
- A wizard will open which takes you through following steps.

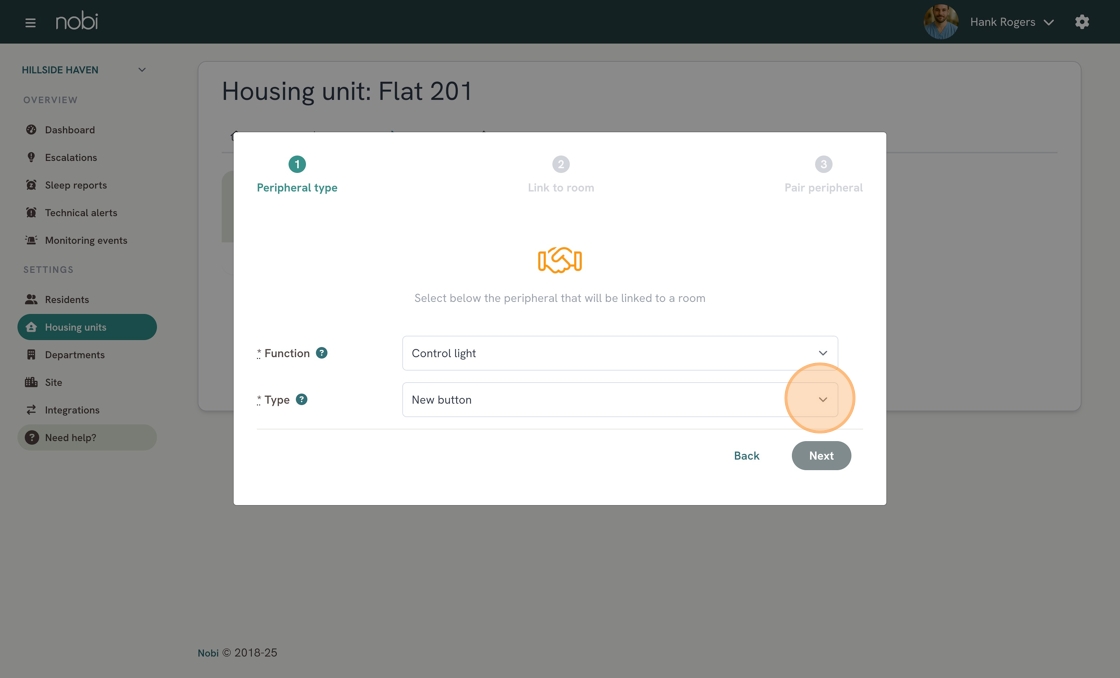

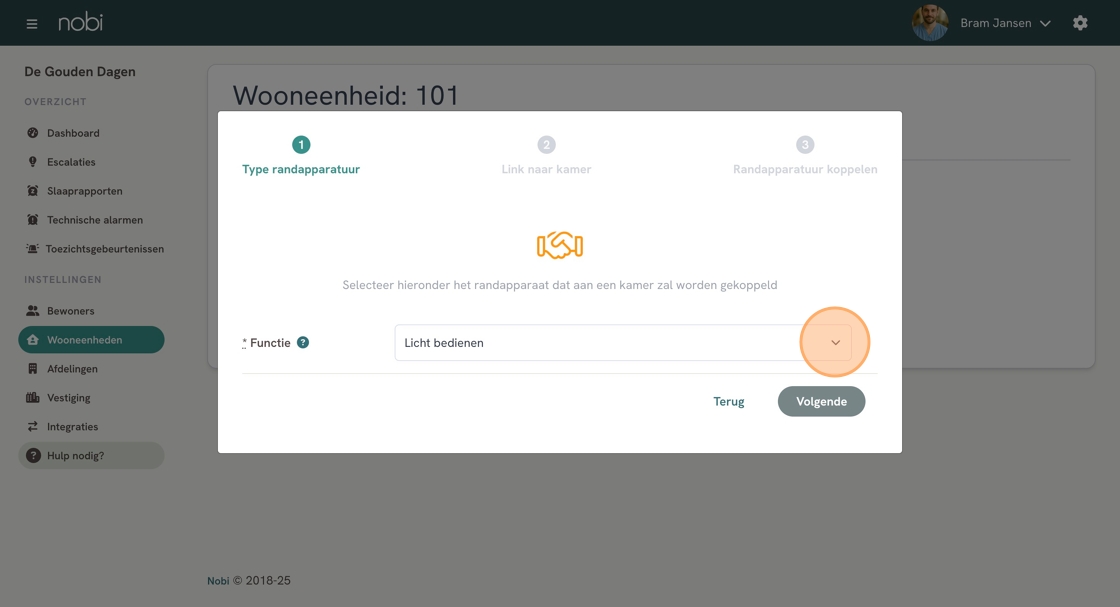

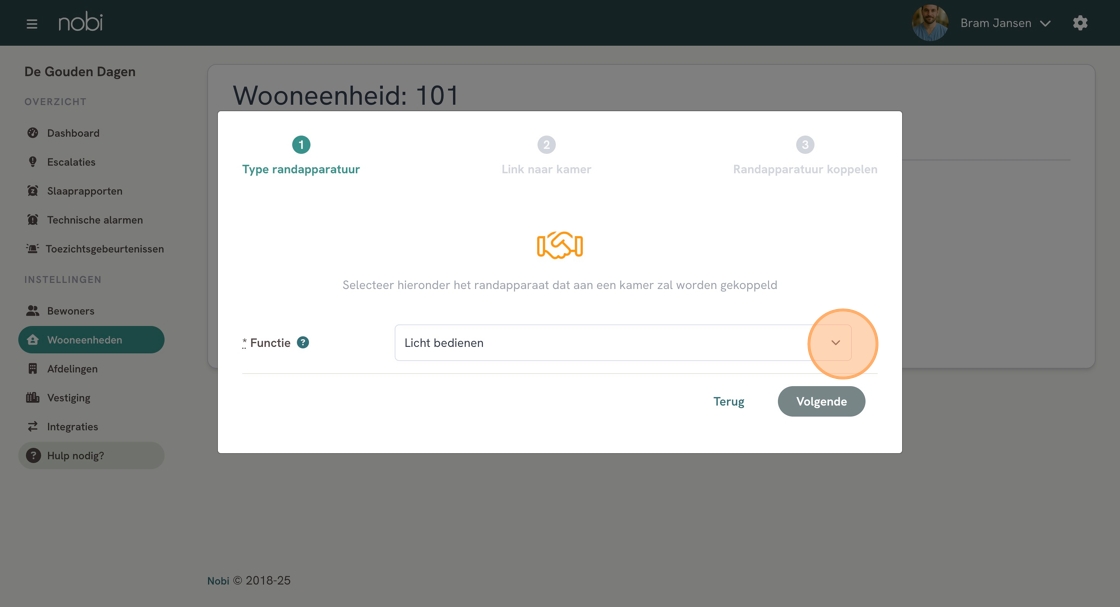

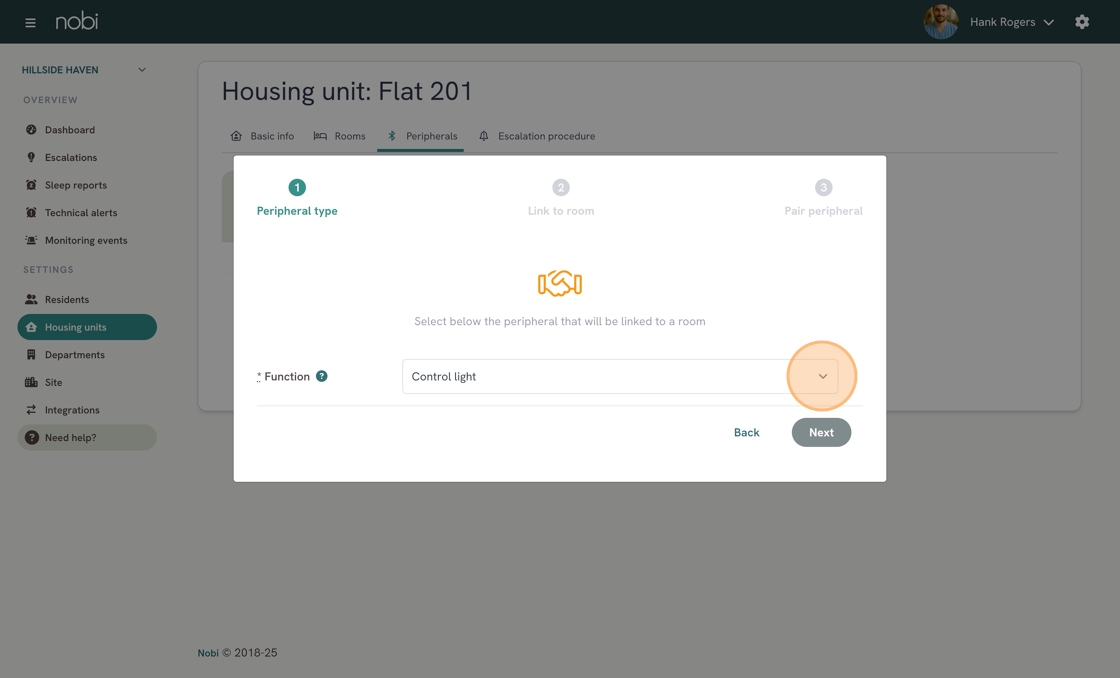

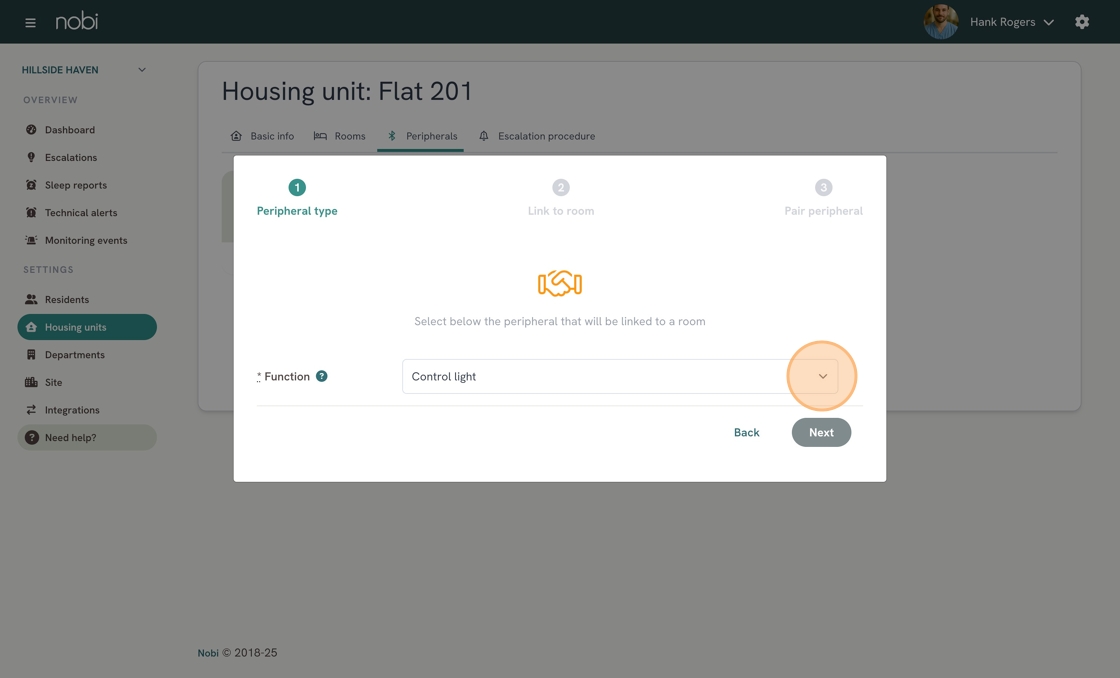

- Choose the function you want the peripheral to have. To pair the Control Light Button - Wireless Push Button (battery), choose Control light

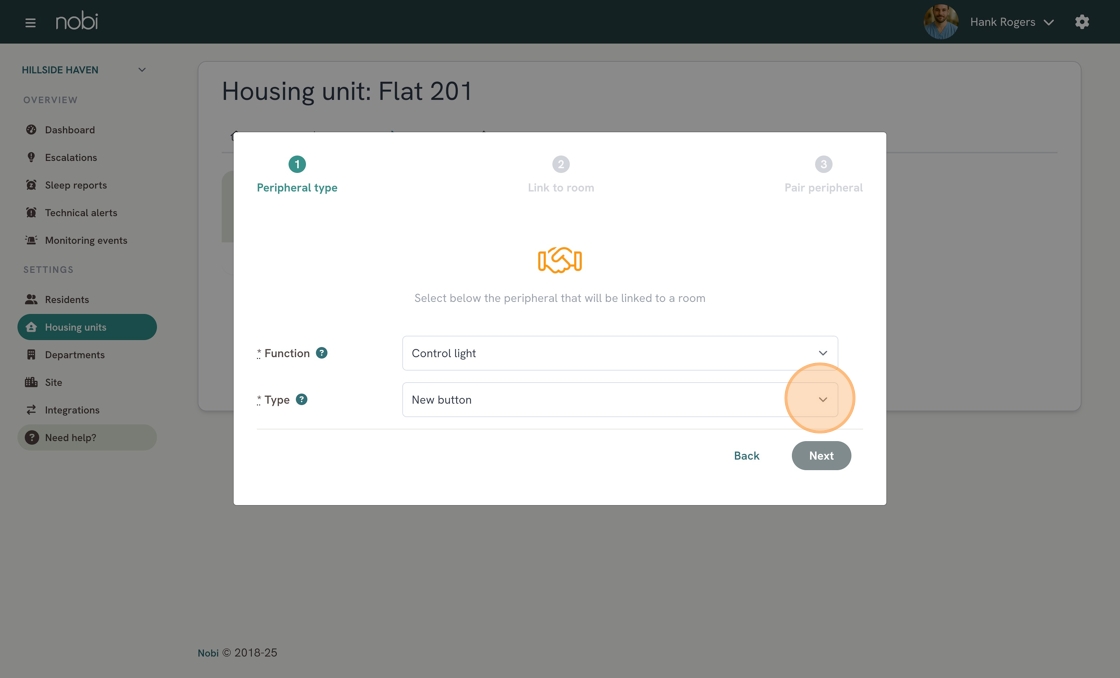

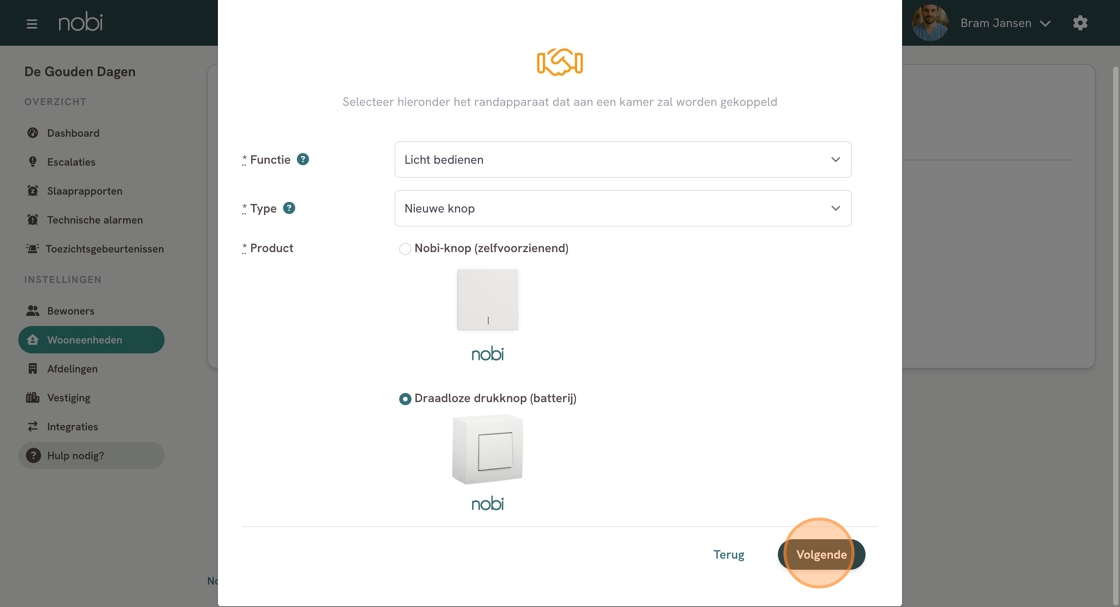

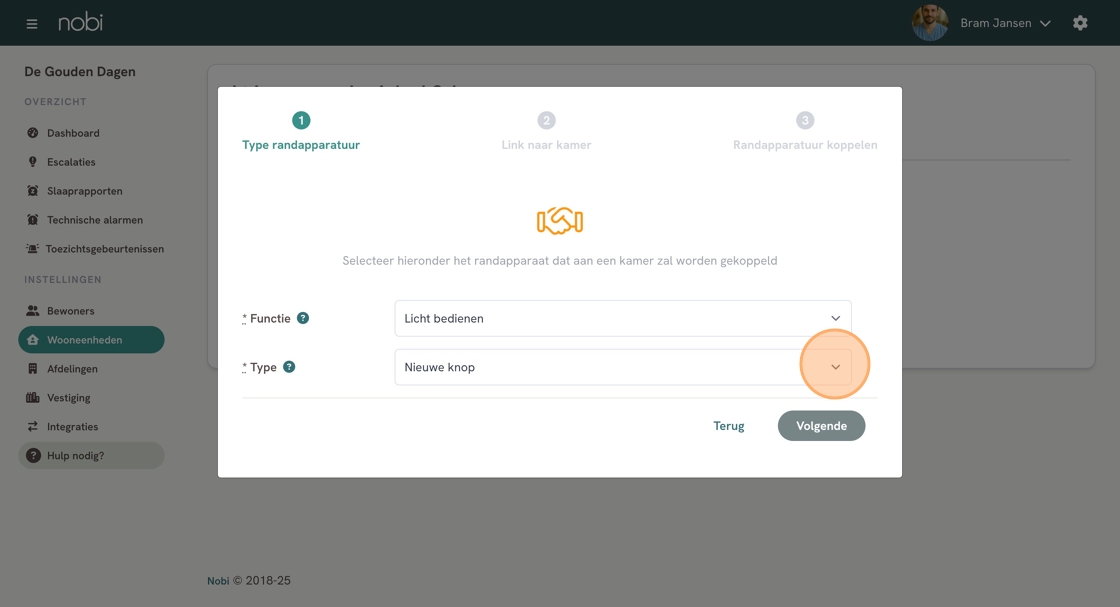

- Choose the type. For the Wireless Push Button (battery) choose New button.

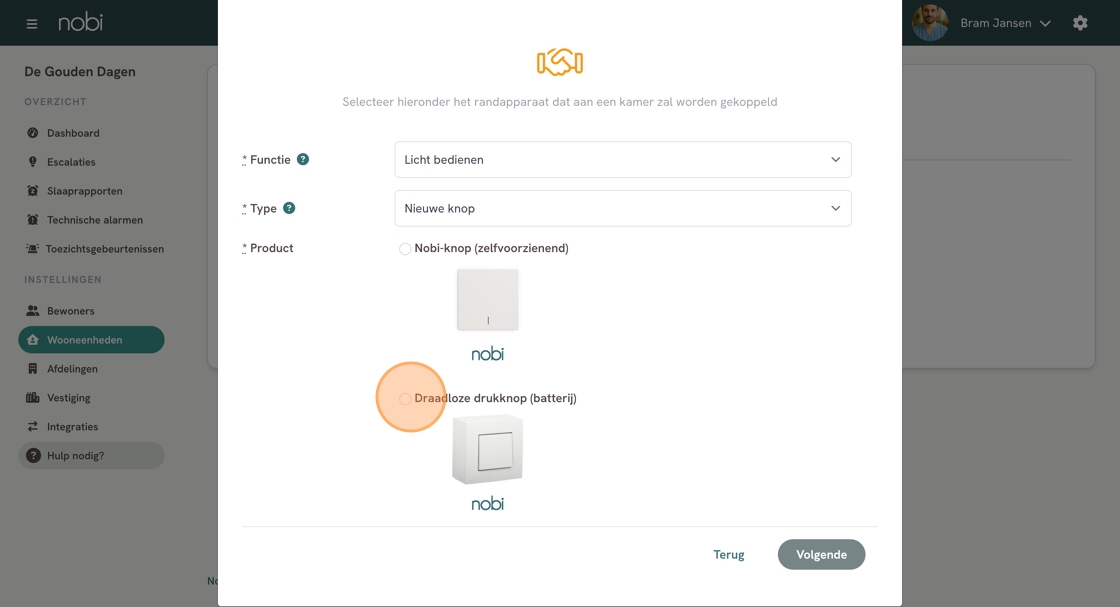

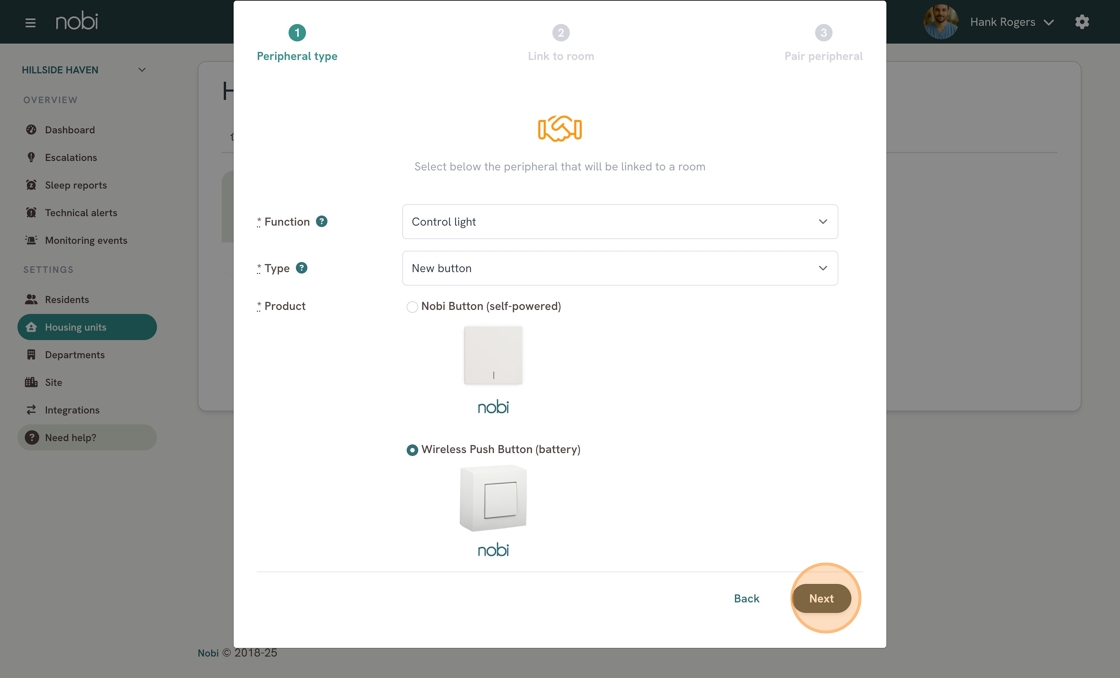

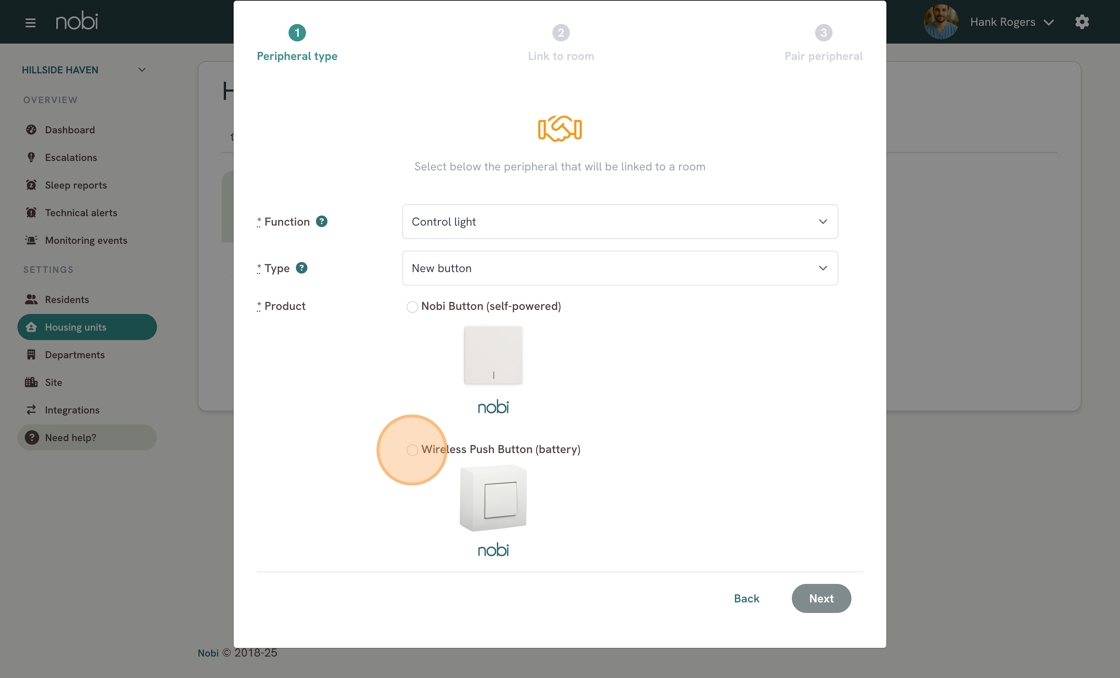

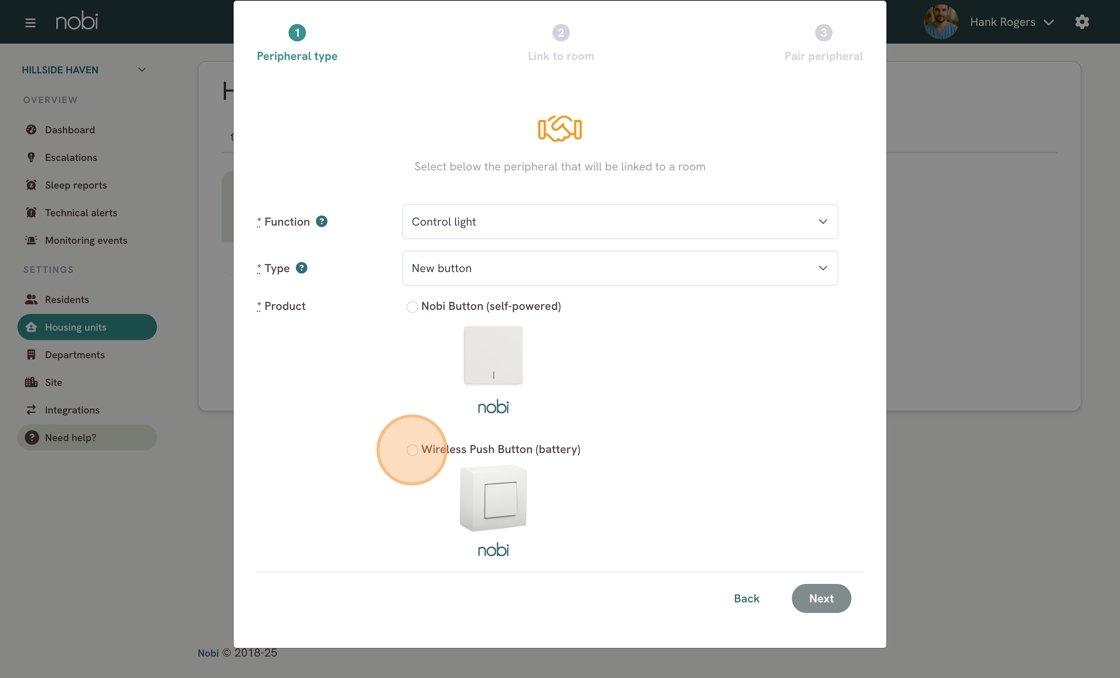

- You will now have the option to choose the product you want. In this case choose Wireless Push Button (battery).

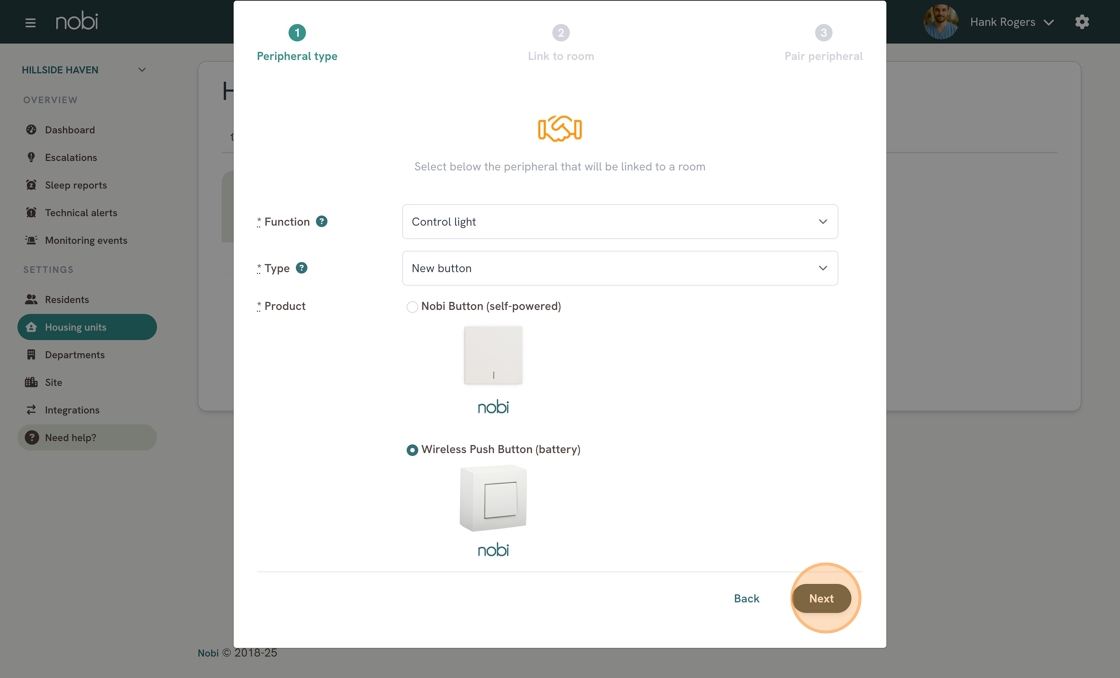

- Click next to go to the next step in the wizard.

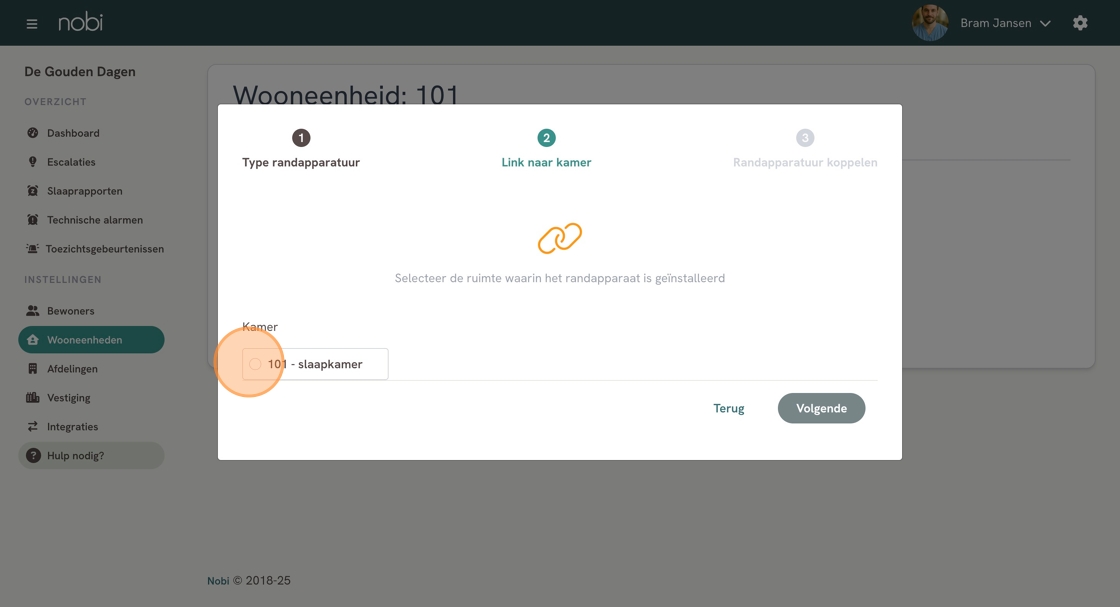

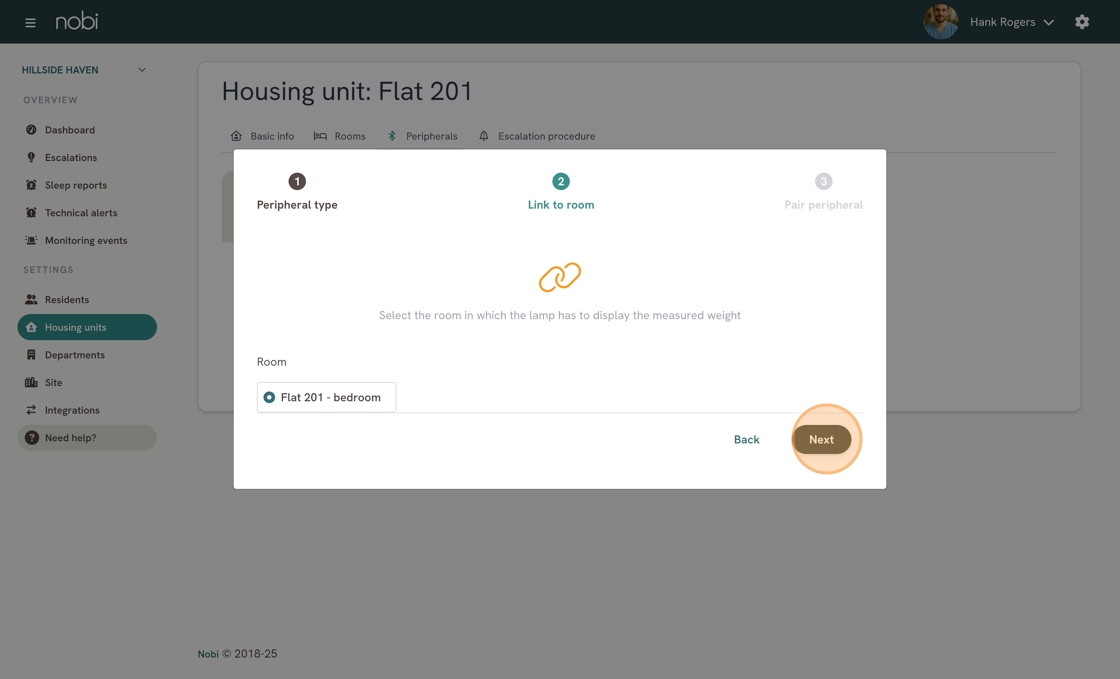

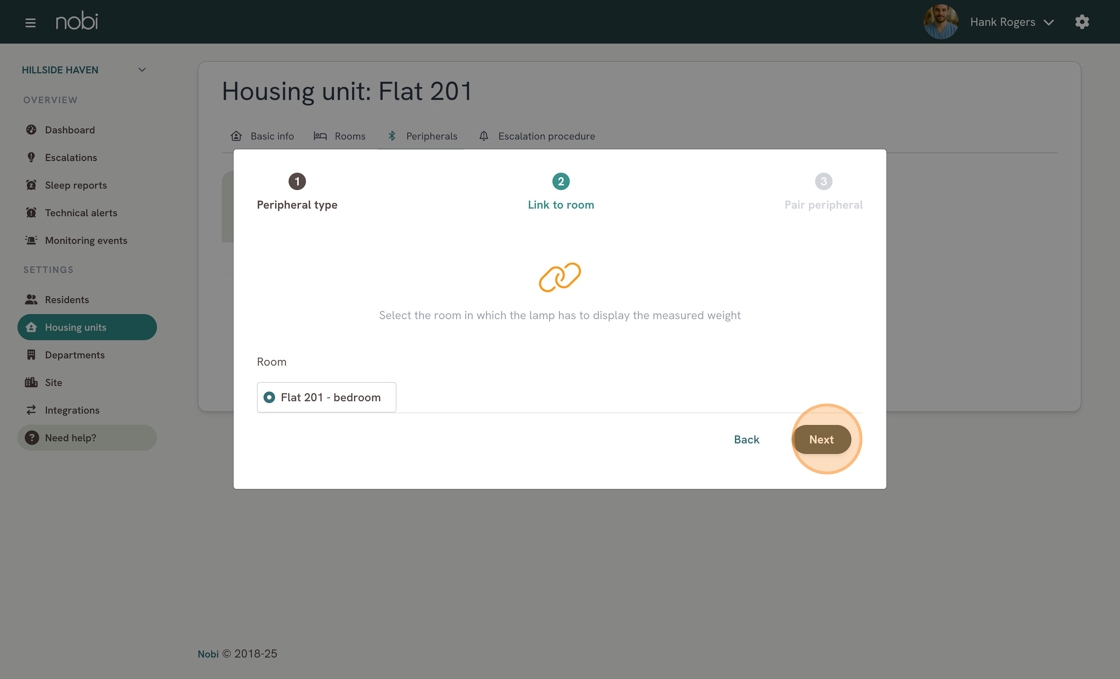

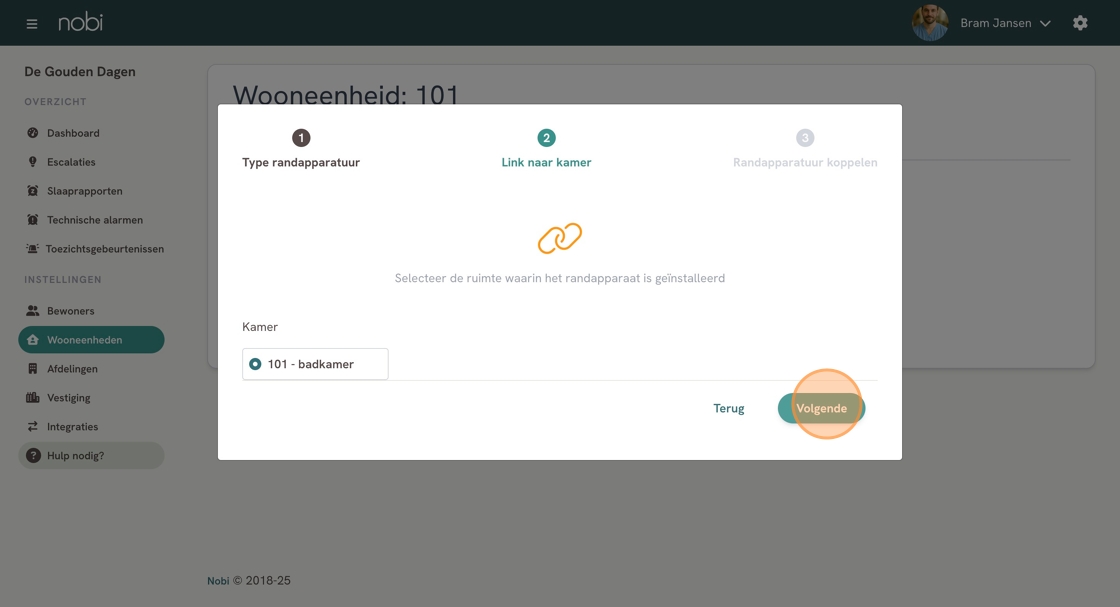

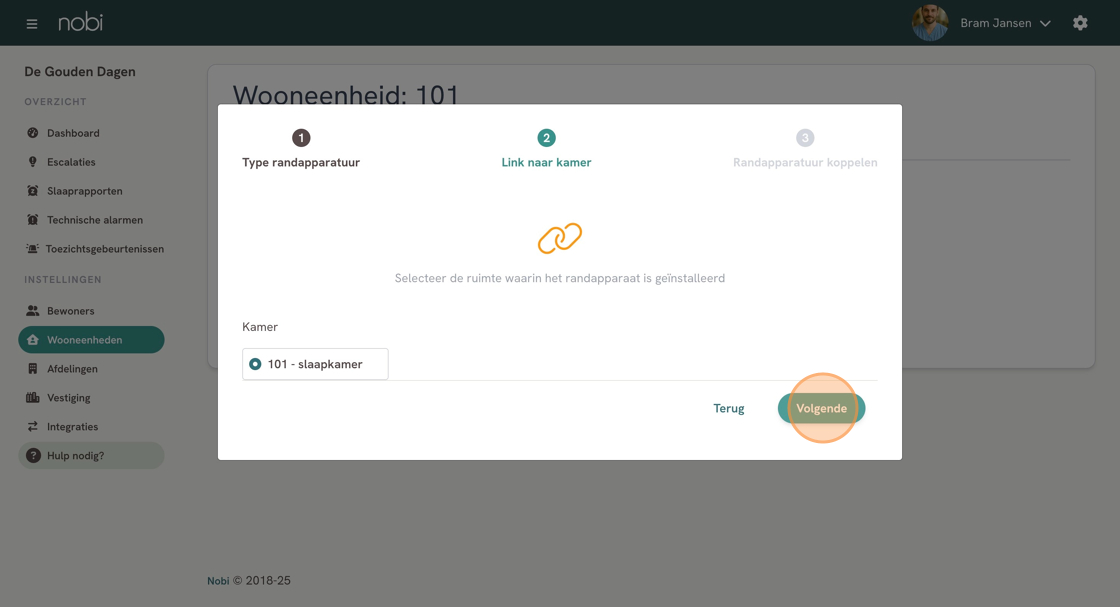

- Link to a room: Choose the room within the housing unit which is the closest to the peripheral you want to add. The light will flash when you click on the room in the app. Click next to go to the last step.

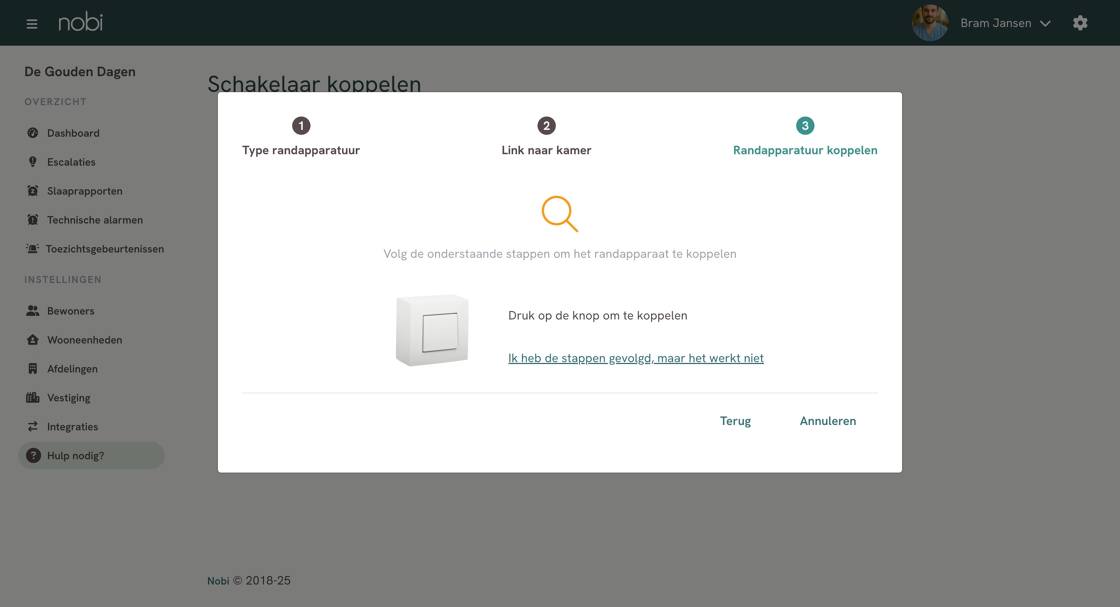

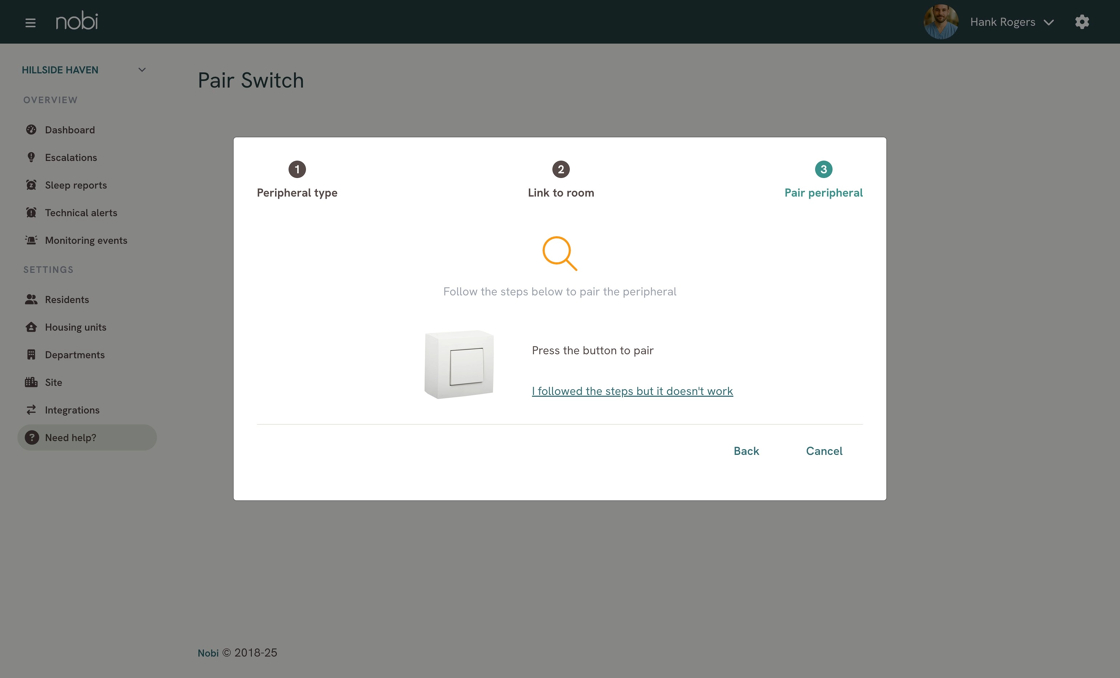

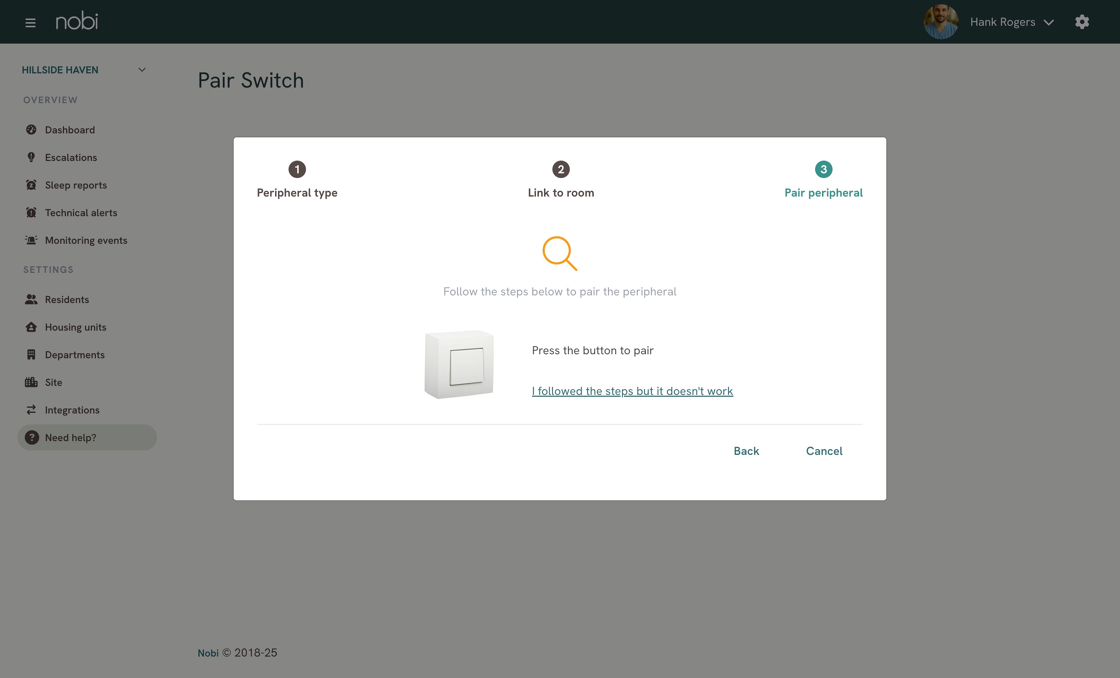

- Nobi will now provide the instructions to pair the peripheral. Follow the instructions on the screen.
- When pairing (and calibrating) is successful, you will return to the peripherals tab with the new peripheral added to the view. At the top of the screen, Nobi will display that the pairing is successfully completed.
You have now successfully paired the Control Light Button - Wireless Push Button (battery) to Nobi.
Still have questions? Contact Nobi Support.
