Install your Bluetooth door lock safely and correctly, using the right method for your door cylinder.
15 min task
What
The Bluetooth door lock is mounted on the inside of your existing door lock. You don’t need to replace your lock or drill holes. Based on your lock cylinder, you’ll either use a clamp or an adhesive mounting plate.
Why
The Bluetooth door lock helps residents enter and exit independently, while keeping their housing unit secure. A correct installation ensures the lock functions reliably, without damaging the existing cylinder. Choosing the right mounting option also ensures stability, especially with frequent use.
Detailed steps

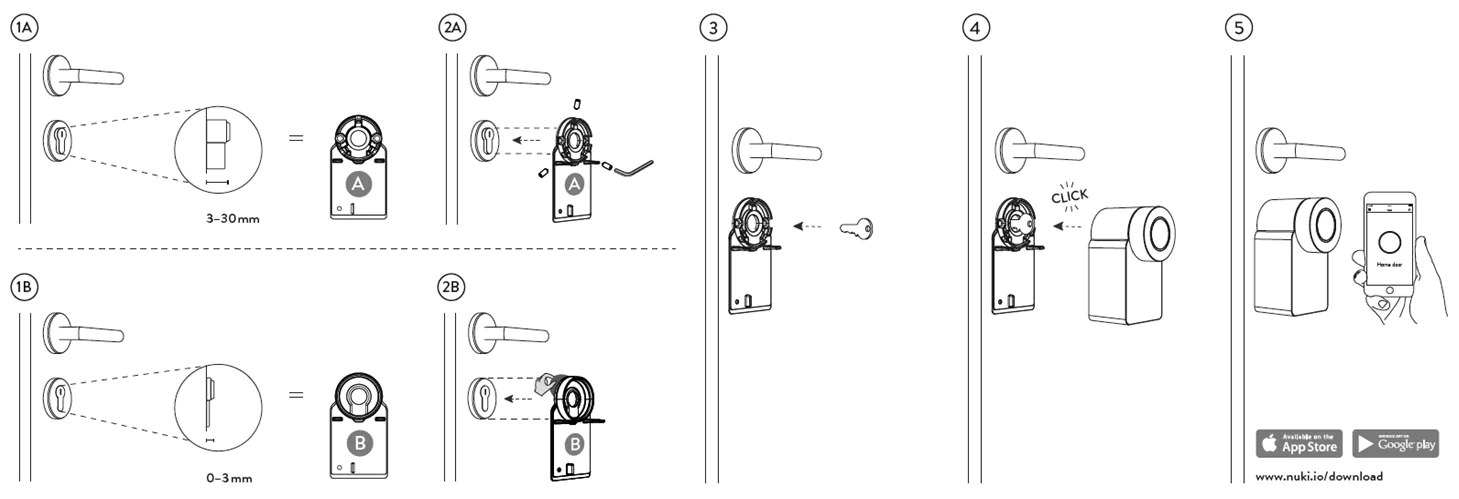

First, check the overhang of your door cylinder on the inside.
If the cylinder extends at least 3 mm past the door surface: use the clamp-on mounting plate (Version A).
If the cylinder is flush or has less than 3 mm overhang: use the stick-on mounting plate (Version B).
Installation with clamp-on mounting plate
Use this method if your cylinder has 3 mm or more overhang on the inside.
- Take mounting plate A from the packaging
- Screw-fix the mounting plate to the cylinder with the supplied wrench
Please fix the screws carefully and without great physical effort to avoid damaging the cylinder. - Put your key into the lock
- Attach your Smart Lock to the mounting plate
Installation with stick-on mounting plate
Use this method if your cylinder has less than 3 mm overhang on the inside.
- The cylinder has less than 3mm overhang: Take mounting plate B from the packaging
- Peel off the protective backing and stick the mounting plate to your door
- Put your key into the lock
- Attach your Smart Lock to the mounting plate
You have now installed your Bluetooth door lock.
To discover how the Bluetooth door lock works with Nobi, click here.
For information on how to pair the Bluetooth door lock with Nobi, visit our guide here.
For maintenance information regarding the Bluetooth door lock, consult our guide here.
Still need help? Contact Nobi Support.
