In this article, you will learn how to set up a Common Area housing unit, for Nobi lights or for Gateways.
5 min task
What
A Common Area is a type of housing unit that isn't linked to a specific resident. It lets you set up Nobi devices in shared spaces, such as hallways or lounges, without assigning them to an individual resident.
A Common Area is set up either for Nobi lights or for Gateways. This is chosen via the Device setup option when the housing unit is created, and it determines which devices can be onboarded in the housing unit.
Why
Residents do not only fall or call for help in their own rooms. A Common Area is how you extend Nobi coverage to the hallways, lounges and dining rooms a resident moves through.
A Nobi light covers the space the way it covers a resident's room: smart monitoring is enabled by default, allowing Nobi to detect falls, resident calls and assistance calls.
Gateways extend coverage into shared spaces by picking up Assistance Call and Wearable Call escalations where there are no Nobi lights. A Gateway doesn't include fall detection, image or video capture, pose analysis, or two-way audio. To learn more, read our discover article on the Nobi Gateway.
Detailed steps
Setup for Nobi Lights

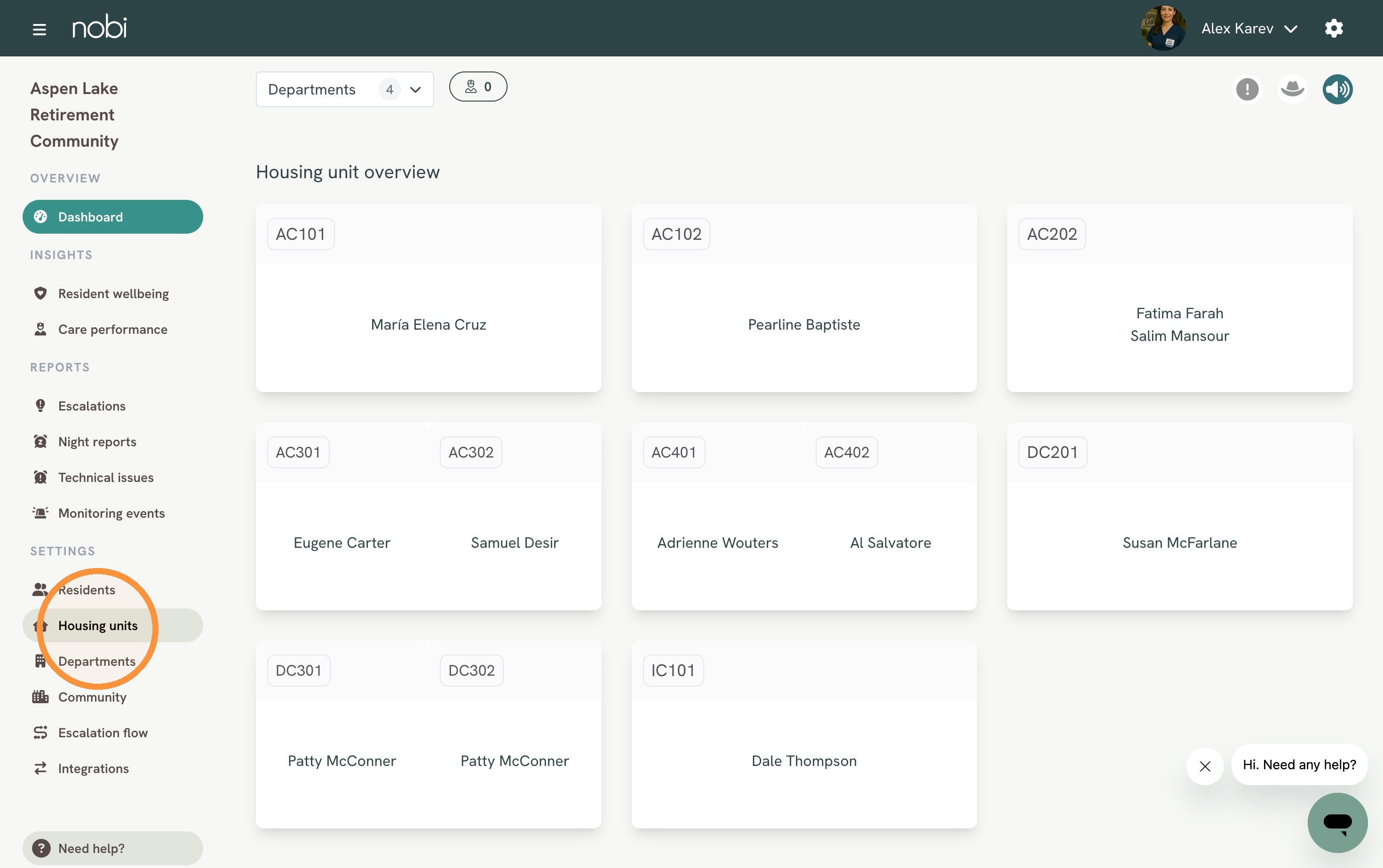

- Navigate to the Housing Units page.

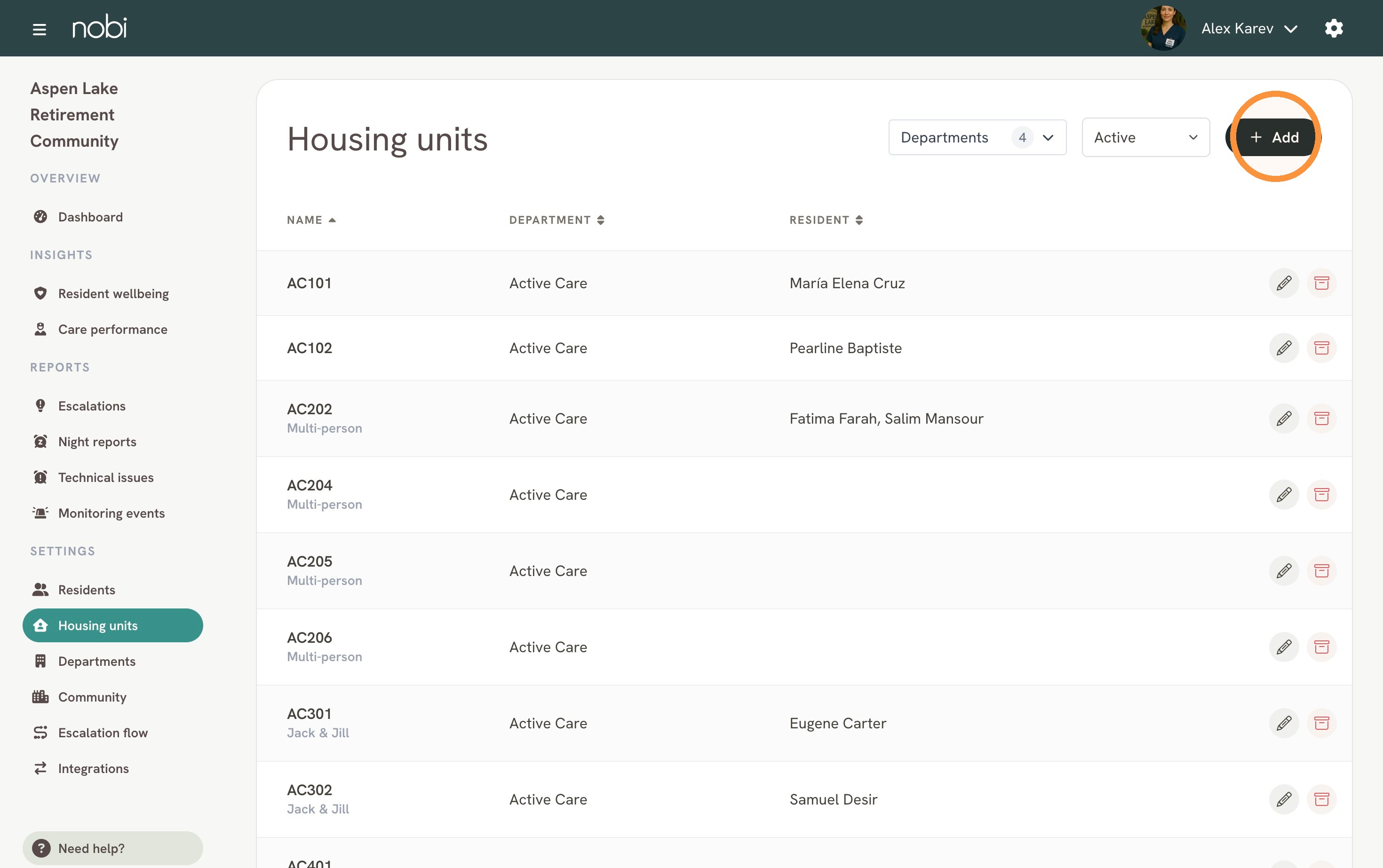

- Click +Add in the top right corner to add a new housing unit.

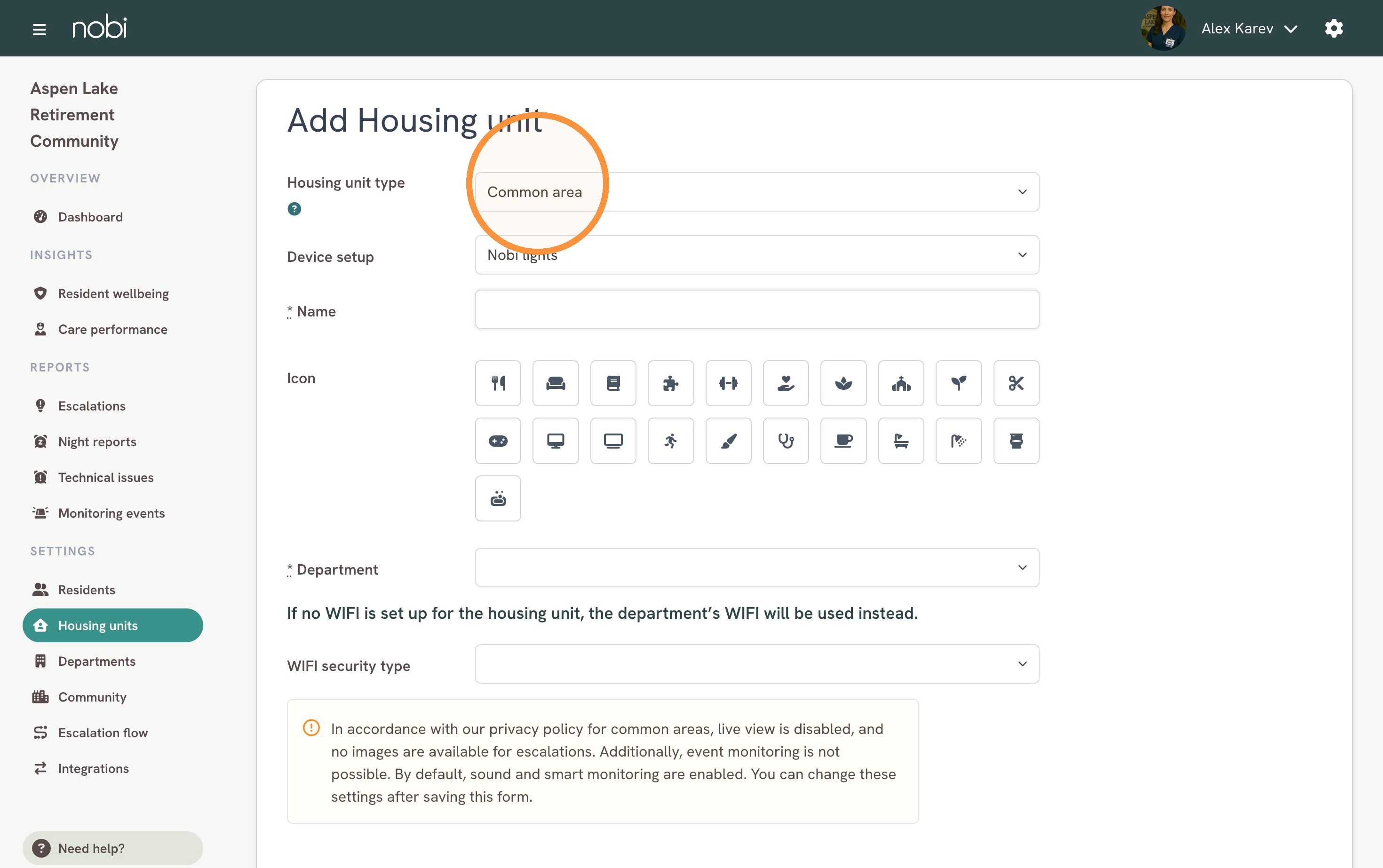

- Select Common Area from the Housing unit type dropdown.
- Select Nobi lights from the Device setup dropdown. This is the default.
-

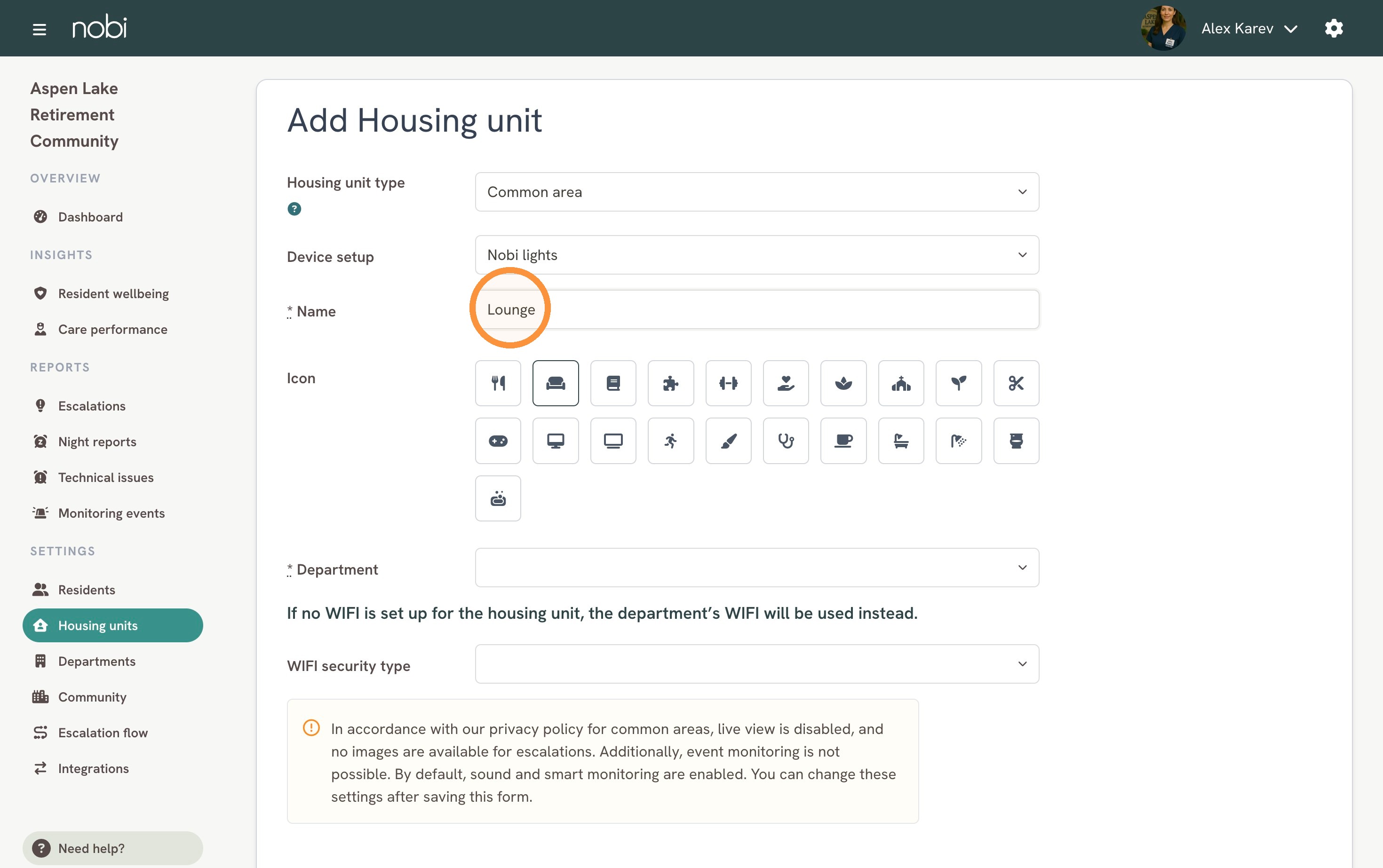

Name the housing unit, for example "Lounge".

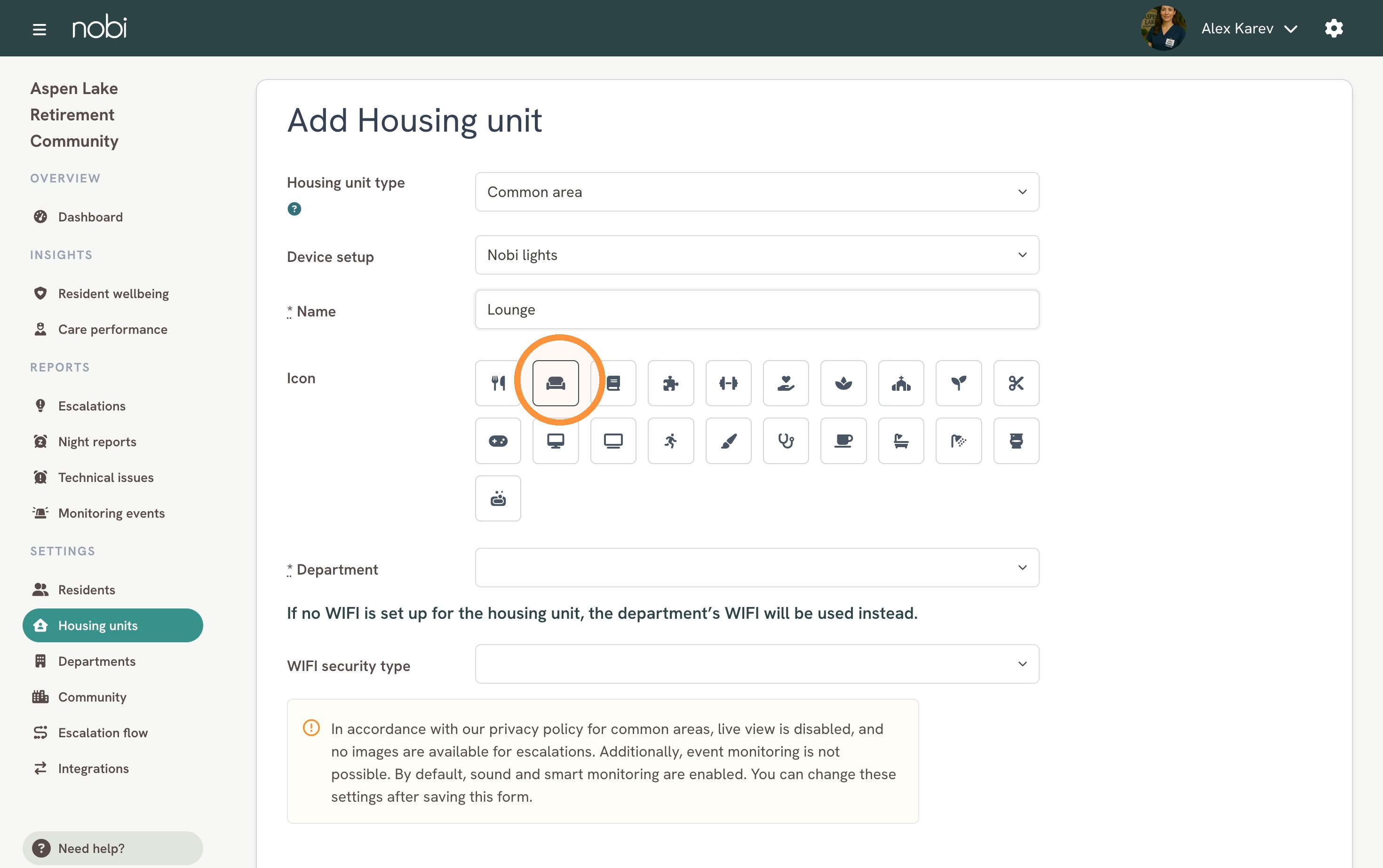

- Optionally, select an icon to represent the housing unit.

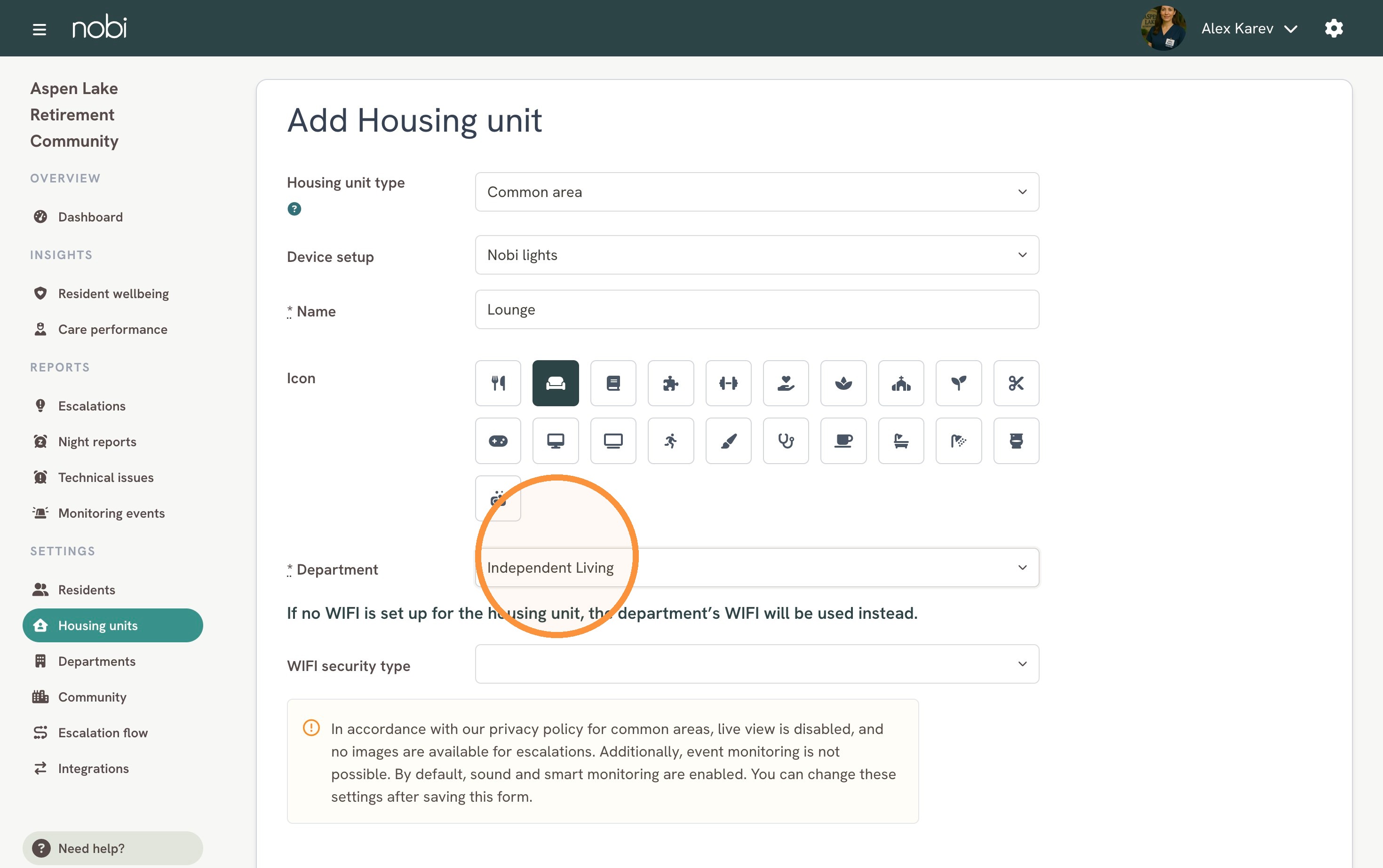

- Choose the Department the housing unit belongs to from the dropdown.

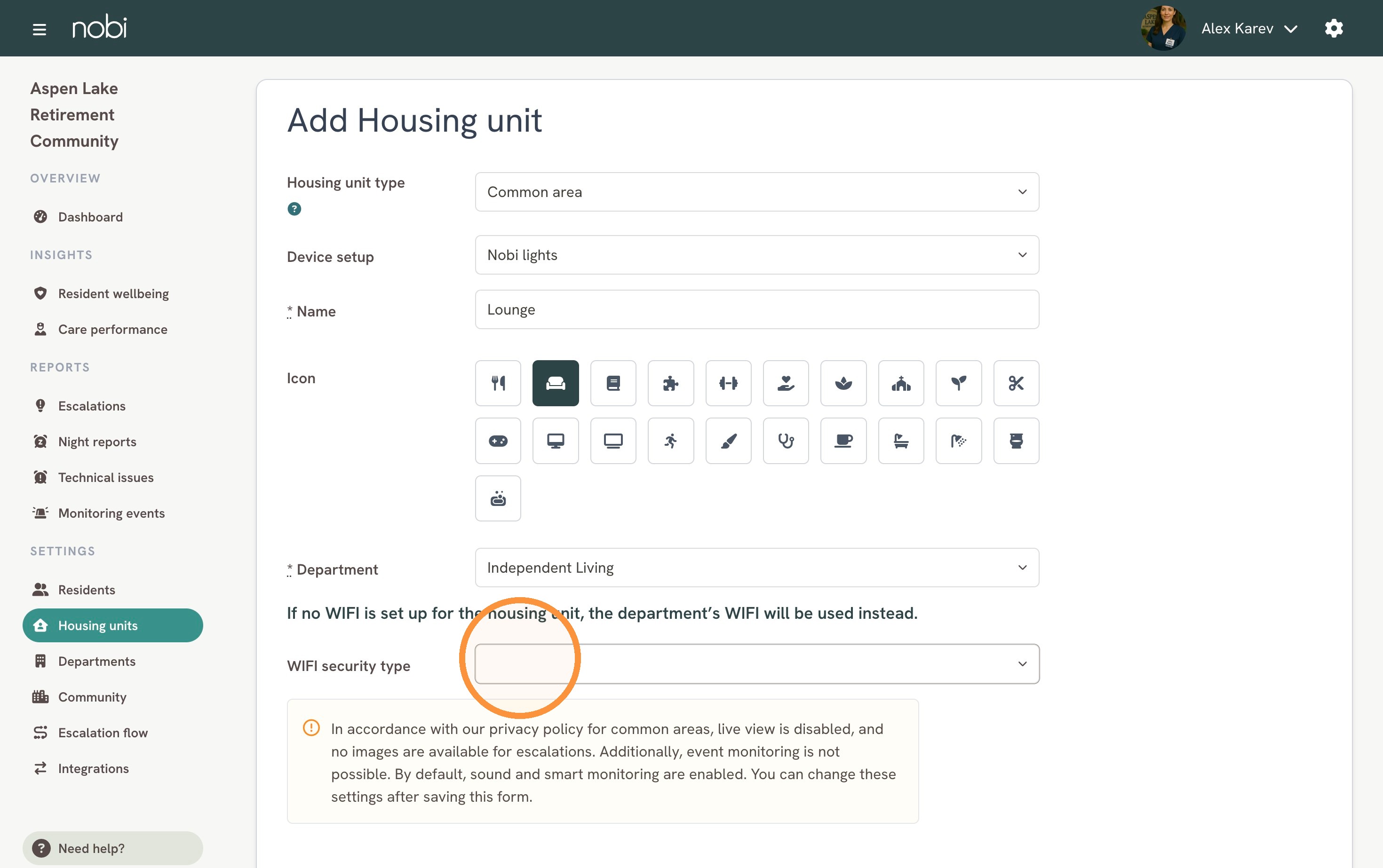

- Optionally, edit the WIFI security type, if it differs from the Department level.

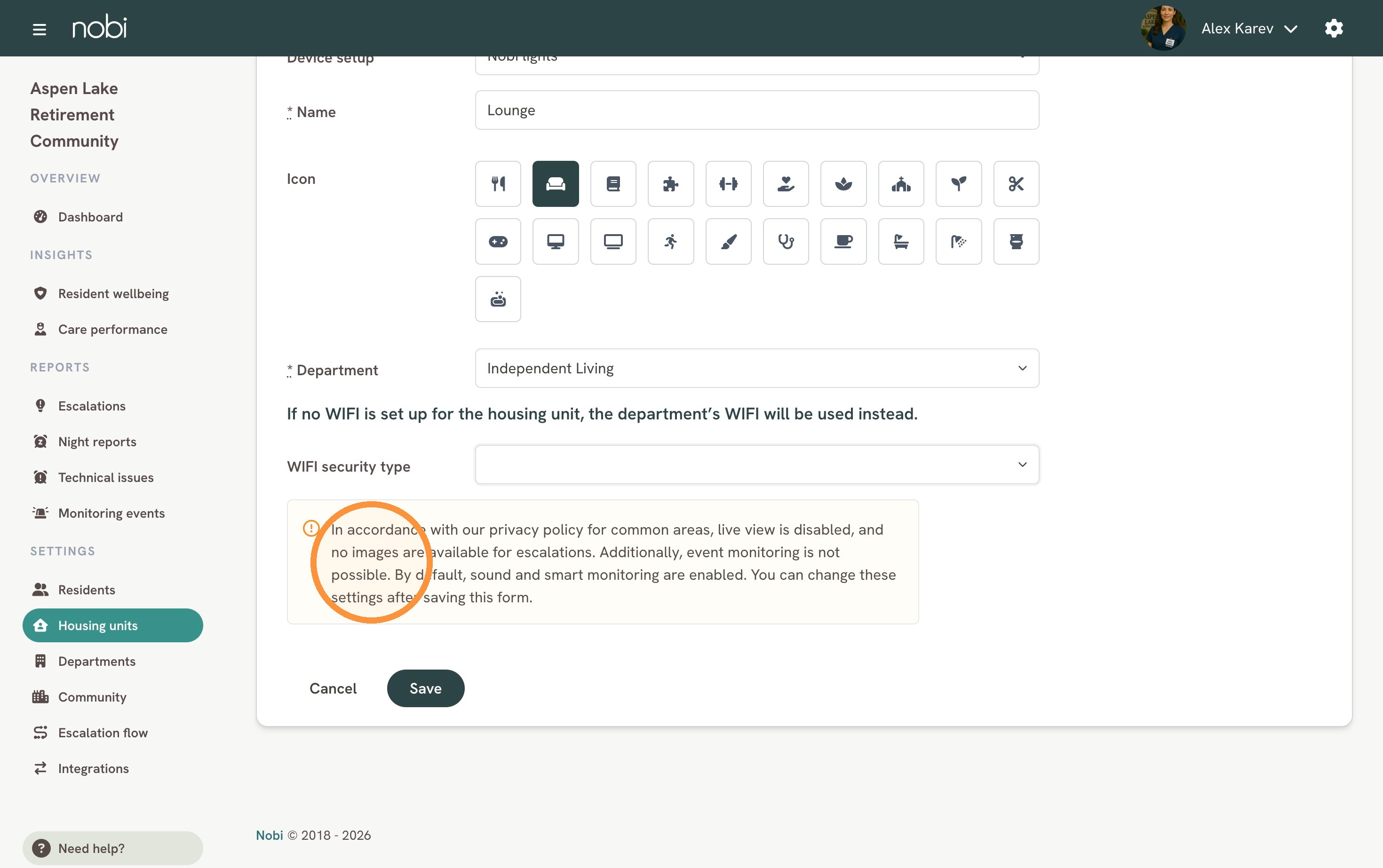

- Read the yellow box. It explains that live view is disabled, no images are available in escalations, and monitoring events are not possible in common areas. Sound and smart monitoring are enabled by default and can be changed later.

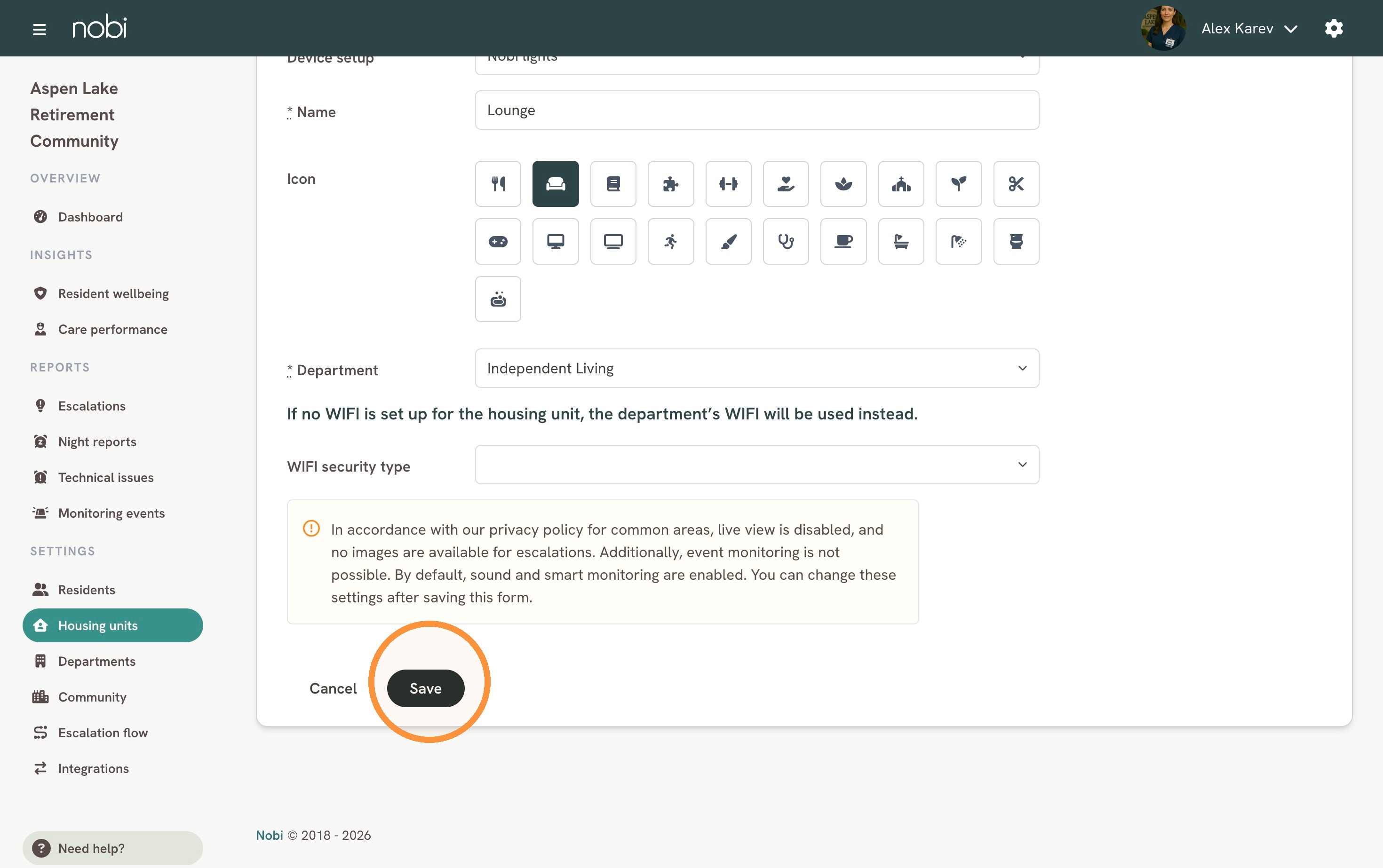

- Click Save.

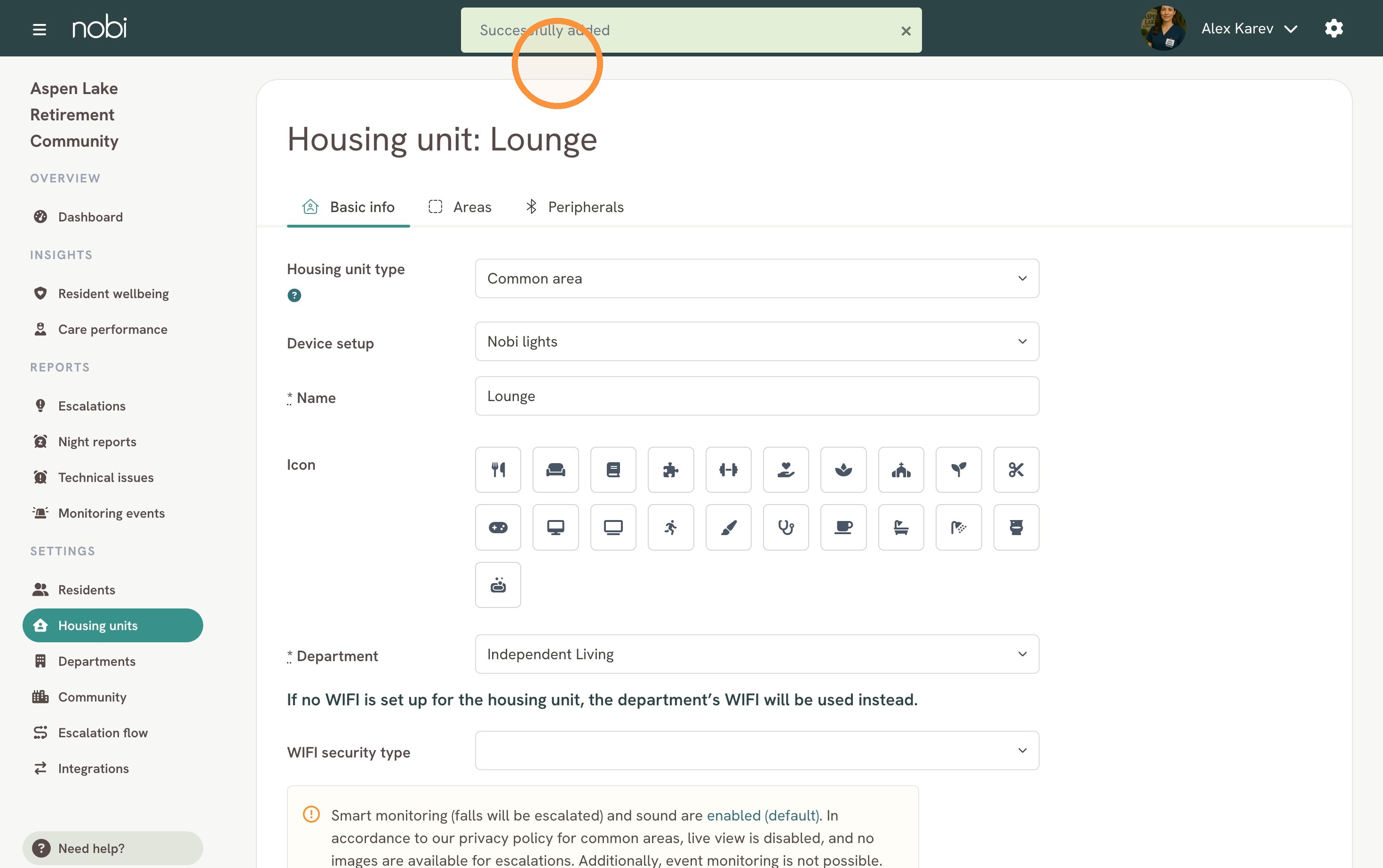

- A green banner will appear at the top of the page, confirming the housing unit was added.
You have now created a Common Area housing unit configured for Nobi lights.
Setup for Gateways
- Navigate to the Housing Units page.
- Select +Add in the top right corner to add a new housing unit.
- Select Common Area from the Housing unit type dropdown.

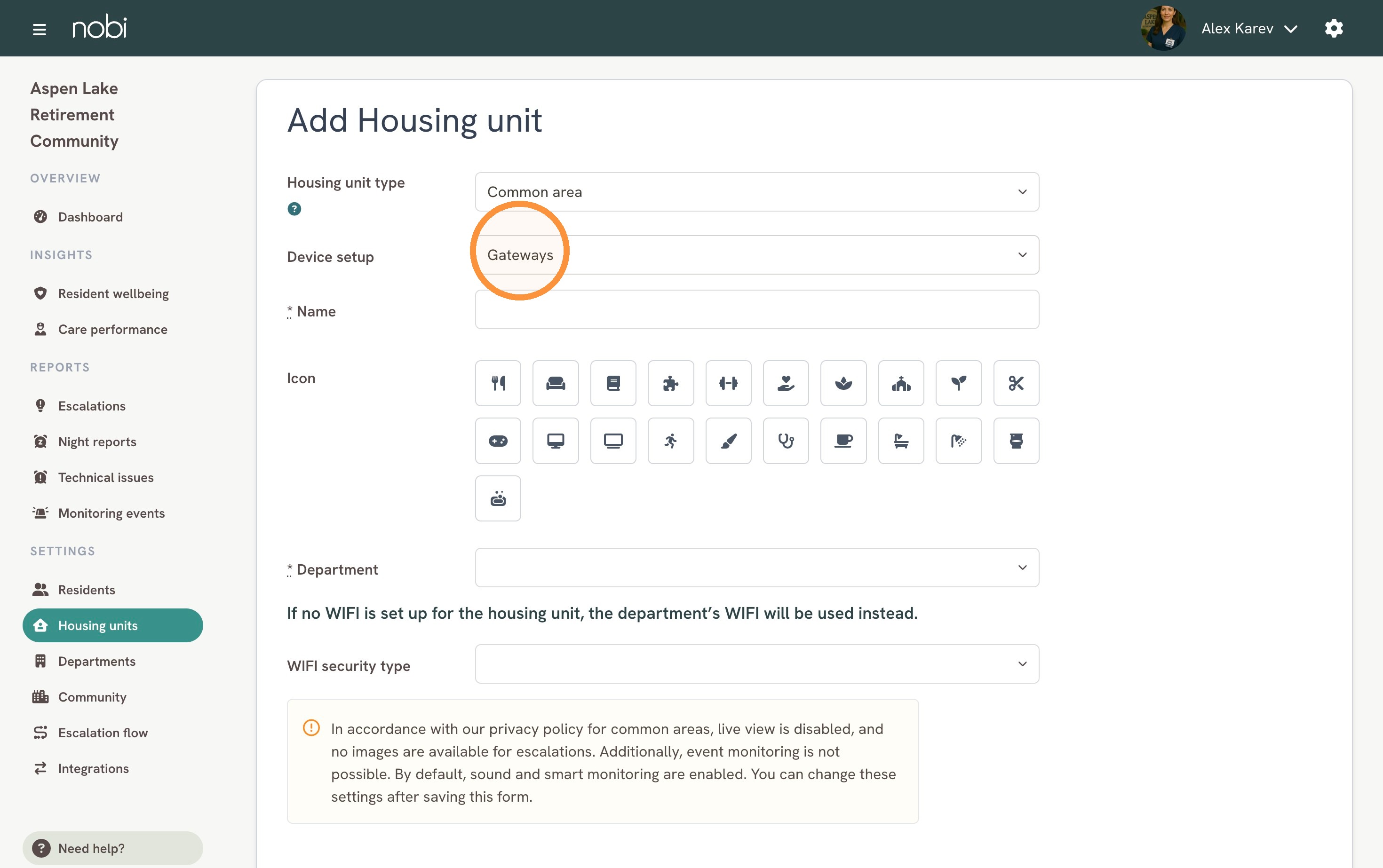

- Select Gateways from the Device setup dropdown.

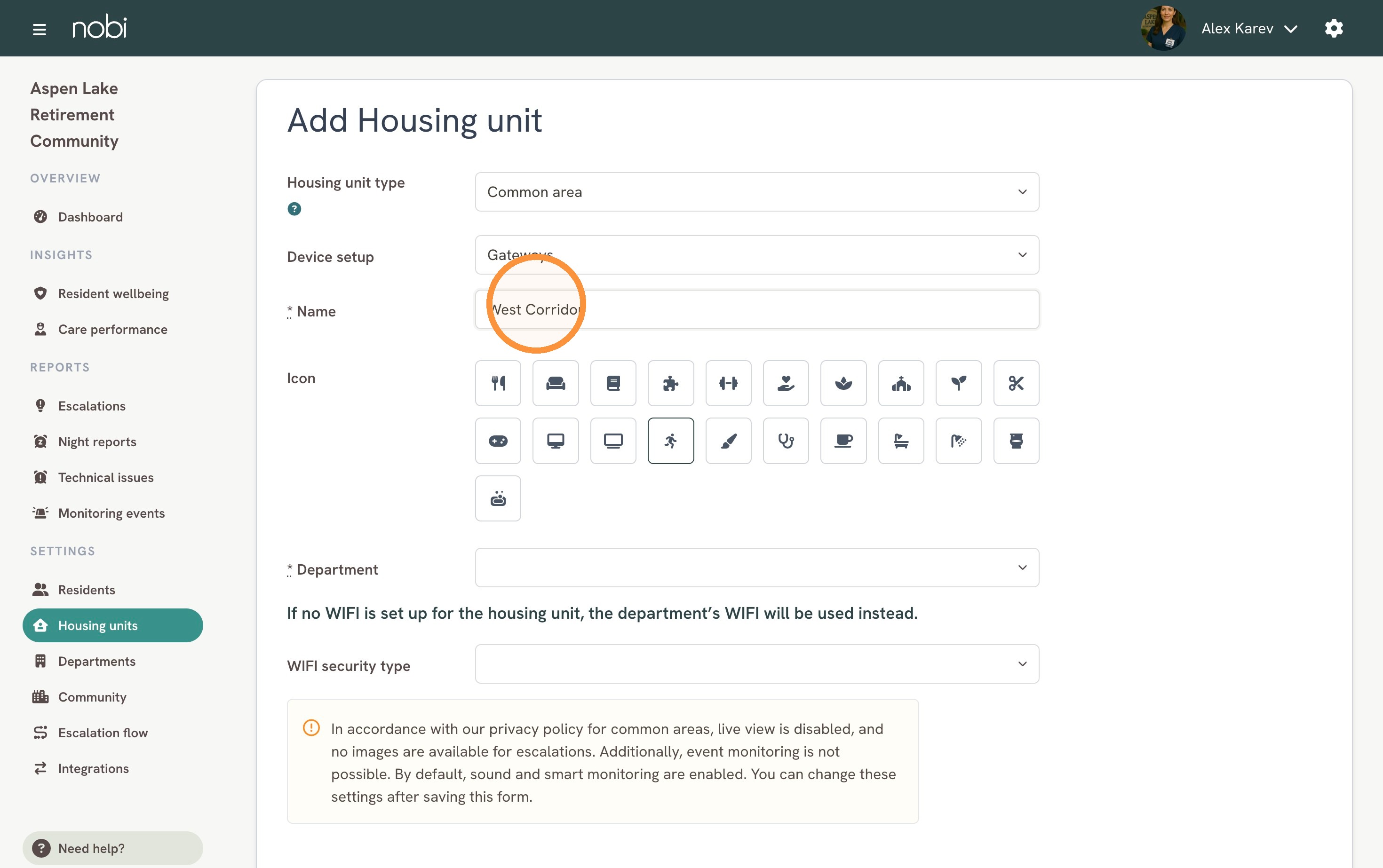

Please note: this dropdown defaults to Nobi lights, so be sure to change it to Gateways. Otherwise, the housing unit won't be set up to pair a Gateway. - Name the housing unit, for example "West Corridor".

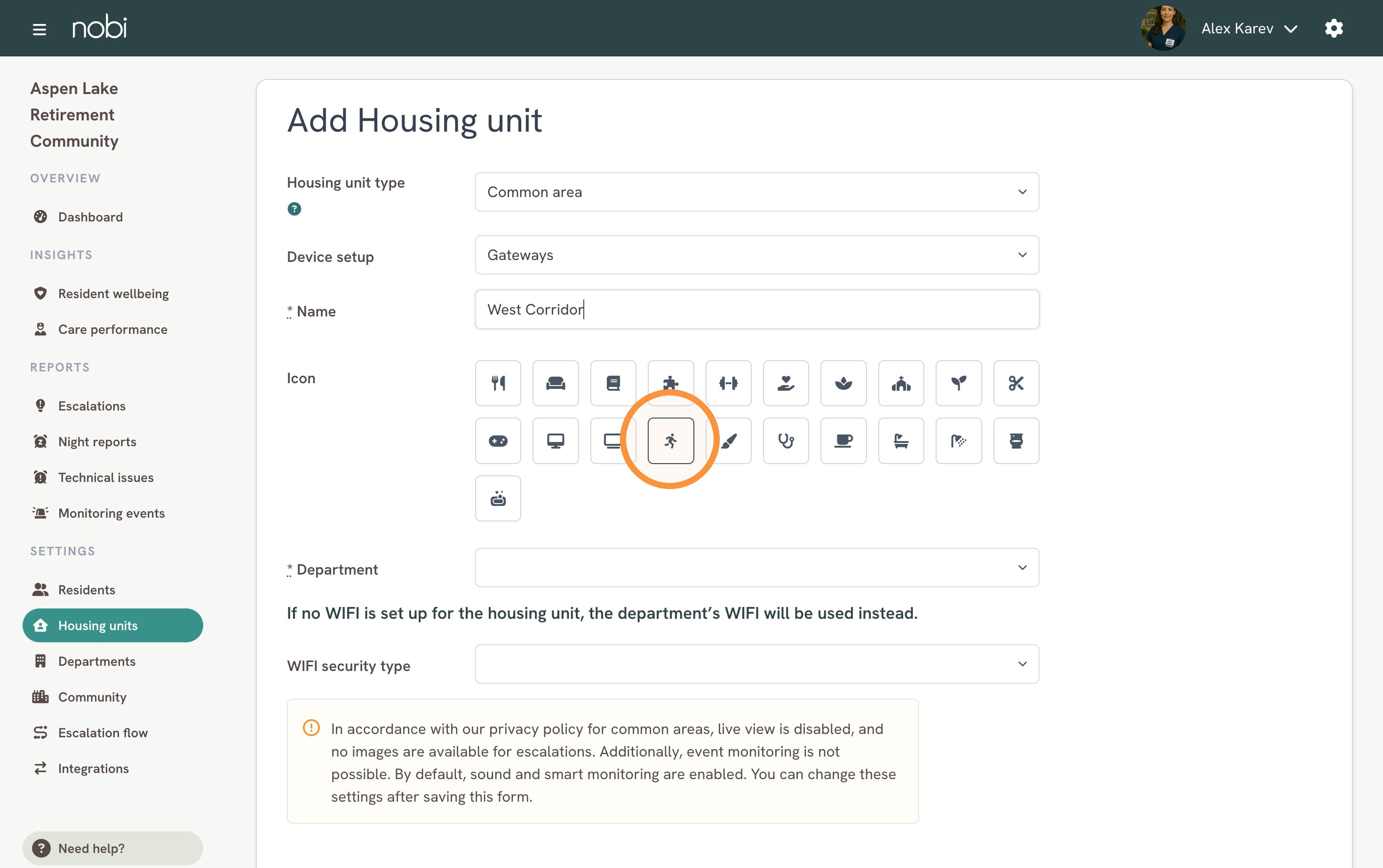

- Optionally, select an icon to represent the housing unit.

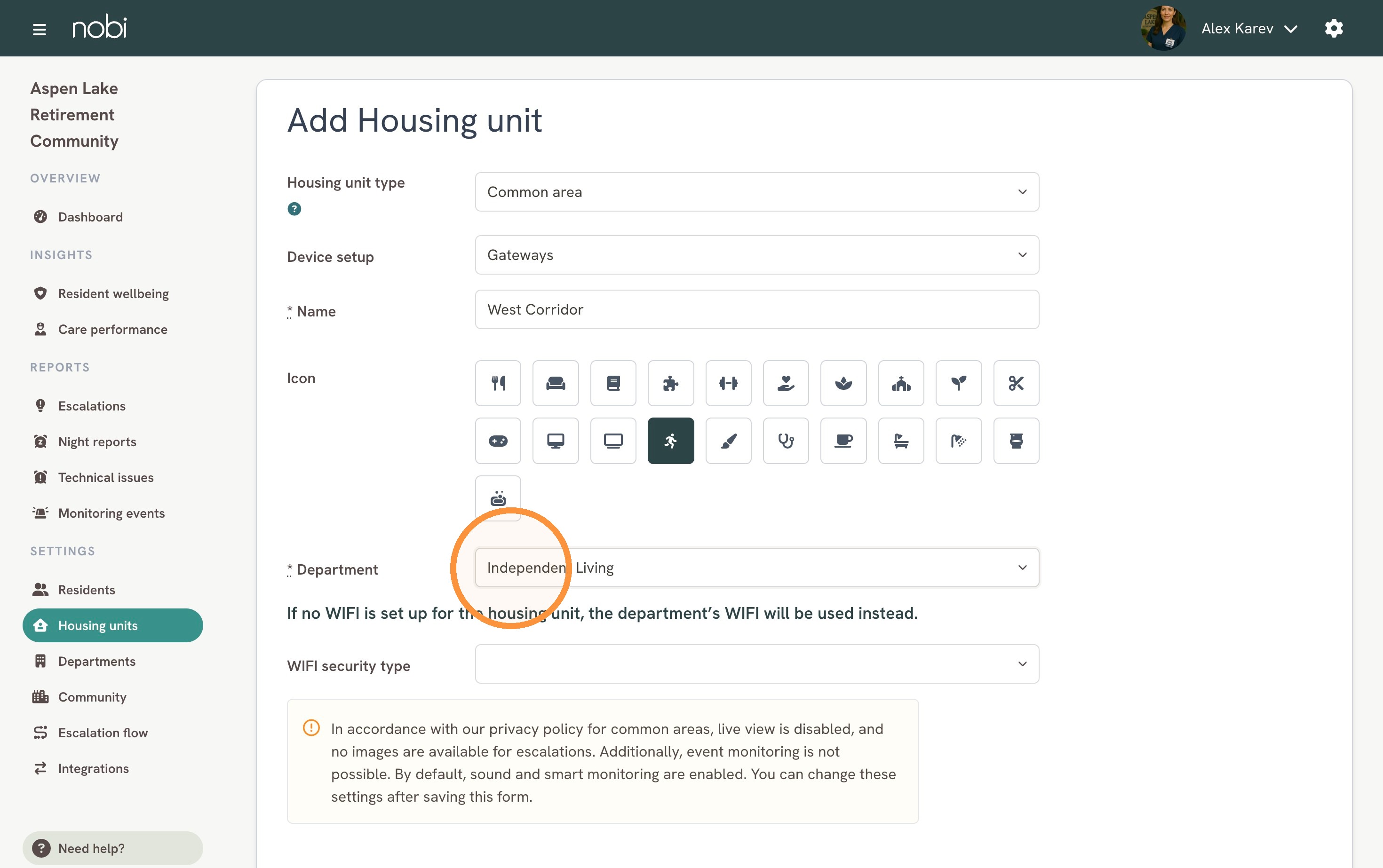

- Choose the Department the housing unit belongs to from the dropdown.

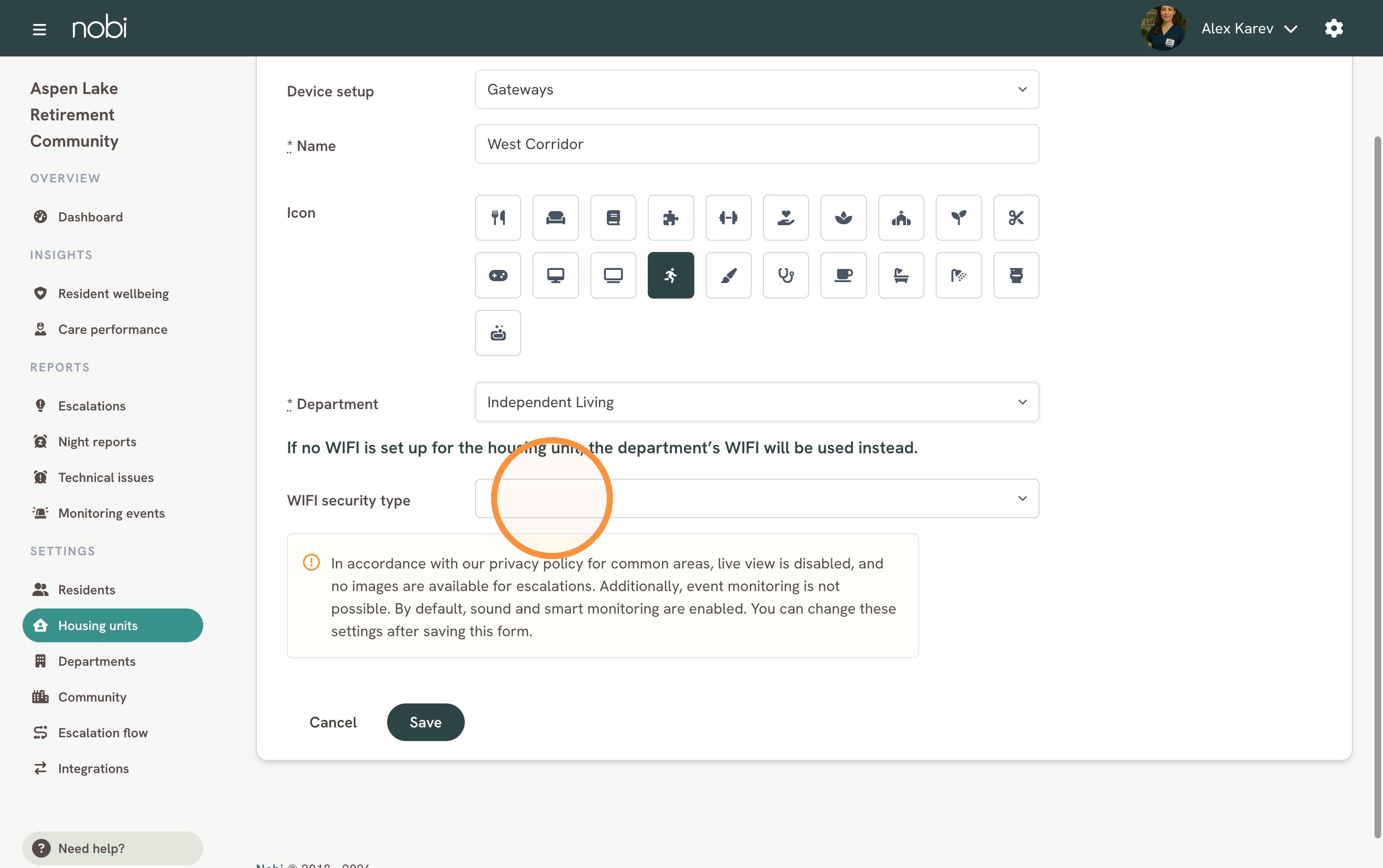

- Optionally, edit the WIFI security type, if it differs from the Department level.

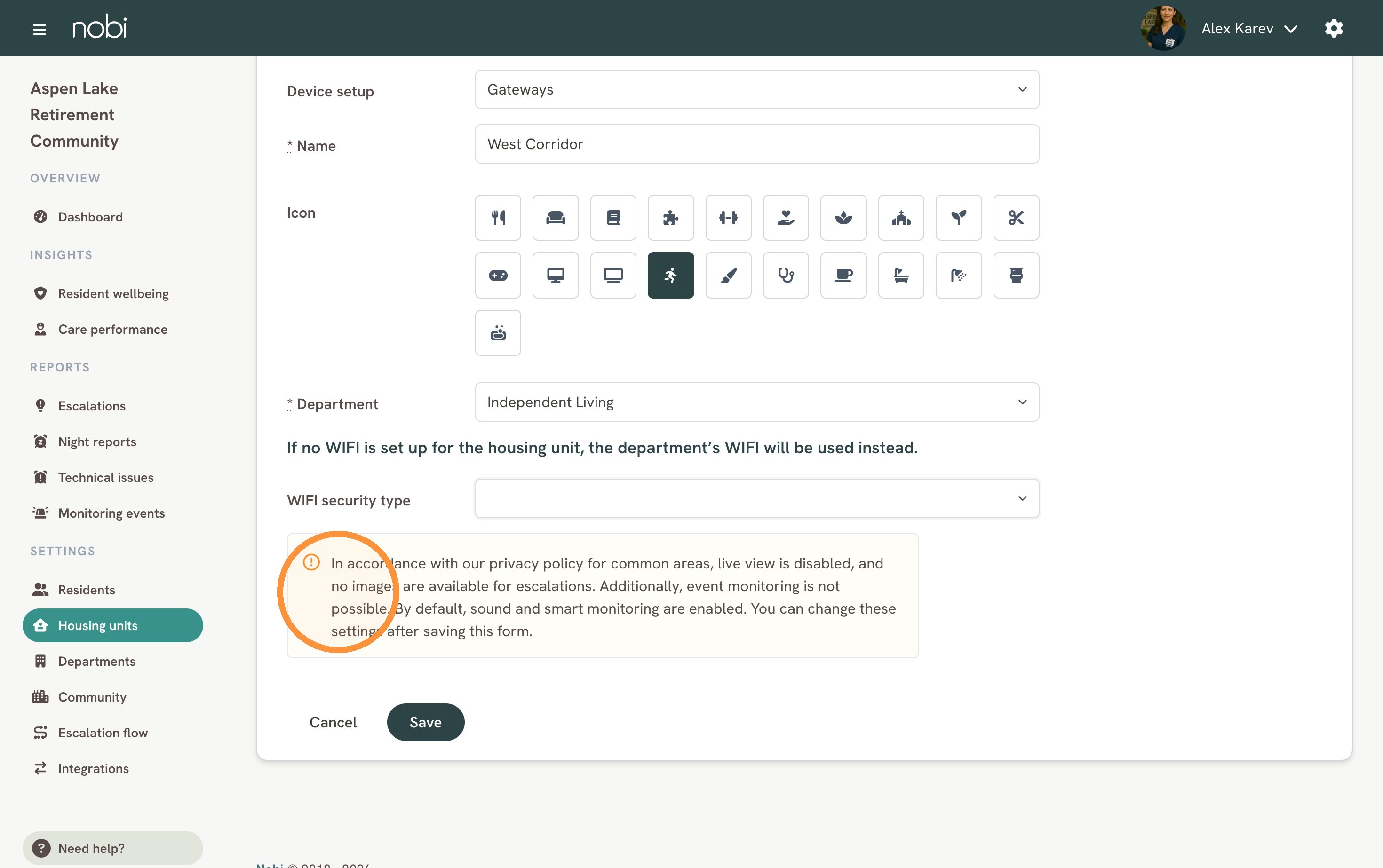

- Read the yellow box. It explains that live view is disabled, no images are available in escalations, and monitoring events are not possible in common areas. Sound and smart monitoring are enabled by default and can be changed later.

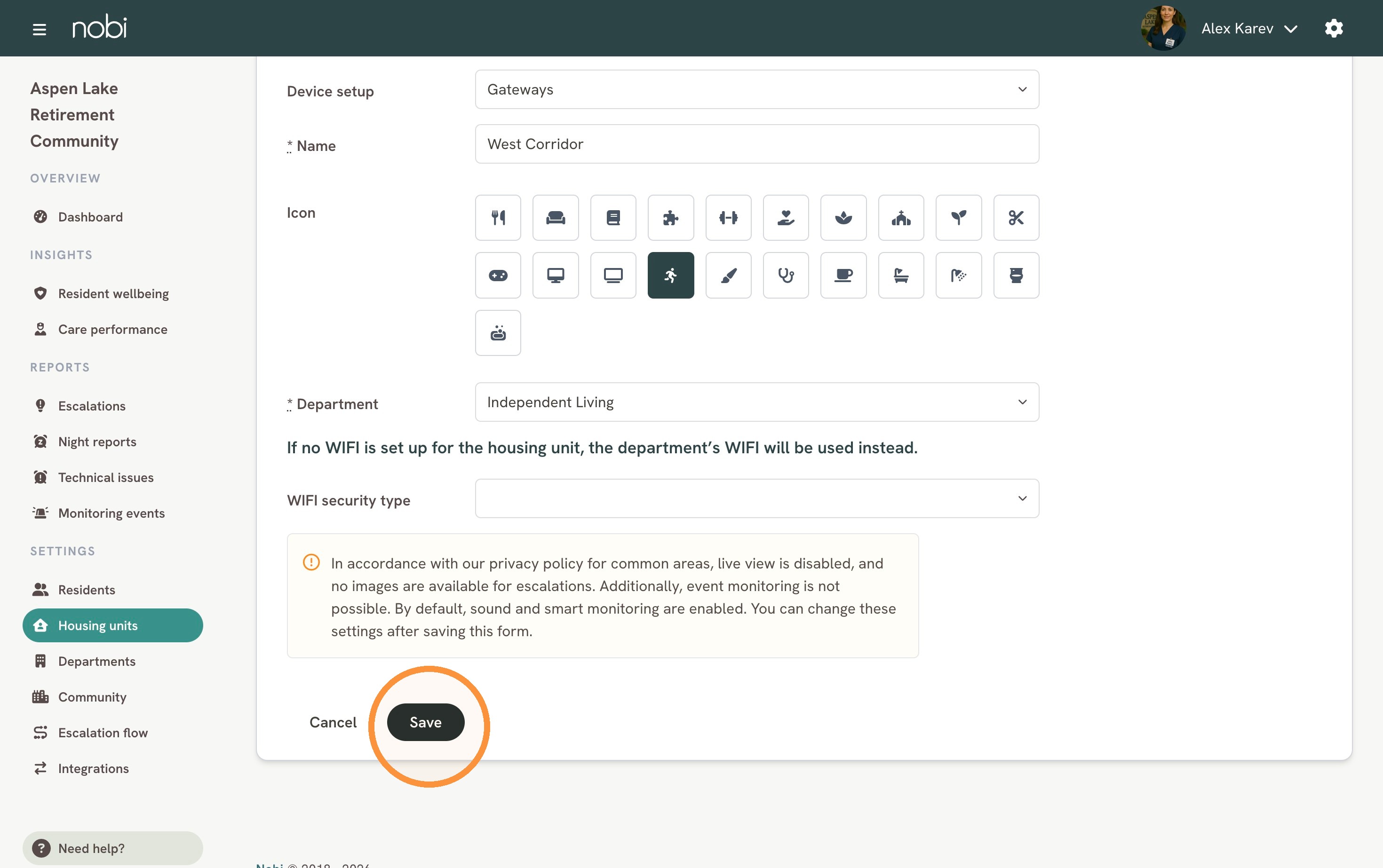

- Click Save.

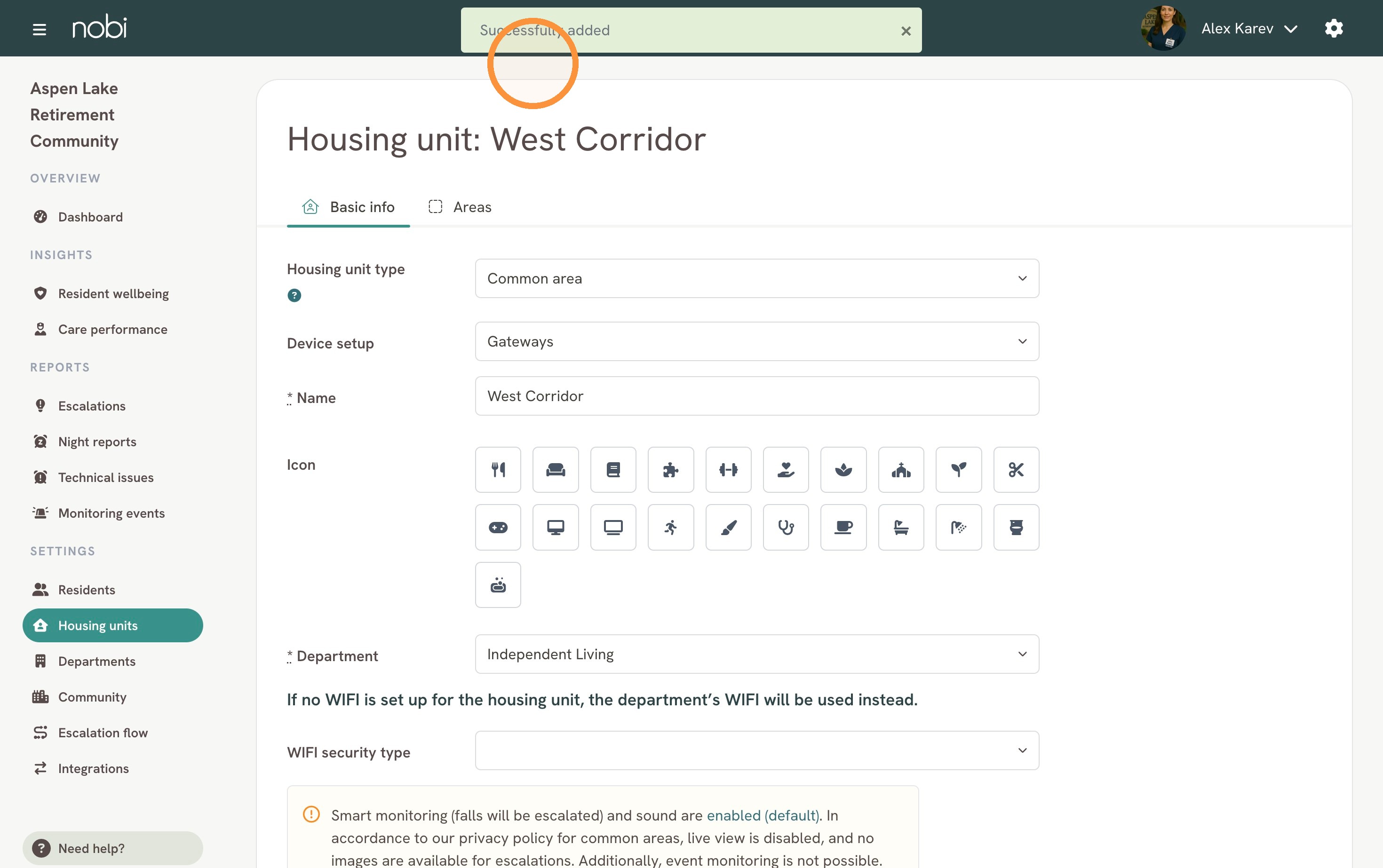

- A green banner will appear at the top of the page, confirming the housing unit was added.
You have now created a Common Area housing unit configured for Nobi Gateways.
For Nobi lights, now you can add a light to a room, and configure smart monitoring and sound settings for common areas.
For Gateways, now you can onboard a Nobi Gateway into an Area. To learn more about what the Gateway does, read our discover article about the Nobi Gateway.
Still have questions? Contact Nobi Support.
