How to Pair the Wearable Call Button
Learn how to assign a wearable call button to a resident.
2 min task
What
The wearable call button is a small, portable button. A resident can carry it or wear it on the body by putting it inside a wristband or pendant. When the resident presses the button, a call request is sent through the nearest Nobi light.
Why
Pairing the wearable call button allows residents to call for help from anywhere nearby a Nobi light.
Because the call can go through any Nobi light:
Residents can ask for help in shared spaces.
Residents can ask for help in another housing unit.
Residents can ask for help on behalf of someone else.
This reduces confusion during incidents.
It also improves safety for residents who move around the care home.Detailed steps

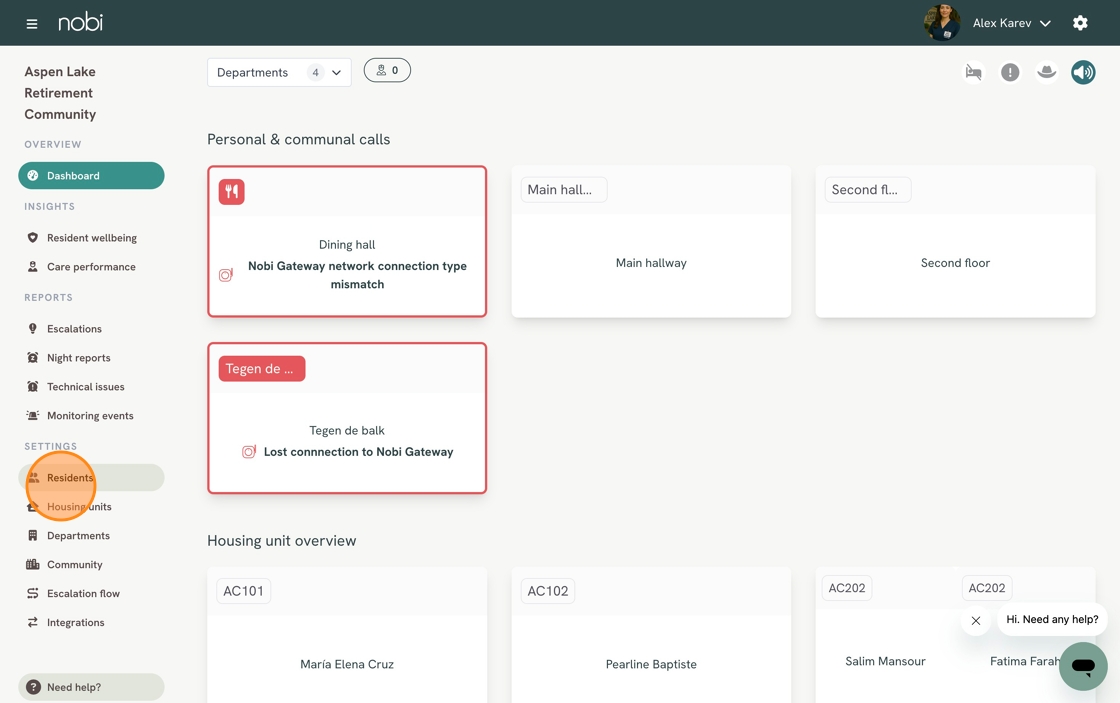

- Navigate to the Residents overview.

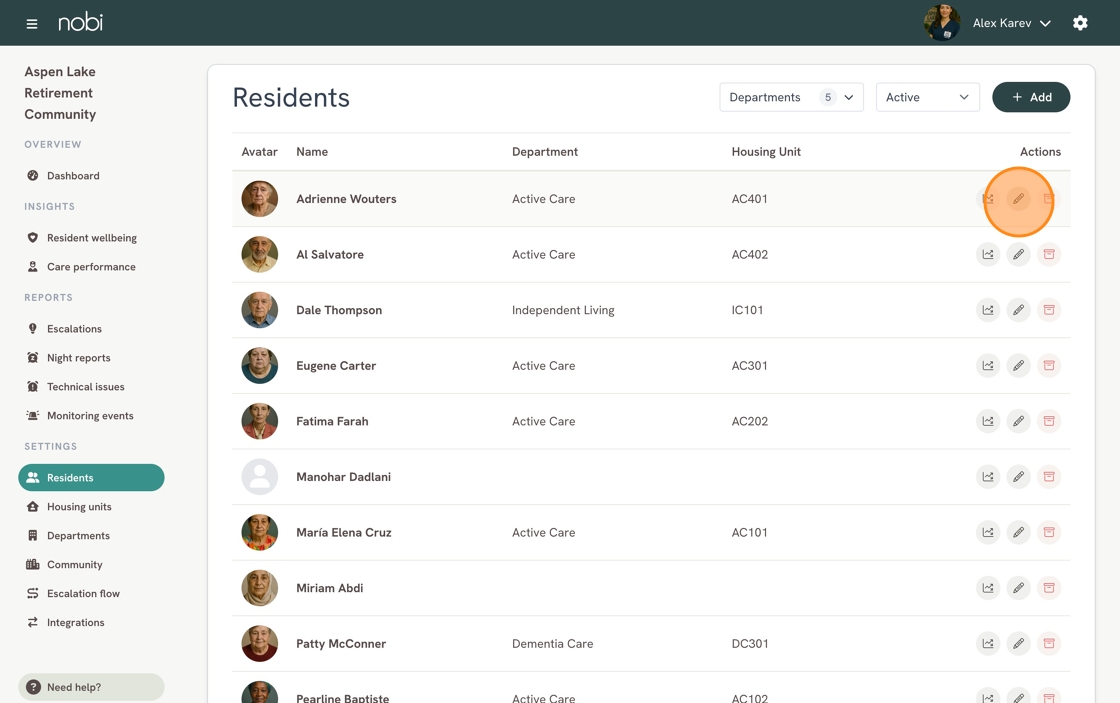

- Click Edit next to the resident you want to assign the pedant.

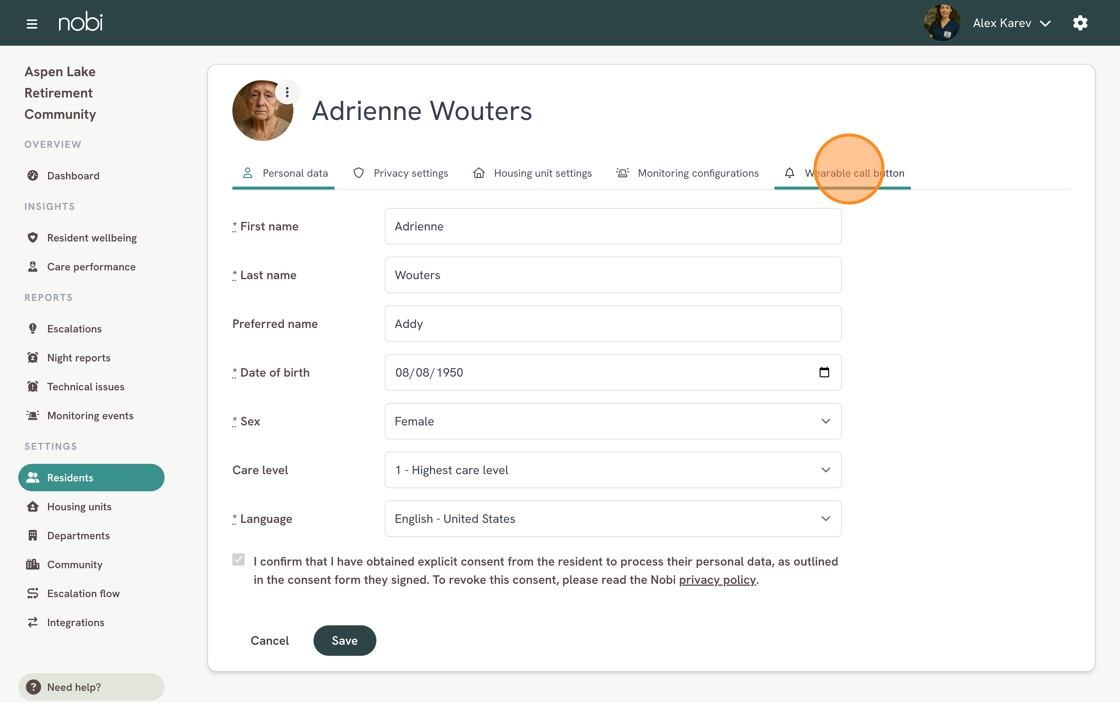

- Navigate to the Wearable Call Button tab.

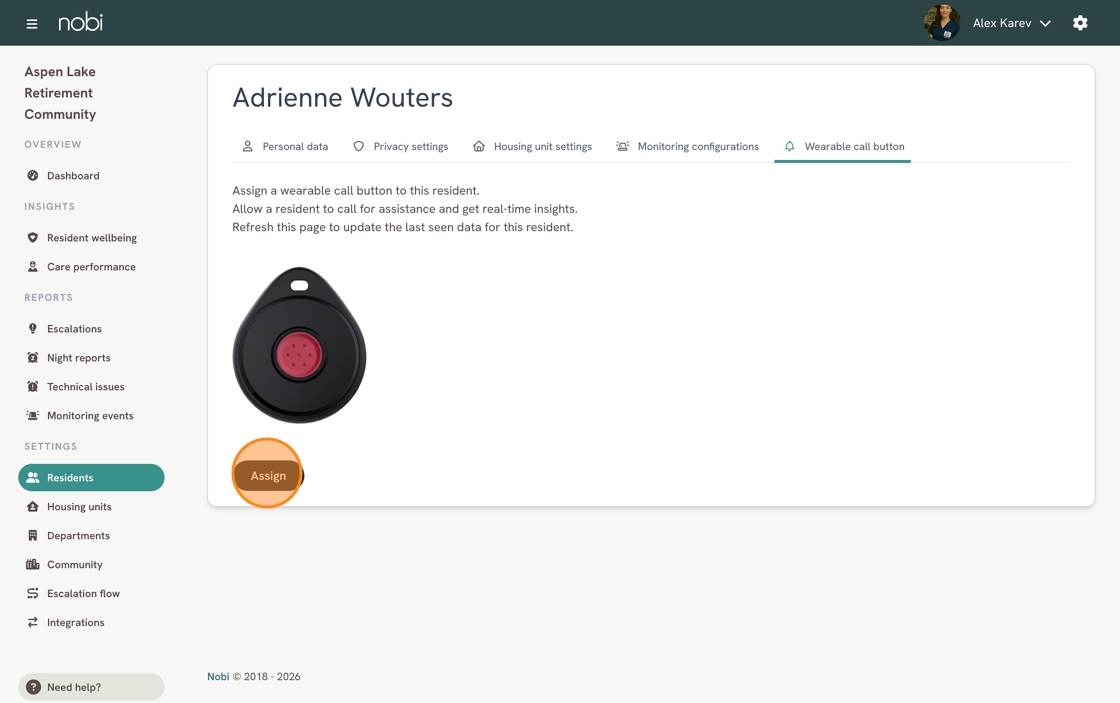

Don't see the tab? Contact Nobi Support. - Click Assign.

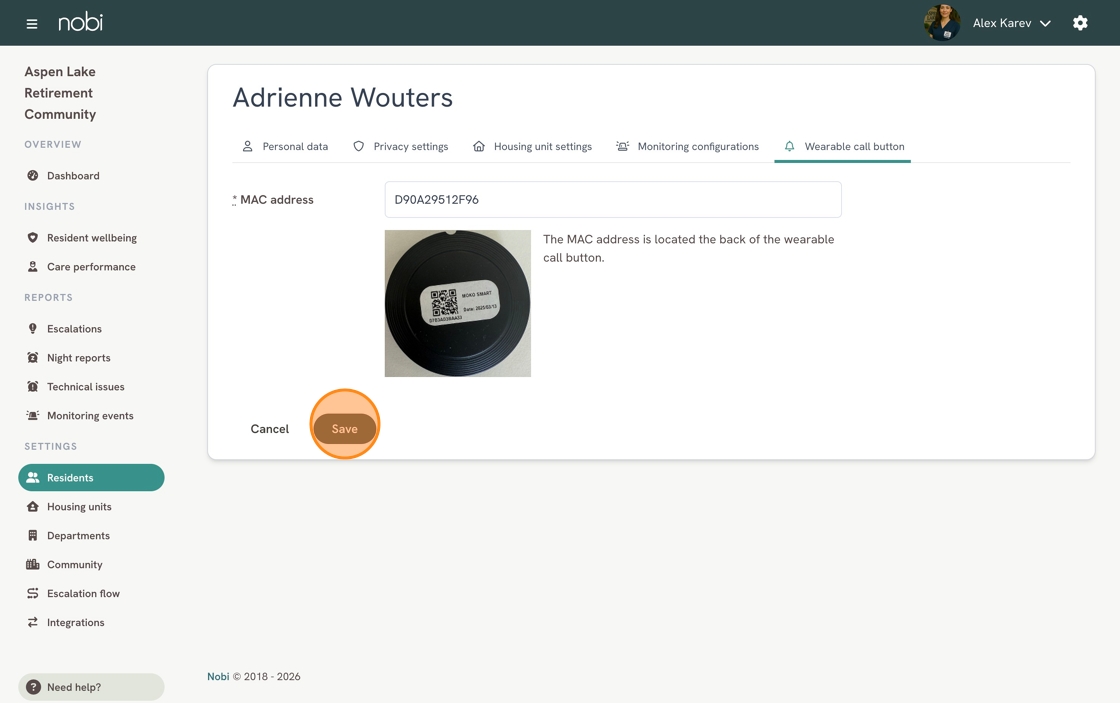

- Enter the MAC address located on the back of the badge and click Save.

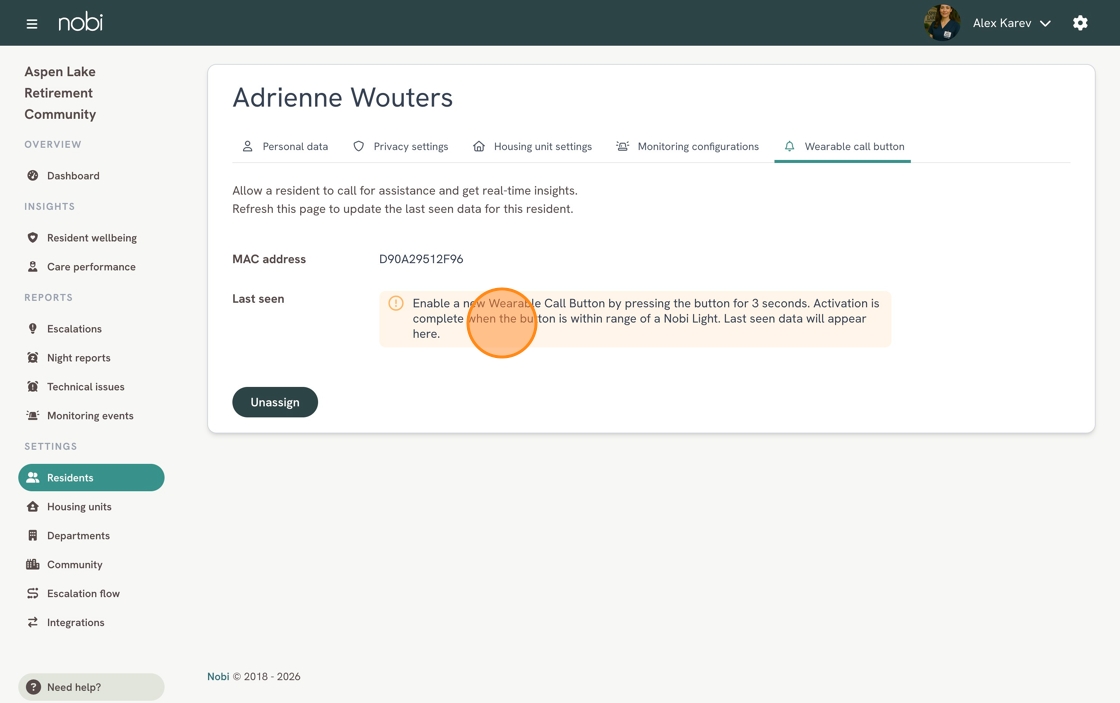

- To activate a new badge, you will need to press and hold the button the badge for 5 seconds, or until you hear a beep and light blinking on the device.

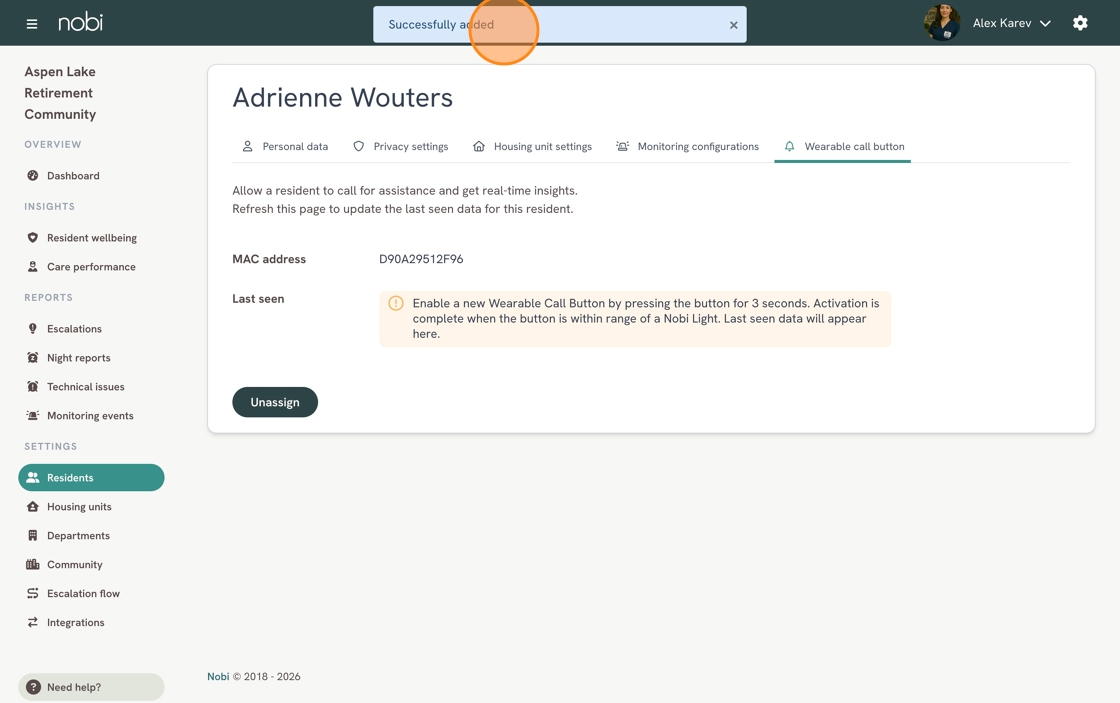

- You will now be able to see the recently paired button it in the Wearable Call Button tab.
You have now paired the wearable call button to the resident.
For more information on the wearable call button read our discover article here.
To learn about maintaining the wearable call button, click here.
-
How to Install the Nobi Button
In this guide you will learn how to install the Nobi Button (self-powered).
1 min task
What
The self-powered Nobi button has many uses when paired with the Nobi Smart Light. It lets you control the Nobi light just like a traditional wall switch, send a call request, snooze Nobi's fall detection, or close an open escalation with just one press.
Why
Installing the Nobi Button (self-powered) is quick and easy, and allows you to place the button wherever you find the most effective. No wiring or no tools are necessary.
Detailed steps
- Remove the adhesive backing from the physical button.
- Apply it to any wall or surface within reach.
That's it! The Nobi button is now installed.
To learn about the various uses of the Nobi Button (self-powered), check out our discover page here.
For information on maintaining the Nobi Button, click here.
Still need help? Contact Nobi Support.
-
How to Install the Bluetooth Door Lock
Install your Bluetooth door lock safely and correctly, using the right method for your door cylinder.
15 min task
What
The Bluetooth door lock is mounted on the inside of your existing door lock. You don’t need to replace your lock or drill holes. Based on your lock cylinder, you’ll either use a clamp or an adhesive mounting plate.
Why
The Bluetooth door lock helps residents enter and exit independently, while keeping their housing unit secure. A correct installation ensures the lock functions reliably, without damaging the existing cylinder. Choosing the right mounting option also ensures stability, especially with frequent use.
Detailed steps
First, check the overhang of your door cylinder on the inside.
If the cylinder extends at least 3 mm past the door surface: use the clamp-on mounting plate (Version A).
If the cylinder is flush or has less than 3 mm overhang: use the stick-on mounting plate (Version B).
Installation with clamp-on mounting plate
Use this method if your cylinder has 3 mm or more overhang on the inside.
- Take mounting plate A from the packaging
- Screw-fix the mounting plate to the cylinder with the supplied wrench
Please fix the screws carefully and without great physical effort to avoid damaging the cylinder. - Put your key into the lock
- Attach your Smart Lock to the mounting plate
Installation with stick-on mounting plate
Use this method if your cylinder has less than 3 mm overhang on the inside.
- The cylinder has less than 3mm overhang: Take mounting plate B from the packaging
- Peel off the protective backing and stick the mounting plate to your door
- Put your key into the lock
- Attach your Smart Lock to the mounting plate
You have now installed your Bluetooth door lock
To discover how the Bluetooth door lock works with Nobi, click here.
For information on how to pair the Bluetooth door lock with Nobi, visit our guide here.
For maintenance information regarding the Bluetooth door lock, consult our guide here.
Still need help? Contact Nobi Support.
-
How to Install and Pair the Wired Switching Interface as a Switch
Learn how to wire and pair the wired switching interface (mains) module to control the Nobi light using an existing wall switch.
7 min task
What
A wired switching interface is a smart module powered by the electrical grid. It lets you use a regular wall switch to control the Nobi light without cutting off its power supply.
For a detailed description of other peripherals, go to our Types of peripherals page.
Why
Installing and pairing a wired switching interface module ensures that the connected wall switch can operate the Nobi light without changing how the switch is used. Unlike the relay version, this device is wired into the building’s electrical system.
It gives residents or care staff a reliable and familiar way to use the Nobi light while maintaining full smart functionality. It must be paired via the Nobi app to function correctly.
Pair via the Nobi mobile app
Once installed, pairing the wired switching interface is done through the Nobi mobile app. Pairing is easy. Just follow the wizard to complete the connection. The button should be physically near the light during the process.
Adding a peripheral to a Jack & Jill Housing unit? Please refer to our Jack & Jill page.
Pairing the wired switching interface relay instead? Consult the guide for pairing it here.
Detailed steps
Follow the step-by-step instructions in the video below for pairing and installing the wired switching interface as a switch.
Still have questions? Contact Nobi Support.
-
How to Place Nobi for Optimal Performance
Learn where to install Nobi and Nobita lights for complete room coverage and accurate detection.
5 minute task
What
Nobi lights are designed for bedrooms, living areas, and other common areas. Nobita lights are made for bathrooms, withstanding high humidity and temperature. Together, they ensure every part of a resident’s unit is monitored.
Why
Correct placement of the Nobi(ta) Smart Lights ensures full coverage of the resident’s living space, avoiding blind spots and ensuring timely fall detection. Bedrooms, for example, need clear coverage of the bed for accurate in/out-of-bed detection, for this a Nobi is needed. On the other hand, bathrooms are high-risk areas for falls, so Nobita placement there is essential. When all areas are covered, Nobi’s safety features work optimally, giving peace of mind to caregivers and residents.
Detailed steps
Follow these steps to place each Nobi and Nobita correctly for maximum coverage and reliability.
Before installation, confirm the Nobi in the resident's living space and the Nobita in the bathroom have overlapping or adjacent coverage areas, leaving no blind spots between rooms.
Using floor plans can be a helpful tool when it comes to confirm all areas — including ensuite bathrooms — are within detection range.
For best results, position each light so its sensors have a clear, unobstructed view of the key activity areas. Avoid placing lights behind beams, tall furniture, or decorative fixtures.
Bedroom
Identify the bed’s location on the floor plan.
Install the Nobi light on the ceiling above the main walking space, ensuring the bed is fully visible in the coverage area. For optimal performance and safety, it is recommended to install the Nobi Smart Light at a sensor height (=height of the black dot on the light) ranging between 6.89 feet and 7.55 feet. This installation height ensures that Nobi’s artificial intelligence operates at its best.
Avoid placing the light directly above wardrobes, large furniture, or areas blocked by room dividers.
Bathroom (ensuite or separate)
Select the Nobita light model for bathrooms.
Install it on the ceiling, covering the shower, toilet, and sink areas. For optimal performance and safety, it is recommended to install the Nobi Smart Light at a sensor height (=height of the black dot on the light) ranging between 6.89 feet and 7.55 feet. This installation height ensures that Nobi’s artificial intelligence operates at its best.
Position it away from direct water spray but within full view of the main floor space.
For for information on installation and configuration, visit the Nobi Client Portal here.
For information on the different types and generations of Nobi and Nobita lights, visit our page here.
Still have questions? Contact Nobi Support.
-
How to Add Peripherals
In this article, we'll walk you through how to add peripherals.
4 min task
What
Nobi allows for different devices to be connected to the light. We call these peripherals. These peripherals simplify the way you work and/or allow for more insights to be gathered. In order to use these peripherals, they need to be connected via bluetooth to a light within a housing unit. Some peripherals are applicable to an individual light, while others apply to the entire housing unit.
For a detailed description of the different sorts of peripherals, go to our Types of peripherals page.
Why
It's important to connect each peripheral to the right light to make sure they work well together. This helps the light know exactly which device to communicate with.
Adding peripherals
Setting up peripherals with Nobi is easy thanks to a wizard that guides you from selecting the appropriate peripheral to pairing it with the light.
Adding a peripheral to a Jack & Jill Housing unit? Please refer to our Jack & Jill page.
Detailed steps
Pairing peripherals
Let’s add a new peripheral to a light. Since the connection is made via bluetooth, make sure to keep the peripheral near the light you want it to connect to. In this example, we’ll connect a Nobi button to the light, which will be used as a snooze button. Do this on the Nobi app on a mobile device as this works best.
Click here to jump to removing a peripheral.- Go to Housing units in the left menu.
- Navigate to the housing unit where you want to add a peripheral and click edit.
- Go to the tab Peripherals.
- Click on the + add.
- A wizard will open which takes you through 3 steps:
- Peripherals type: choose the desired function and the type of the peripheral.
- Choose the function you want the peripheral to have. Let’s choose for Snooze alarm/Close escalation.
- Choose the type of peripheral. We want to connect the Nobi kinetic button which is self-powered.
- You will now have the option to choose the product you want. In this case there is only one option and so it’s already selected.
- Click next when you’re done. Click next to go to the next step in the wizard.
- Link to a room: Choose the room within the housing unit which is the closest to the peripheral you want to add. The light of this light will flash when you click on the room in the app. Click next to go to the last step.
- Nobi will now provide the instructions to pair the peripheral.
- Now follow the instructions on the screen.
- When pairing (and calibrating) is successful, you will return to the peripherals tab with the new peripheral added to the view. At the top of the screen, Nobi will display that the pairing is successfully completed.
You have now successfully added a peripheral to the light.
Still have questions? Contact Nobi Support.
- Go to Housing units in the left menu.
-
How to Add a Light to a Room
In this article, you will learn what a “room” is in Nobi, how to set one up, and how to link a light to that room.
10 min task
What
In Nobi, a "room" refers to a specific space within a housing unit. For example, a housing unit may include a bedroom, a living room, and a bathroom—each of these is considered a separate "room" in the Nobi system.
A Nobi light must be linked to a room to function properly. Setting up rooms within a housing unit helps keep your system organized and ensures that each light is correctly identified and managed.
Why
In the Nobi application, every light is paired with a room. You only need to create a room if you plan to add a light to it.
The setup process uses Bluetooth, so we strongly recommend completing this setup via the Nobi App on a mobile device. It is essential to be physically present in the room where the light is installed to ensure a proper Bluetooth connection.
Detailed steps
To create a room and add a light, follow the detailed steps below.
Before you begin you will need the following:
A mobile device with bluetooth enabled
The Nobi Mobile App
a WIFI connection
a user with role of manager or technician
a site / community with at least one department and one housing unit
an installed Nobi or Nobita light
- From the home screen, press the three lines in the top left corner of the Nobi Mobile App to access the navigation menu.
- Press Housing units.
- Choose the housing you wish to add a room and light to by pressing Edit.
- Navigate to the Rooms tab.
- Press the + ADD to add a new room and light.
- Select the room type from the dropdown menu and optionally give the room an identifying name. For more information on room types and their consequences, click here.
- Press ✔ Link the light.
- Press Start link.
- Choose the Nobi light you wish to add. Typically, if standing directly under the light, it will be the available light with the strongest bluetooth signal.
- The light will begin to pair.
- Nobi will then verify that the light is successfully connected with an audio message and a green banner on the app.
You have now successfully created a room and added a light to that room. The light will be in Setup mode.
Still have questions? Contact Nobi Support.
