In this article, we'll walk you through how to pair the Nobi Pull Cord with a Nobi Smart Light to trigger a call request when pulled.
4 min task
What
The Nobi Pull Cord is a self-powered device that connects to the Nobi Smart Light via Bluetooth. When pulled, it sends an immediate alert to care staff—just like a call button.
For a detailed description of other peripherals, go to our Types of peripherals page.
Why
Some residents find it hard to press a button, especially in stressful moments. A pull cord is easier to reach and activate, even while standing. Because it’s self-powered, it’s always ready—no batteries, no charging, no maintenance.
Once the Nobi Pull Cord is placed on the wall, pairing it to the right Nobi light is crucial. You do this in the Nobi app. The light must be nearby during pairing.
Pair via the Nobi mobile app
Pairing the Nobi Pull Cord is done through the Nobi application. Pairing is easy. Just follow the wizard to complete the connection. The button should be physically near the light during the process.
Adding a peripheral to a Jack & Jill Housing unit? Please refer to our Jack & Jill page.
Detailed steps
Follow the steps below to pair the pull cord with Nobi Smart Light.
- Go to Housing units in the left menu.

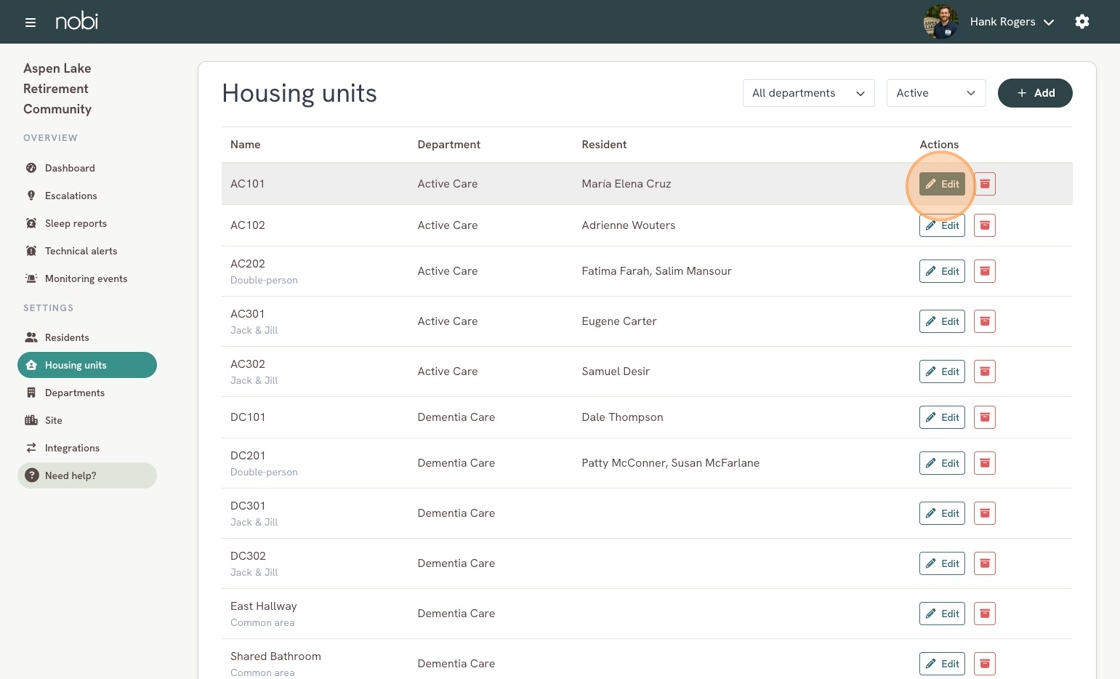

- Navigate to the housing unit where you want to add a peripheral and click edit.

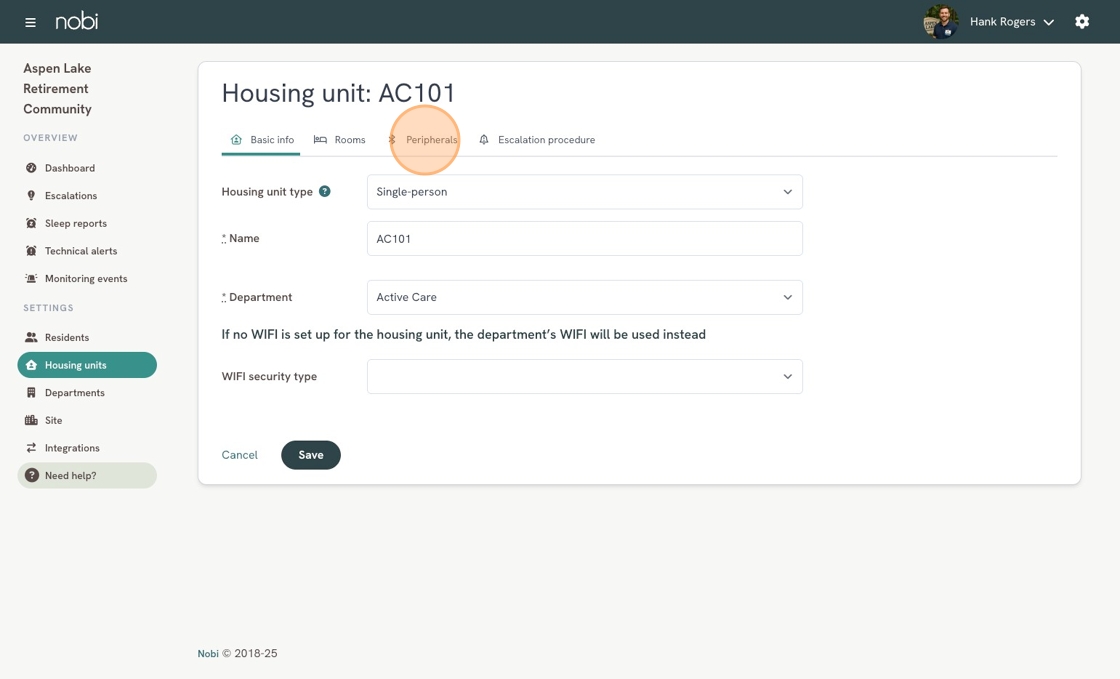

- Go to the tab Peripherals.

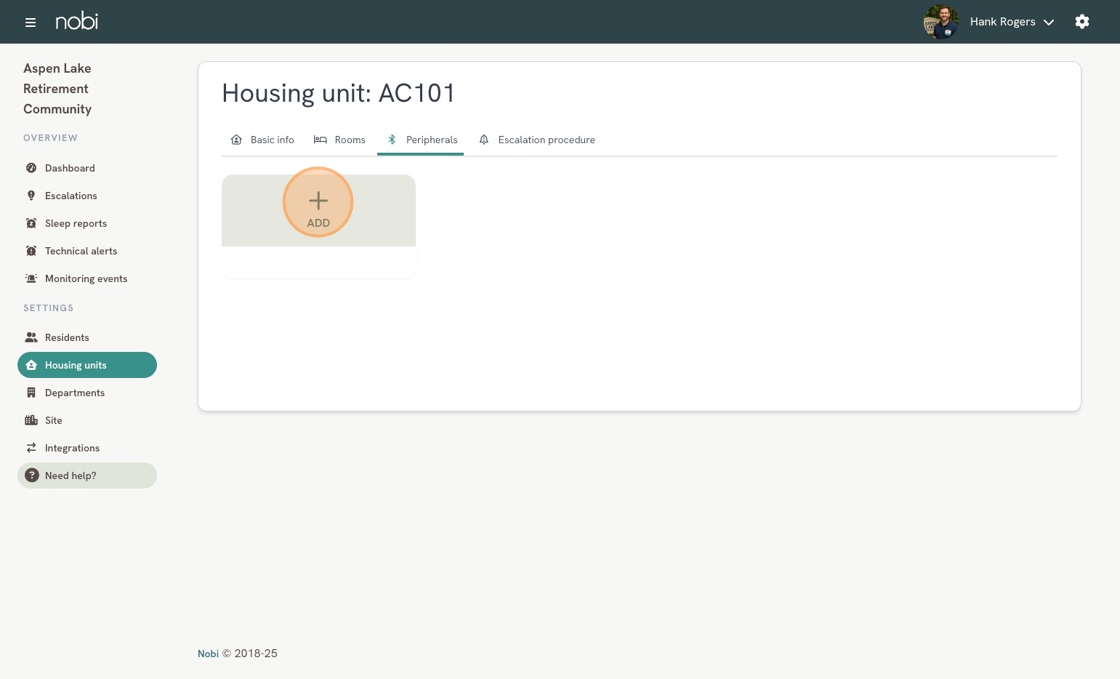

- Click on the + Add.
- A wizard will open which takes you through the following steps:

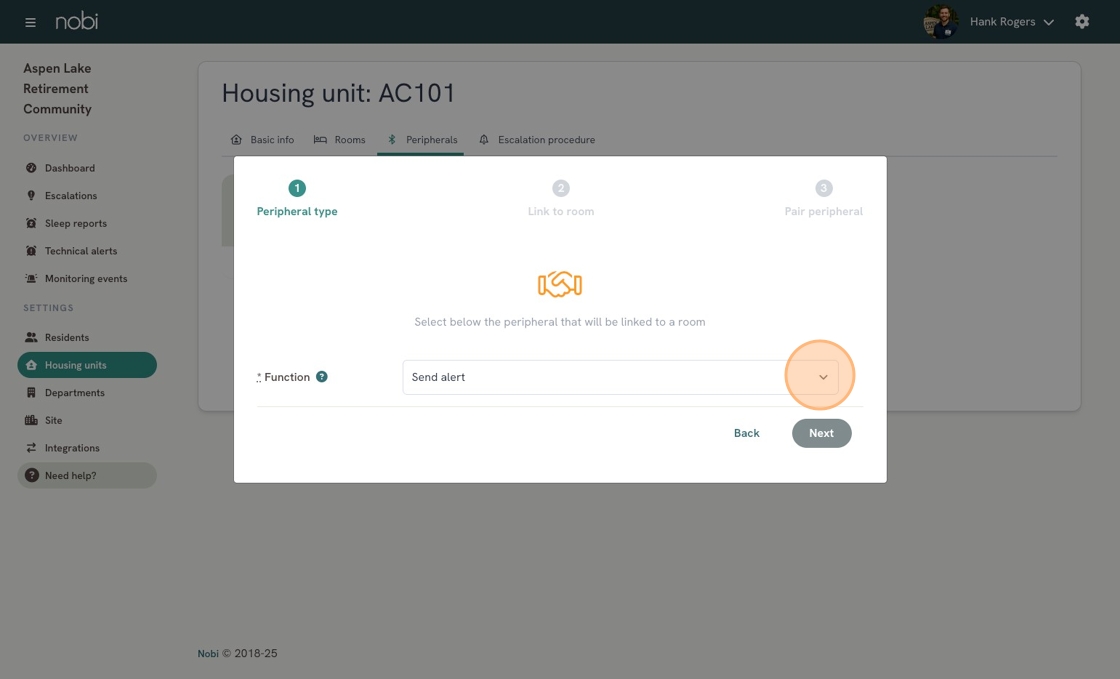

- Choose the function you want the peripheral to have. To pair the Nobi Pull Cord (self-powered), choose Send alert.

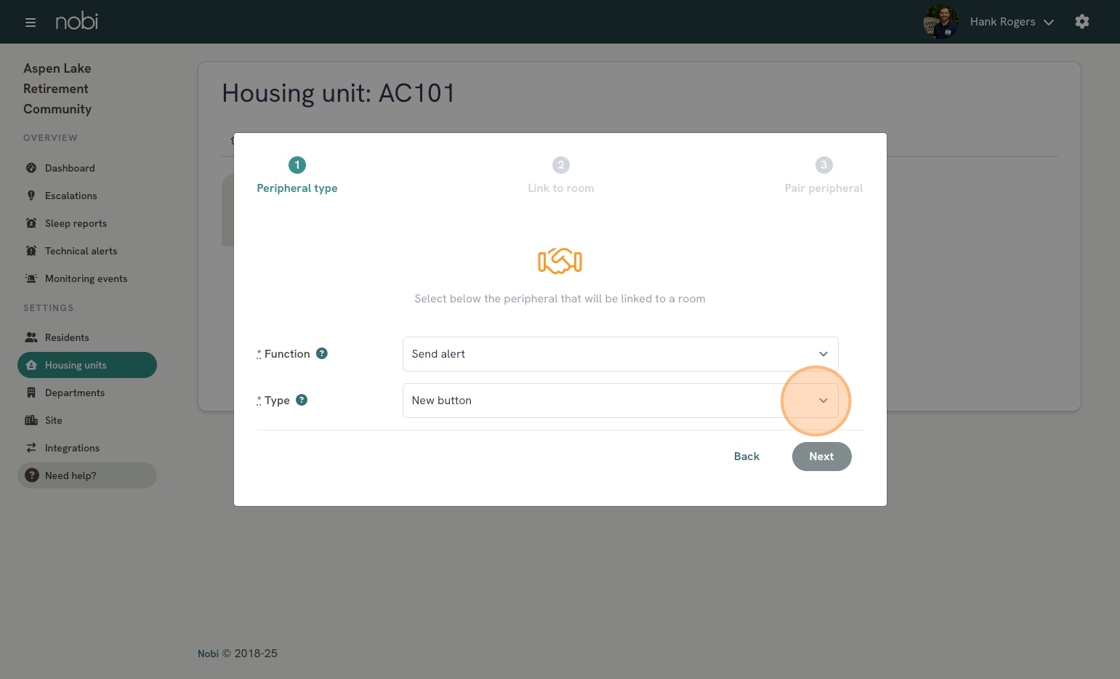

- Choose the type. For the Nobi Pull Cord (self-powered) choose New button.

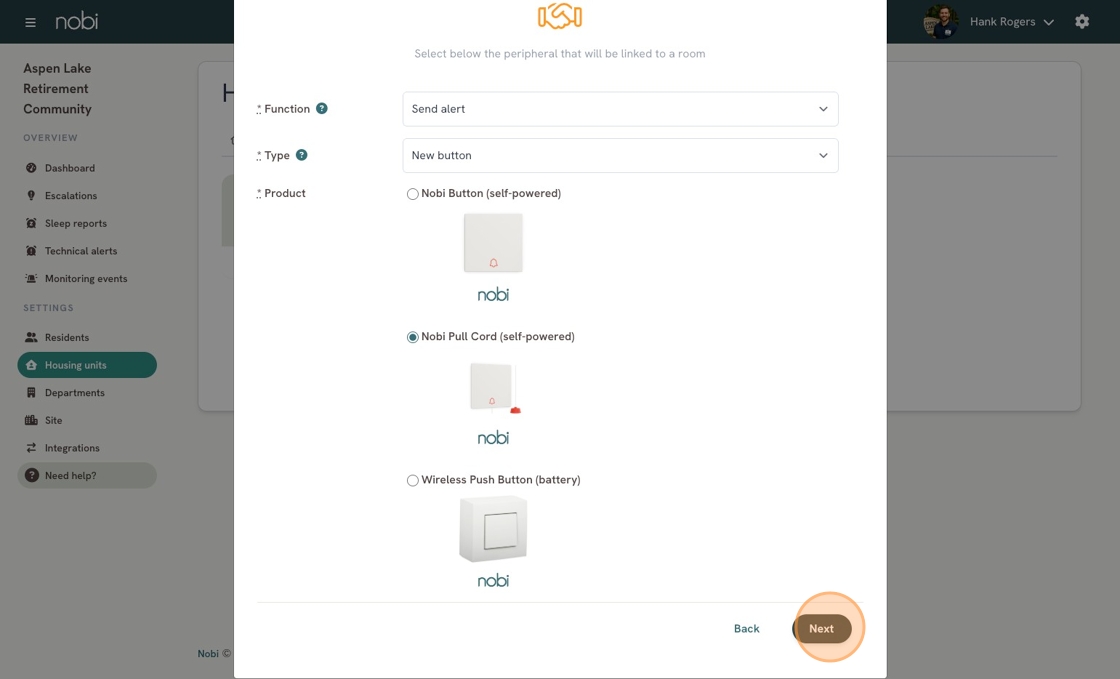

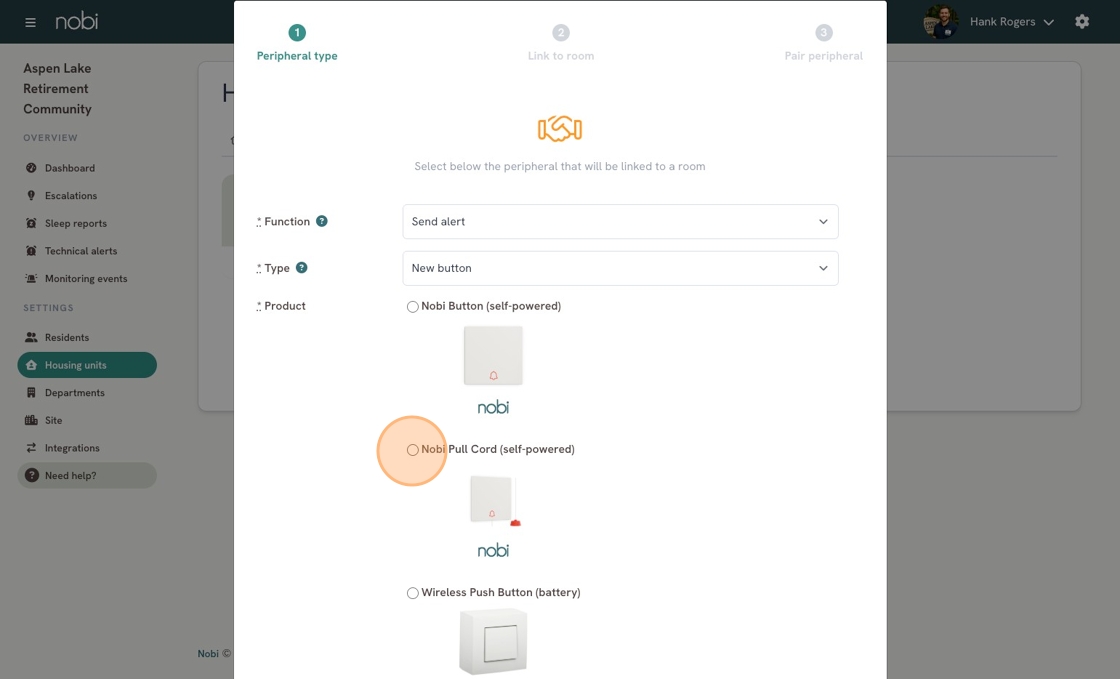

- You will now have the option to choose the product you want. In this case choose Nobi Pull Cord (self-powered).
- Click Next to go to the next step in the wizard.

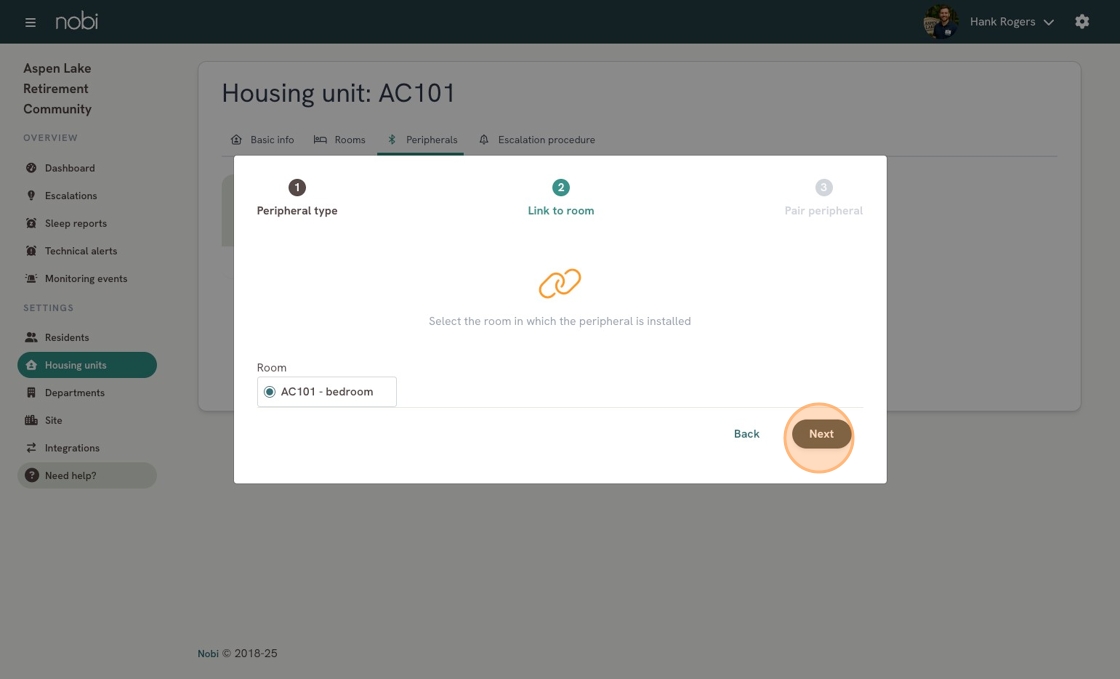

- Link to a room: Choose the room within the housing unit which is the closest to the peripheral you want to add. The light will flash when you click on the room in the app. Click Next to go to the last step.

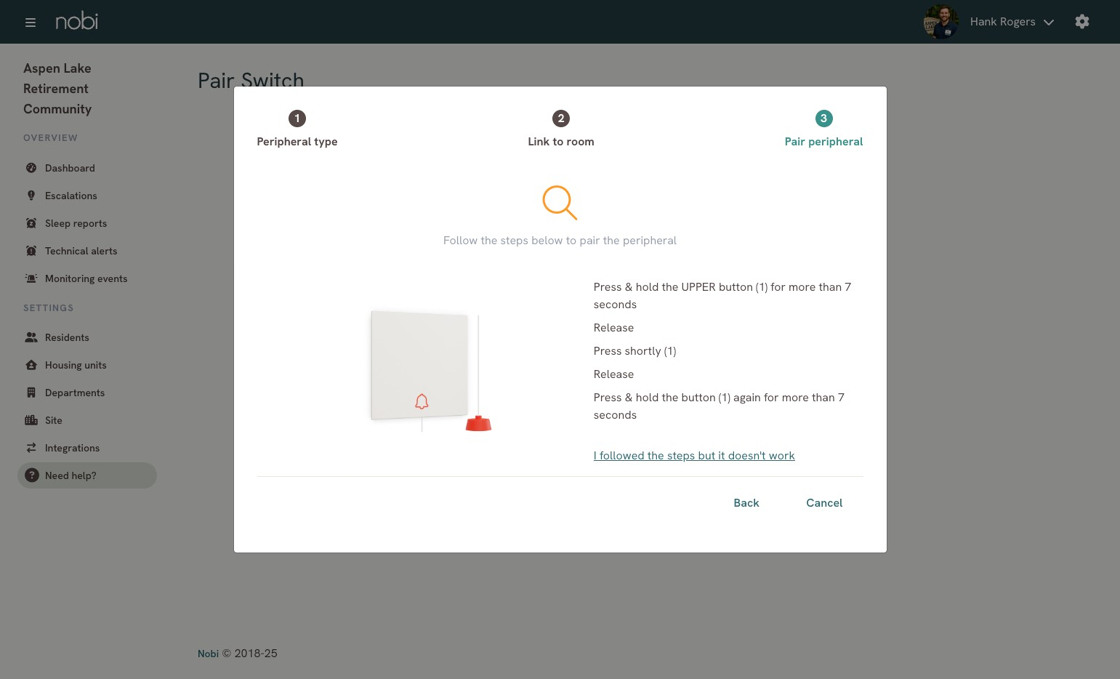

- Nobi will now provide the instructions to pair the peripheral. Follow the instructions on the screen.
- When pairing (and calibrating) is successful, you will return to the peripherals tab with the new peripheral added to the view. At the top of the screen, Nobi will display that the pairing is successfully completed.
You have now successfully paired the Nobi Pull Cord to Nobi.
Still have questions? Contact Nobi Support.
